PR120H
MECHANICAL MAINTENANCE
Version: 5
Page: 7 of 24
Date: 2022.12.13
3.
PROCEDURE FOR CHANGING HYDRAULIC RETURN OIL FILTER ON PR120H
During this operation it’s important to activate the emergency stop button!
Procedure step by step
1. Dismount the 4 screws [1] from the return oil filter housing [3].
2. Remove the housing top plate [2].
3. Take out the return oil filter cartridge and replace it with a new one. Be careful not to make any damage
while replacing it into the housing.
4. Reassemble by placing the housing top plate [2] on top of the return oil filter housing [3].
5. Mount the 4 screws [1] again tightening evenly and firmly.
BEFORE STARTING PRODUCTION THE HYDRAULIC STATION SHOULD BE CHECKED IN SINGLE MODE!

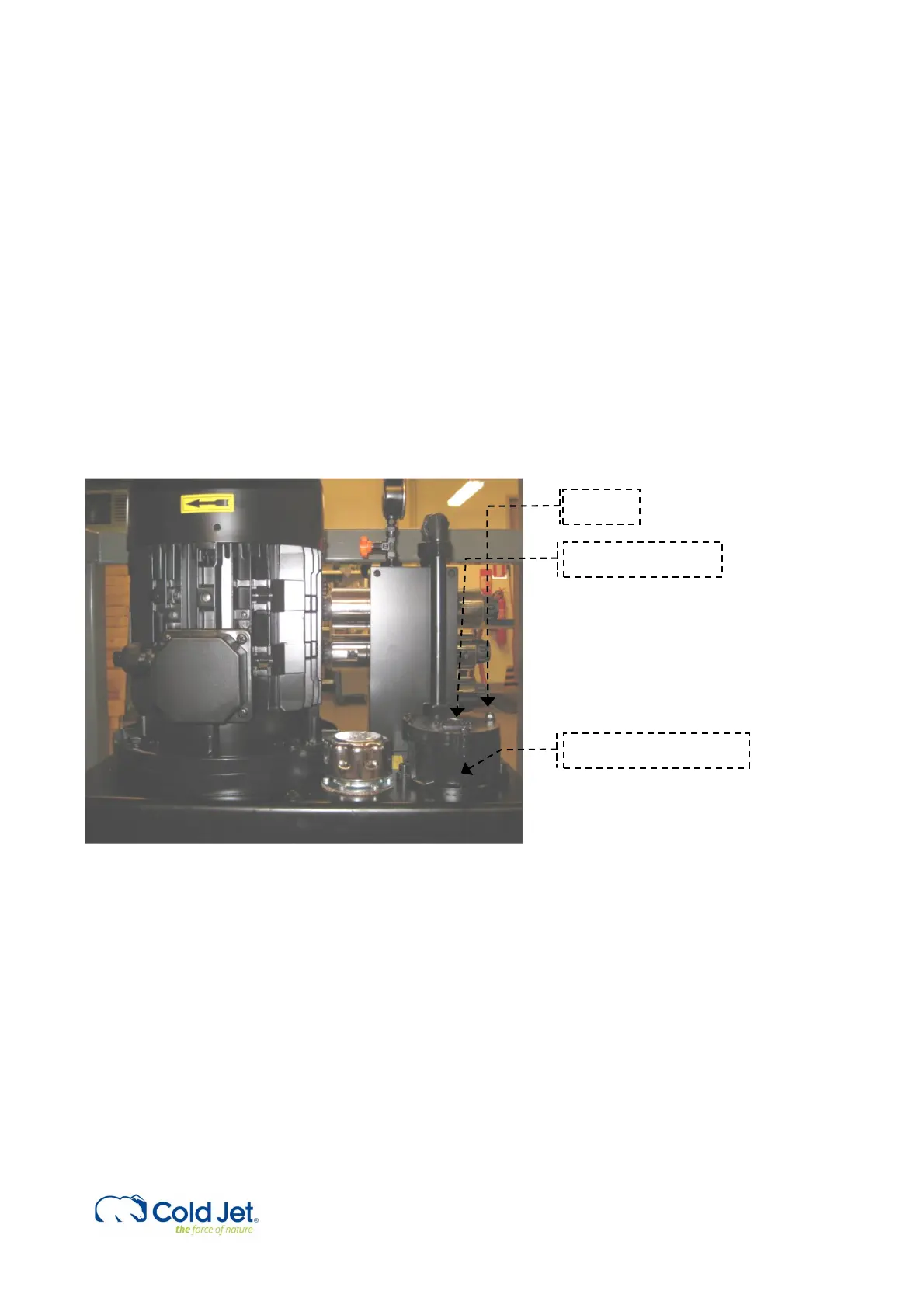

1. Screw
2. Housing top plate
3. Return oil filter housing
