Transporting & Lifting
Always transport the machine in the upright position using a forklift. Pick up the machine from
the side with the forks fully engaged and adjusted to the maximum width (refer to "Figure 1:
Transporting and Lifting the Machine.").
Forklift Requirements PR120H PR350H PR750H
Load Capacity 1000 kg (2205 lb) 1500 kg (3307 lb) 2000 kg (4409 lb)
Fork Length (Minimum) 0.8 m (31.5 in) 1.0 m (39.4 in) 1.5 m (59.1 in)
Always use lifting eyes to lift the machine (refer to "Figure 1: Transporting and Lifting the
Machine."). The weights and dimensions of the machine are described in the following table:
Weights and Dimensions PR120H PR350H PR750H
Shipping Weight Transport
(Includes Pallet/Crate)
685 kg (1510 lb) 1410 kg (3109 lb) 1700 kg (3748 lb)
Shipping Crate Dimensions (LxWxH)
1250 x 850 x 2080 mm
(49.2 x 33.5 x 81.9 in)
1610 x 1610 x 2180 mm
(63.4 x 63.4 x 85.8 in)
1620 x 1620 x 2370mm
(63.8 x 63.8 x 93.3 in)
Machine Weight
(Includes Hydraulic Oil)
704 kg (1552 lb) 1515 kg (3340 lb) 1822 kg (4017 lb)
Machine Dimensions (LxWxH)
1150 x 650 x 1738 mm
(45.3 x 25.6 x 68.4 in)
1500 x 1000 x 1800 mm
(59 x 39 x 71 in)
1500 x 1500 x 1800 mm
(59 x 59 x 71 in)

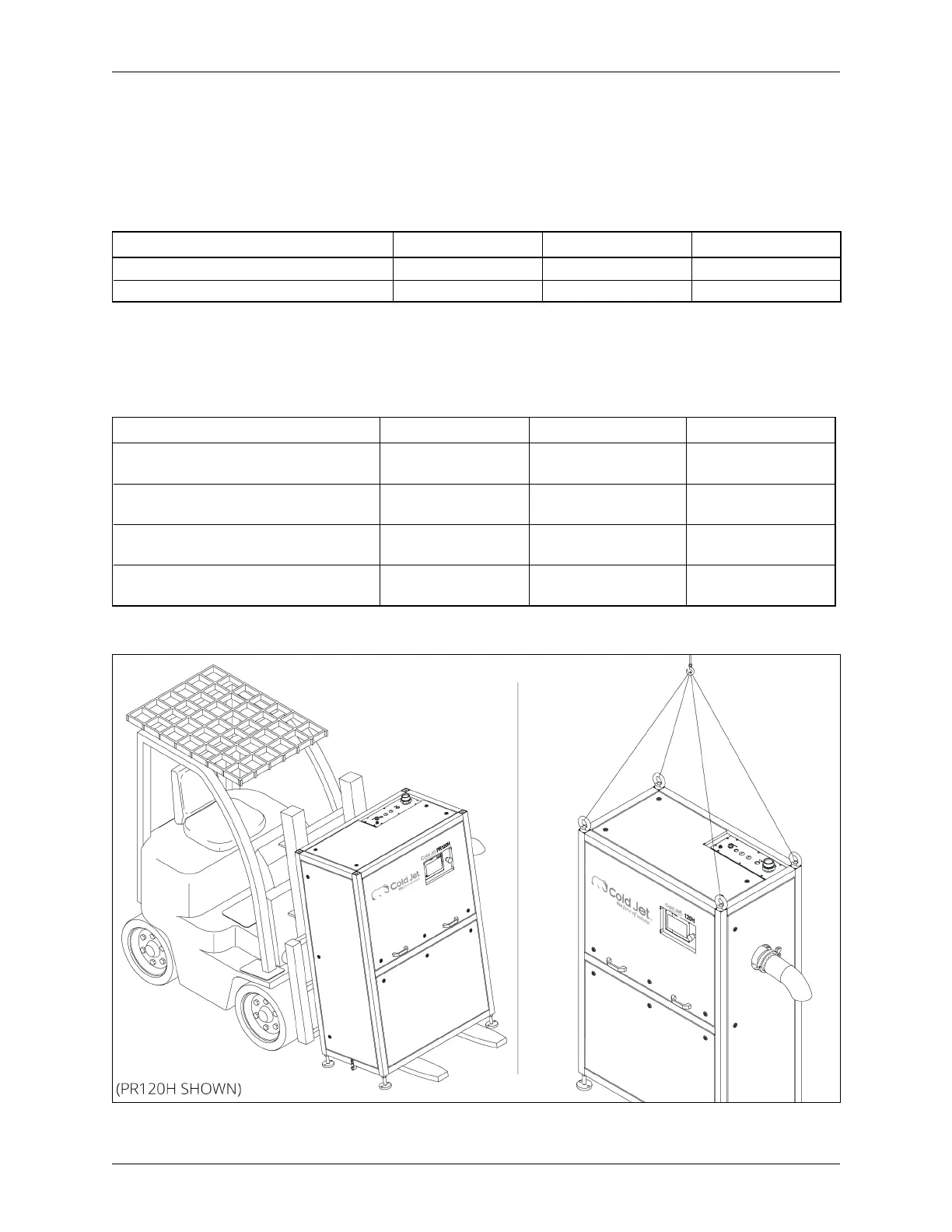

Figure 1: Transporting and Lifting the Machine.
