6) Finally, insert the beater/auger into the freezer cylinder.
Holding the beater/auger horizontally, slide it straight into the
cylinder until it can go no further.
IMPORTANT: Before installing the beater/auger, make certain
the beater lip seal is in place and the idler is properly installed.
Rotate the beater/auger until you feel the drive shaft engage and
push the beater/auger further back to properly seat.
B) ASSEMBLING THE DISPENSING HEAD

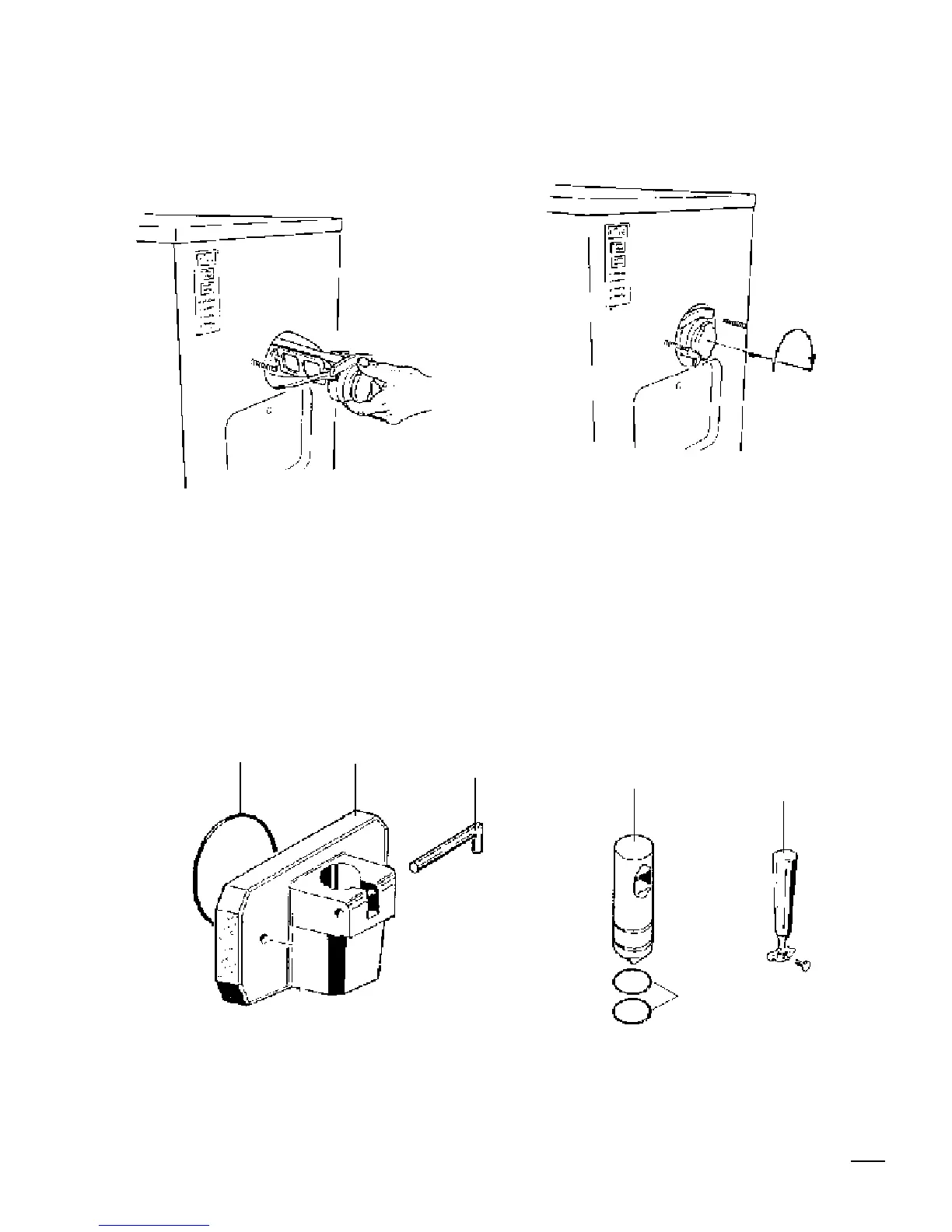

1) Begin by gathering the parts necessary to assemble the
dispensing head. These parts include: A) one (1), 4" diameter
O-ring, B) the dispensing head body, C) two (2), 1
3
/
8"
diameter end piston O-rings, D) one (1) piston, E) handle
retaining rod, F) one (1) dispense handle.
A
B
E
D
C
F
