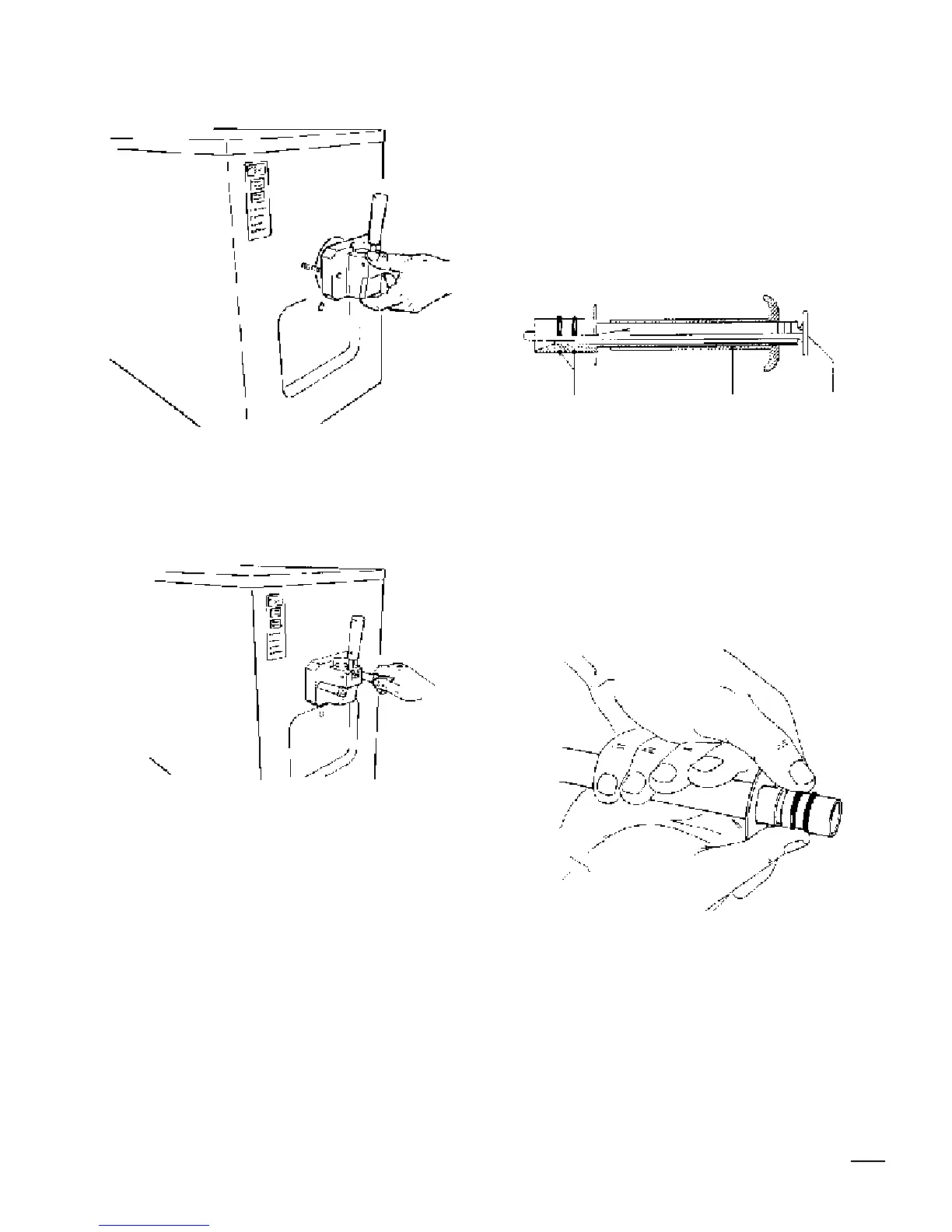

6) Affix the dispensing head to the machine and fasten it onto
thetwo mounting studs.
7) Fasten the dispense head to the machine using the two (2)
stainless steel retaining knobs.
8) HAND TIGHTEN the knobs.
B
D
C) ASSEMBLING THE GRAVITY FEED
TUBES
1) Begin by gathering the parts needed to assemble the gravity
feed tube. These parts include: A) the SPLASH GUARD, B)
two (2) 3/4" diameter O-rings, C) the TUBE SLEEVE, and D)
the GRAVITY FEED TUBE.
2) Slide the two (2) 3/4" O-rings onto the bottom of the gravity
feed tube until they drop in the O-rings grooves.
C
A
