A. Filter Skimmer/Weir Door: Removes floating
debris from the water surface, provides a water
return path to equipment, and houses water filter
element.
B. Topside Control Panel: Used to control temper-
ature setting, pump for jets, and light.
C. Air Controls: Increases or decreases air entering
the jets. Close during heating for maximum ef
fi-
ciency.
D. Comfort Collar™ Valve: Used to control water
flow to Comfort Collar jets. (Not applicable to all
Models.).
E.
Equipment Pack Service Panel (no user serv-
iceable parts): Spa support system consisting of
one or two pumps, heater, and associated electri-
cal controls (not shown).
F. Drain Access (Adjacent to the equipment
service panel): Spa drain faucets are located on
the kickplate.
G. Manufacturer’s Identification Label: Contains
identification information for warranty service
(serial number, model number, etc.) and electrical
information (ampere rating and ampere require-
ments). Located on the kickplate, on the same
side as the topside control.
H. Diverter Valve: Used to direct the flow of water
from jets to the open seating area jets in the spa.
(Not applicable to all Models.)

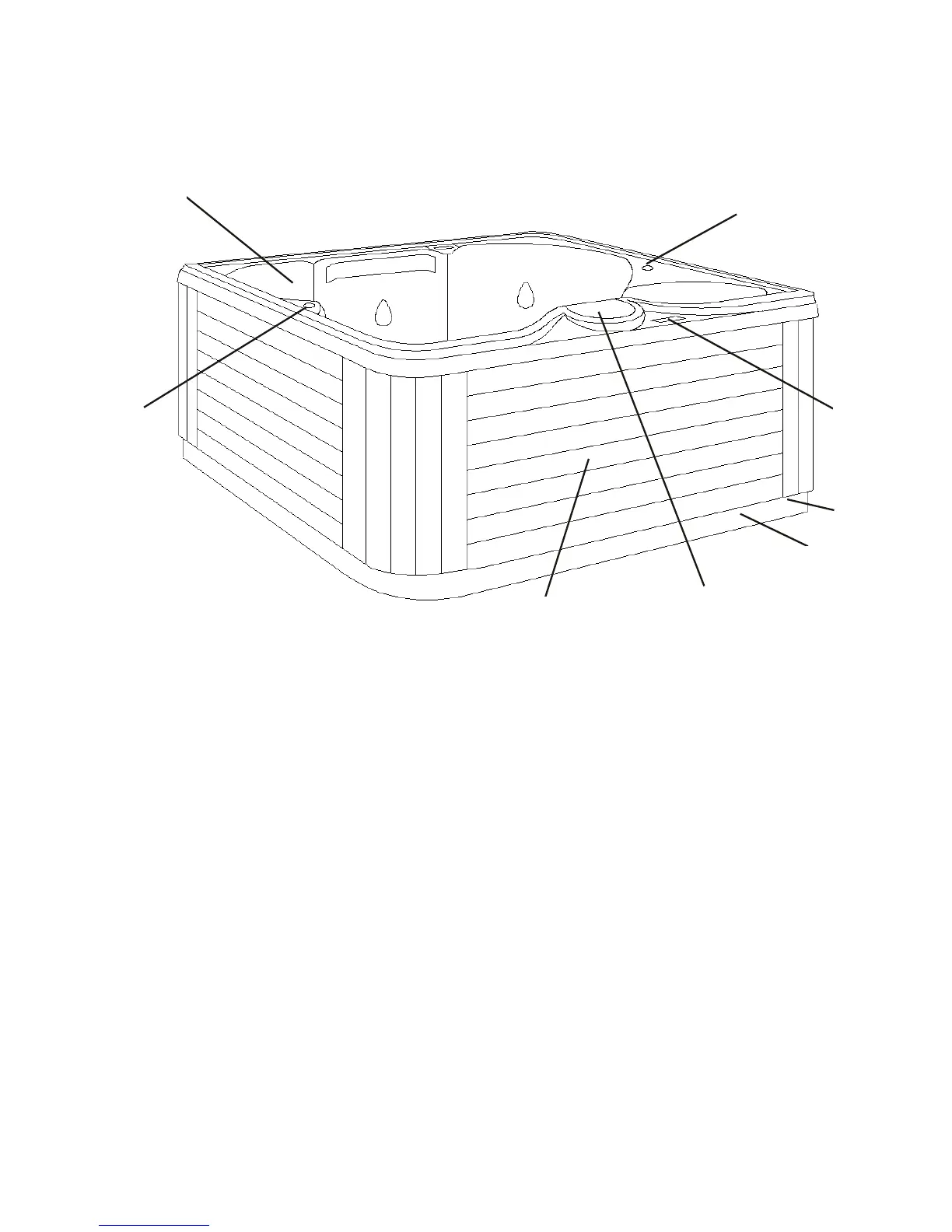

Spa System Components
D
F
G
C
B
E
A
H
