How to connect a goods scanner

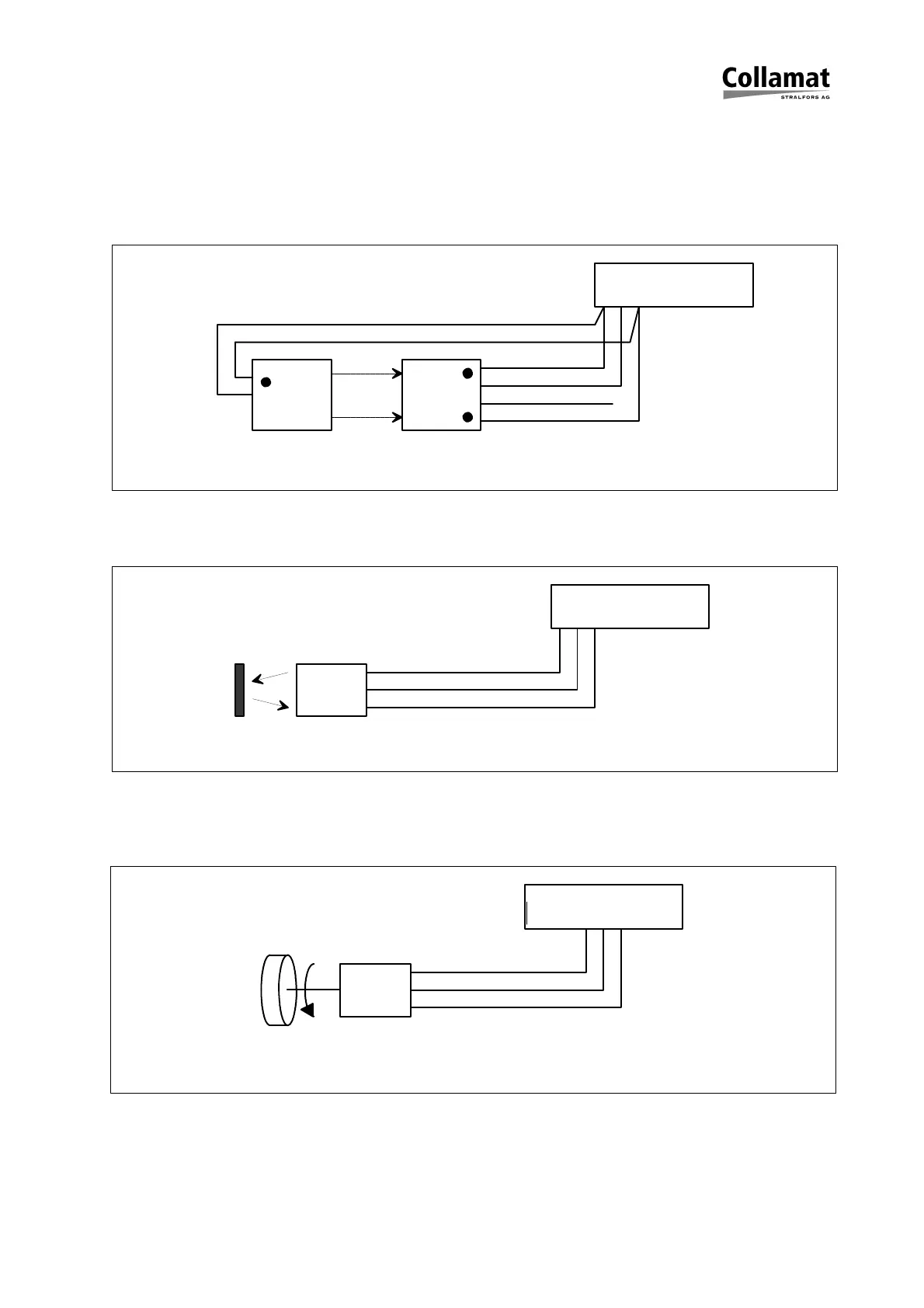

The goods scanners and incremental encoders are connected to the GSC1 and GSC2
connectors. Figure 11 shows the connection of the standard Collamat Stralfors AG
IR goods scanner:
Figure 11: Connection of the G & S IR goods scanner
Figure 12 shows the connection of a NPN-scanner:
Figure 12: Connection of a NPN-scanner
Figure 13 shows the connection of a NPN-incremental encoder:
Figure 13: Connection of a NPN-incremental encoder
IR
wht GSC1
yel
GSC2
brn GND
grn +12V
brn GND
grn
+12V
GND
GSC1
+12V
GND
LSC
TCY
+12V
GND
+12V
NPN
GSC1
GND
+12V
GND
GSC1
+12V
GND
LSC
TCY
+12V
GND
+12V
NPN
GSC2
GND
+12V
GSC3
+12V
GND
+12V
GND
IFD IFD
GSC2
NSTPI
