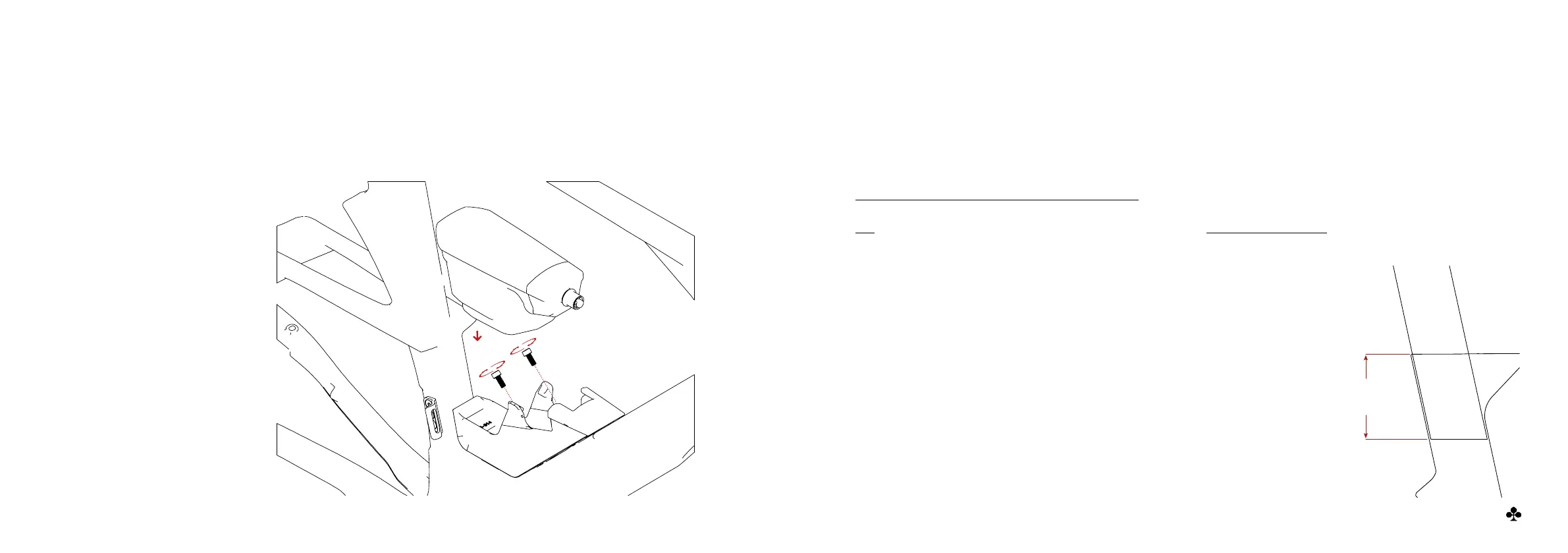

TT1 Aero water bottle installation
Put the custom Aero bottle cage in
its seat in the frame (N.7).
Fix it to the frame through screws
M5x12 (N.28). Recommended
torque 3 Nm.
Insert and remove the dedicated
TT1 water bottle (N.6) from the top.
1
2
3
(img 11)
18
Min 6.5cm
Max 14cm
Seatpost cut
Measure and mark the cut-off location on the seatpost, with a greased pencil
or with paper tape.
Insert the TT1 seatpost in specic saw guide so that the cut-off line that can
be clearly seen.
Using a blade designed specically for cutting carbon composite materials (or
a ne-tooth blade with greater than 32 teeth per inch); cut the seatpost along
the cut-off line.
Using ne grit sandpaper, carefully sand the cut end to remove any fraying or burring.
Proceed with the Seatpost assembly phase, as described in the dedicated section.
1
2
3
4
5
Frame insertion: Minimum 6.5 cm - Maximum 14 cm.
Not respecting this requirement may result in damage to the frame not covered by warranty policy, and/or serious injury to rider
