Max 12Nm
Max 5Nm
Max 2Nm
Preoload
13
12
Fork and basebar Installation
Before assembling the parts, check all the required components and make sure there are
no sharp or rough edges on any surfaces, which could cut or create damage. If any rough
edges are detected, repair the components itself (sharp edges removed) or replace it.
Lightly grease bearings and any threads.

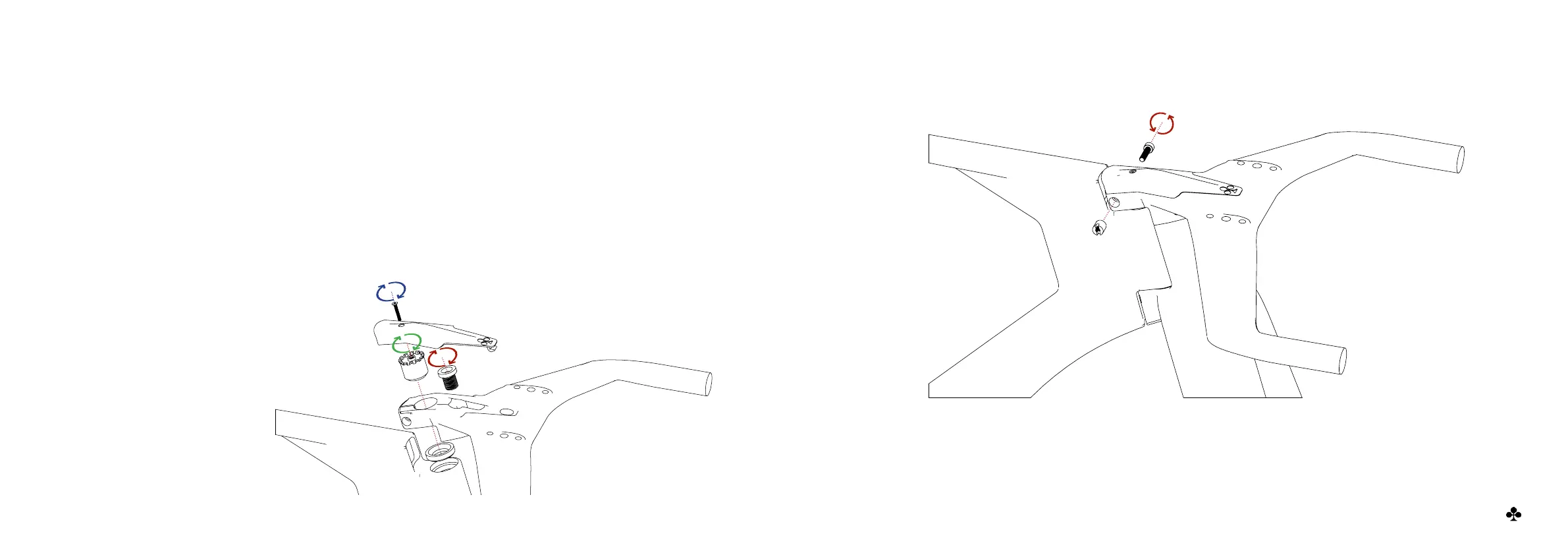

Insert upper and lower headset
bearings into the frame (N.11) in
their seats in the head tube.
Insert the steering tube of fork into
the head tube, through the lower
and upper bearings.
Insert the basebar into the steering
tube matching the shape of the fork
front plate.
Screw the drilled screw M12x16 (N.13) in the fork front plate hole. Recommended torque 12 Nm. Later, the front brake hose
should run inside the hole in the center of this screw.
Screw the Custom preload nut (N.12) till having smooth steering action without any play, using a standard Shimano
cassette wrench tool.
1
2
3
4
5
6
(img 5)*
(img 6)*
