Colnago TT1 Assembly Instructions

20
Max 6-7Nm
Max 12Nm

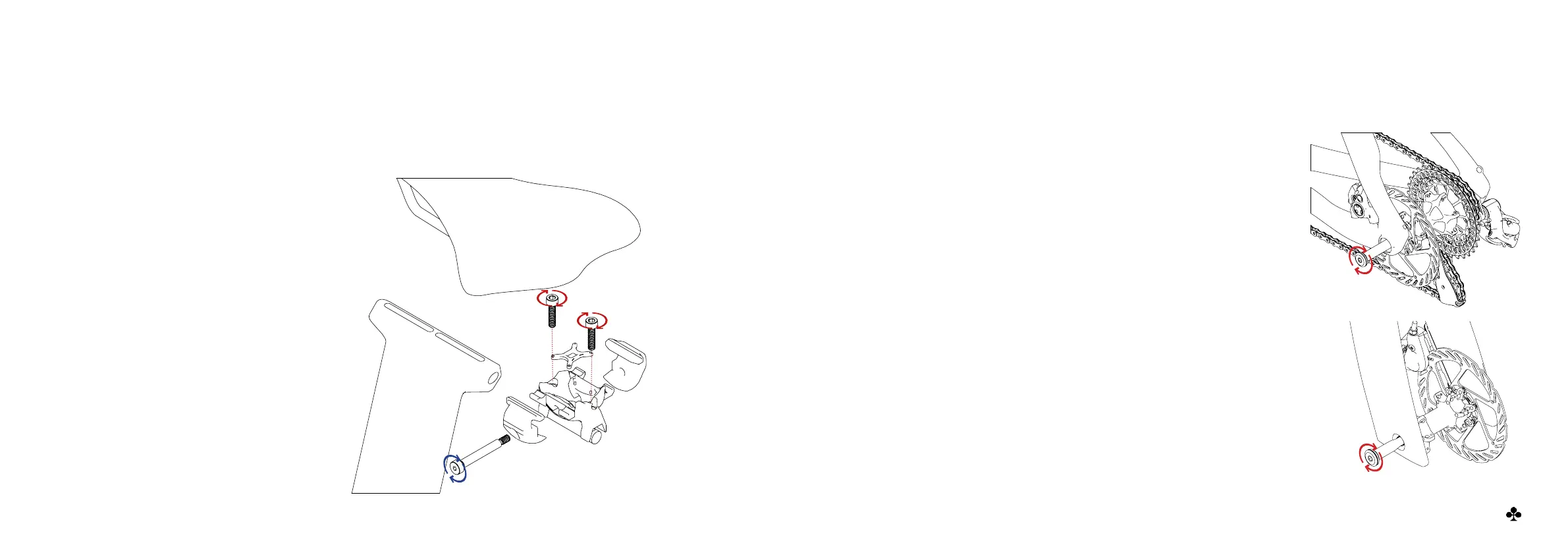

Seatpost head clamp mounting
Insert the cylindrical bracket from
the head clamp subassembly (N.8)
in its seat in the seatpost (N.3).
Fix the saddle mount to the
bracket using lightly greased M5
screws of the subassembly (N.8).
Recommended torque 6-7 Nm.
Install lightly greased M6 Rail Binder
Bolt of the subassembly (N.8).
Adjust the saddle position and clamp
the saddle rail between the Rail Binder.
Recommended torque 12 Nm.
1
2
3
4
(img 13)
21
Thru-axle installation
Lightly grease the axle and the axle thread.
Insert the axle through the drop out and the wheel hub (N.9 Rear axle, N.10
Front axle), aligning the threaded end of the axle with the threaded insert.
Once aligned and engaged, thread the axle (clockwise) into the threaded
component of the insert until the axle is secured tightly. Recommended torque
both front and rear axle 10 Nm.
1
2
3
10Nm
10Nm
NOTE: Please follow the instructions from the specic component manufacturer to set and adjust brakes or rear derailleur.
NOTE: An incorrect assembly of the thru-axle may result in an accident with potential serious injury or death to the rider.
Follow the procedure after any wheel dismounting
(img 14)

Colnago TT1 Specifications

General

Groupset	Shimano Dura-Ace Di2
Wheel Size	700c
Brakes	Shimano Dura-Ace
Stem	Colnago
Saddle	Prologo
