9
Framekit Preparation

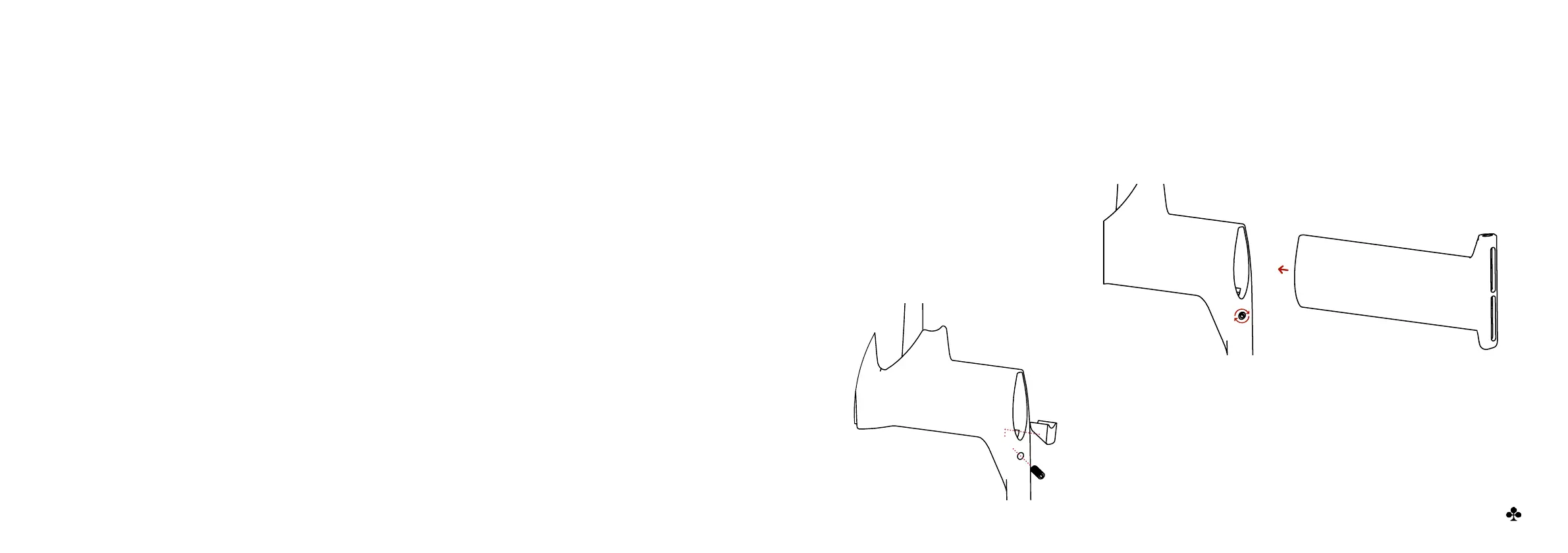

Lay the Titanium Seatpost wedge (N.23) in its seat in the seat tube and screw a few
threads of the M8x16 endless screw (N.24).
(img 1)
Insert the seatpost in the top tube.
Adjust height and torque to 8 Nm maximum.
(img 2)
Note: Hold the frame and bicycle through a secured seatpost only. Clamping the top tube may cause damage and void the frame warranty.
Apply carbon compound both
to the inner face of the seat
tube and to the seatpost (N.3).
Gently hold the frame with the top
tube in vertical position and the
headset pointing to the floor.
3
4
5
1
2
Seatpost installation
(img 1)
(img 2)
Max 8Nm
