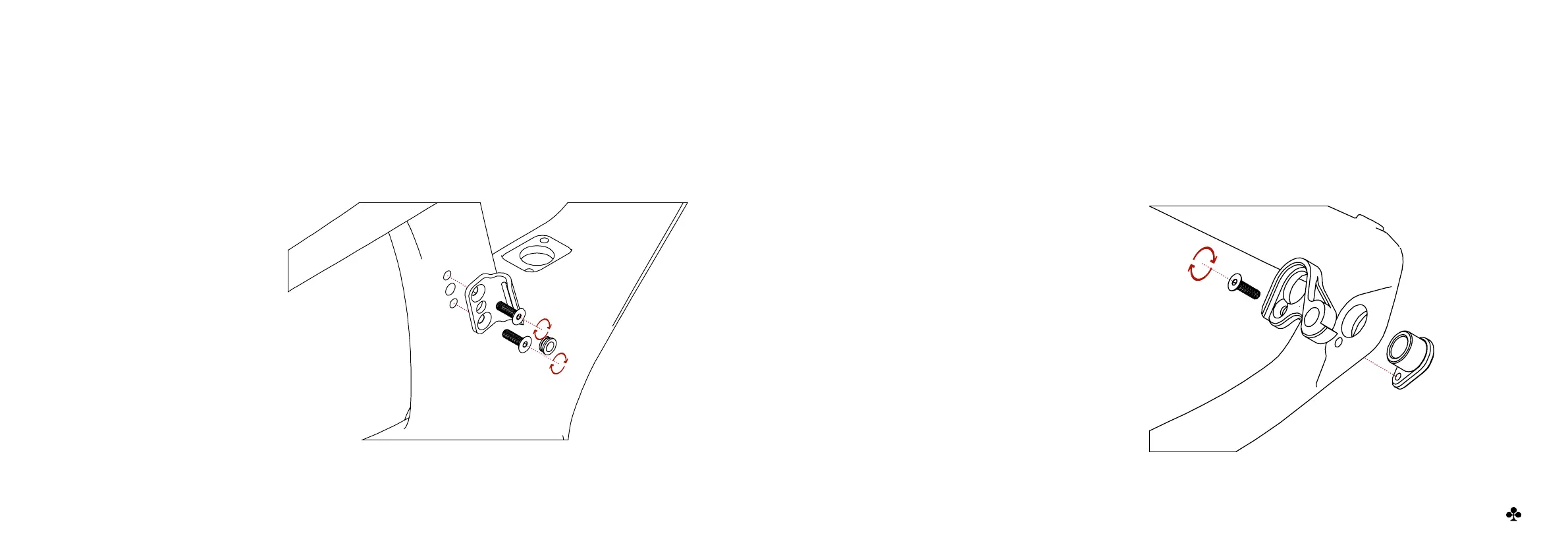

Front Derailleur Hanger installation
Max 3Nm
(img 3)
Put the two parts constituting the
Rear Hanger C Series 2022 Disc
BK kit (N.21) in their seats in the
rear dropout, matching the shapes.
Screw the two parts together
using M4x14 screw (N.22)
applying a mild torque < 3 Nm.
Lightly grease the inner threaded
interface with the thru-axle.
1
2
3
Rear Derailleur Hanger installation
Max 3Nm
(img 4)
Fix the front derailleur support TT1
(N.17) with screws M5x16 (N.18)
torqued to 3 Nm.
Insert the required rubber cap in
the hole in between the two screws
(N.19 or N.20), according to the
type of front derailleur (wired or
wireless).
1
2
