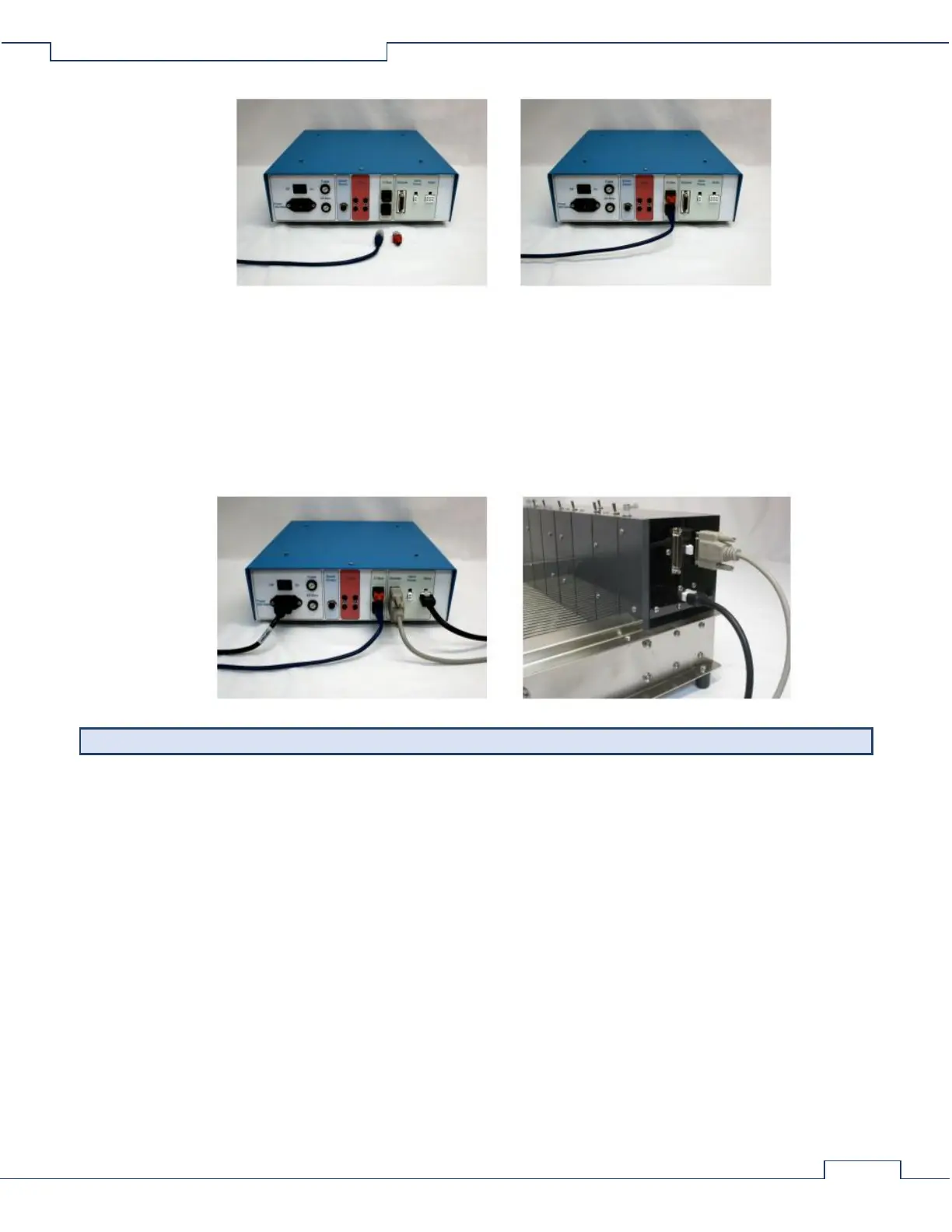

• Connect the shocker cable between the “Shocker” port of the Treadmill Controller and the 15-pin D-
SUB jack on the Exer 3/6 Treadmill.
• Use the fasteners built into the cable ends to secure the cable to the ports.
• Connect the motor cable between the “Motor” port of the Treadmill Controller and the 6-position
motor cable jack on the Exer 3/6 Treadmill. Be sure the locking lever snaps down to secure the cable to
the ports.
• Connect the AC power cord to the rear panel AC power receptacle of the Treadmill Controller and
insert the other end into an appropriate AC outlet.
DO NOT switch on the Treadmill Controller at this time! Refer to SECTION 4 for further instructions.
2.3.1 Connecting Treadmill Stimulus Detection
A typical Treadmill Stimulus Detection system may contain the following items:
