1.2 Treadmill Stimulus Detection Overview
The Columbus Instruments Treadmill Stimulus Detection is designed to work with the electrical or air-puff
stimulus. The Treadmill Stimulus Detection will monitor the stimuli presented to each channel (lane) and the
calculate various data outputs from them.
Yoked Stimulus allows the stimuli delivered to an odd-numbered channel to be reproduced on the next even-
numbered channel. This ensures that quarantined control subjects receive the same stimuli as the test subjects
within an experiment session. The Exer 3/6 in “Rat” mode can support only two channels yoked: 1 & 2. The
“Mouse” mode can support all six channels: 1 & 2, 3 & 4, 5 & 6.
1.2.1 System Specifications
Power Requirement: 6 watts, 115 or 230VAC, 50/60Hz (factory selected).
Power Fuses: 2A Slow-Blow.
Physical Dimensions: 36.8 x 30.5 x 10.9cm (14.5 x 12.0 x 4.3in).
Physical Weight: 2.8kg (6.1lb)
User Controls: 3 x Push-Button Rotary Encoders
CI-Bus Connections: 8p8c (RJ45 Ethernet) Modular Jack (x2)
Source Stimulus: 15-pin Female D-SUB “From Controller” port.
Output Stimulus: 25-pin Female D-SUB “To Treadmill” port.
2 – Hardware Setup
2.1 Item Inventory

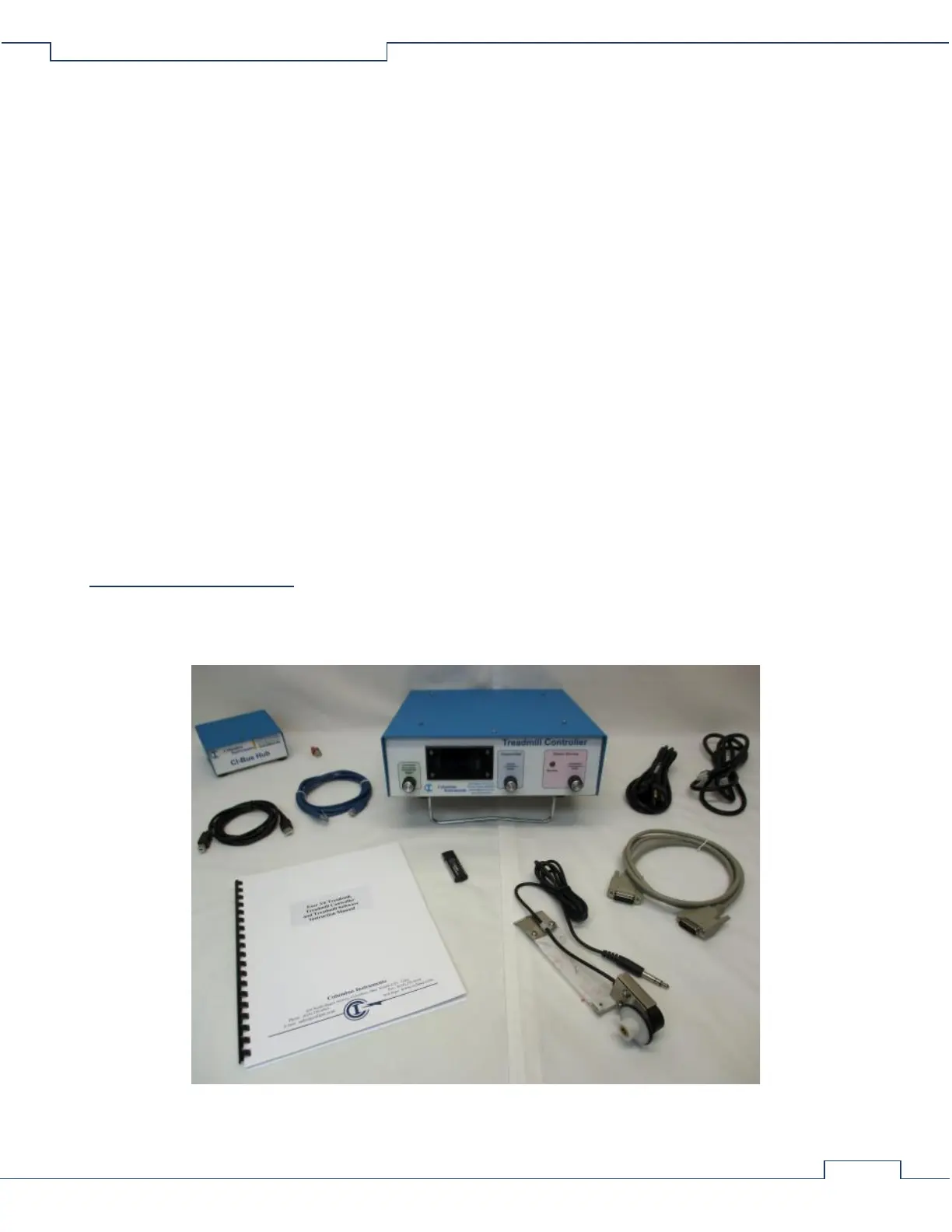

A typical Treadmill system contains the following items:
