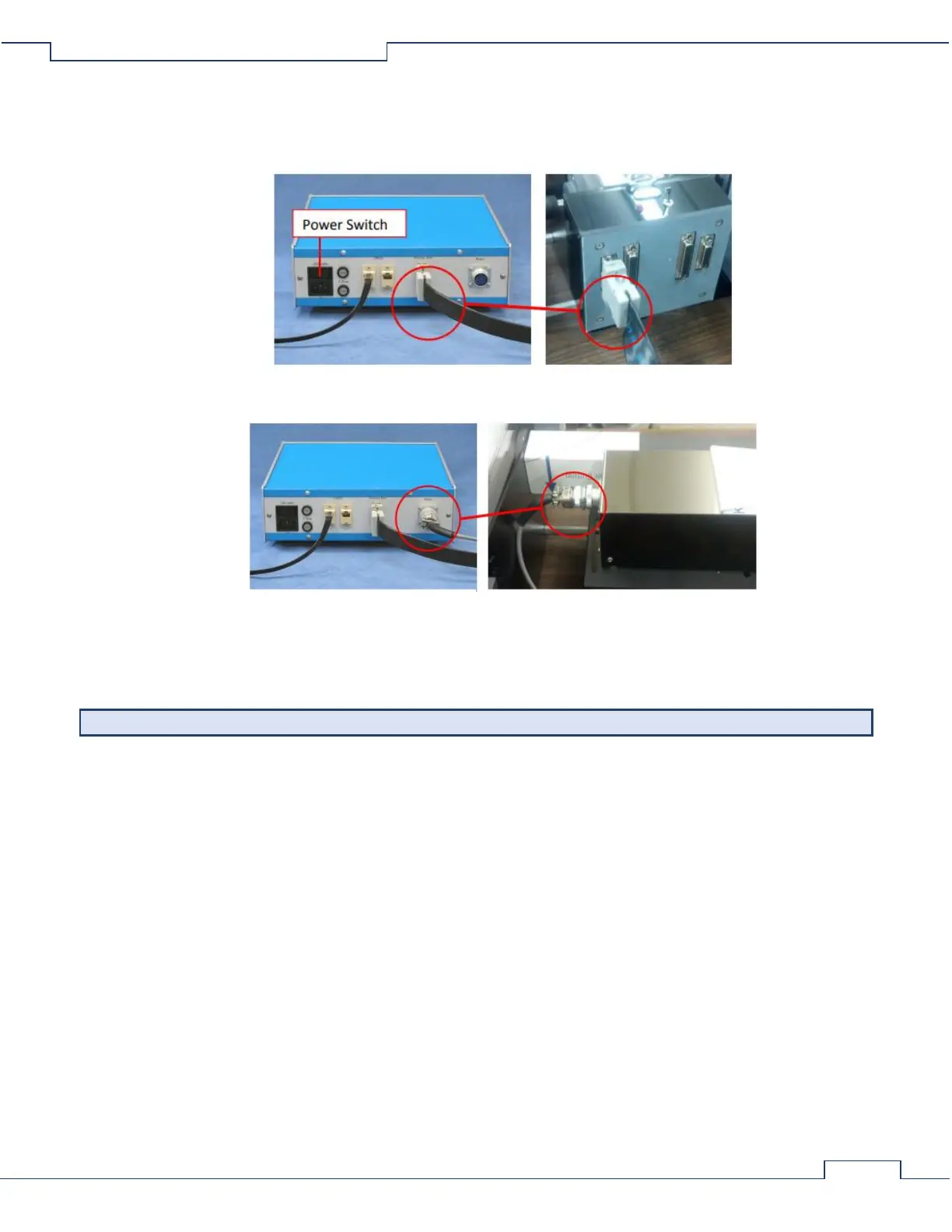

• Connect one end of the shocker cable to the D type connector on the side wall of the shocker box, and
the other end of the shocker cable to one of the D type connecters marked “To Shockers” located on
the rear of the control unit.
• Connect the motor cable to the treadmill drive motor and tighten the outer ring to prevent the cable
from disconnecting from the motor.
• Connect the other end of this cable in the same manner to the round connector labeled “To Motor” on
the rear of the control unit.
• Connect the AC power cord to the rear panel AC power receptacle of the Treadmill Controller and
insert the other end into an appropriate AC outlet.
DO NOT switch on the Treadmill Controller at this time! Refer to SECTION 9 for further instructions
7.3.1 Connecting Treadmill Stimulus Detection
A typical Treadmill Stimulus Detection system may contain the following items:
