COMAC SIMPLA 45 - Battery Check Card Adjustment; Check and Adjust Battery Check Card Set-up; Traction Motor Test; Check Carbon Brush Motor Conditions

ADJUSTMENTS
AND
INSPECTIONS
SIMPLA 45-50
Doc. 10001244
Em. 04/2007
Rev. 00
Pag. 2 di 6

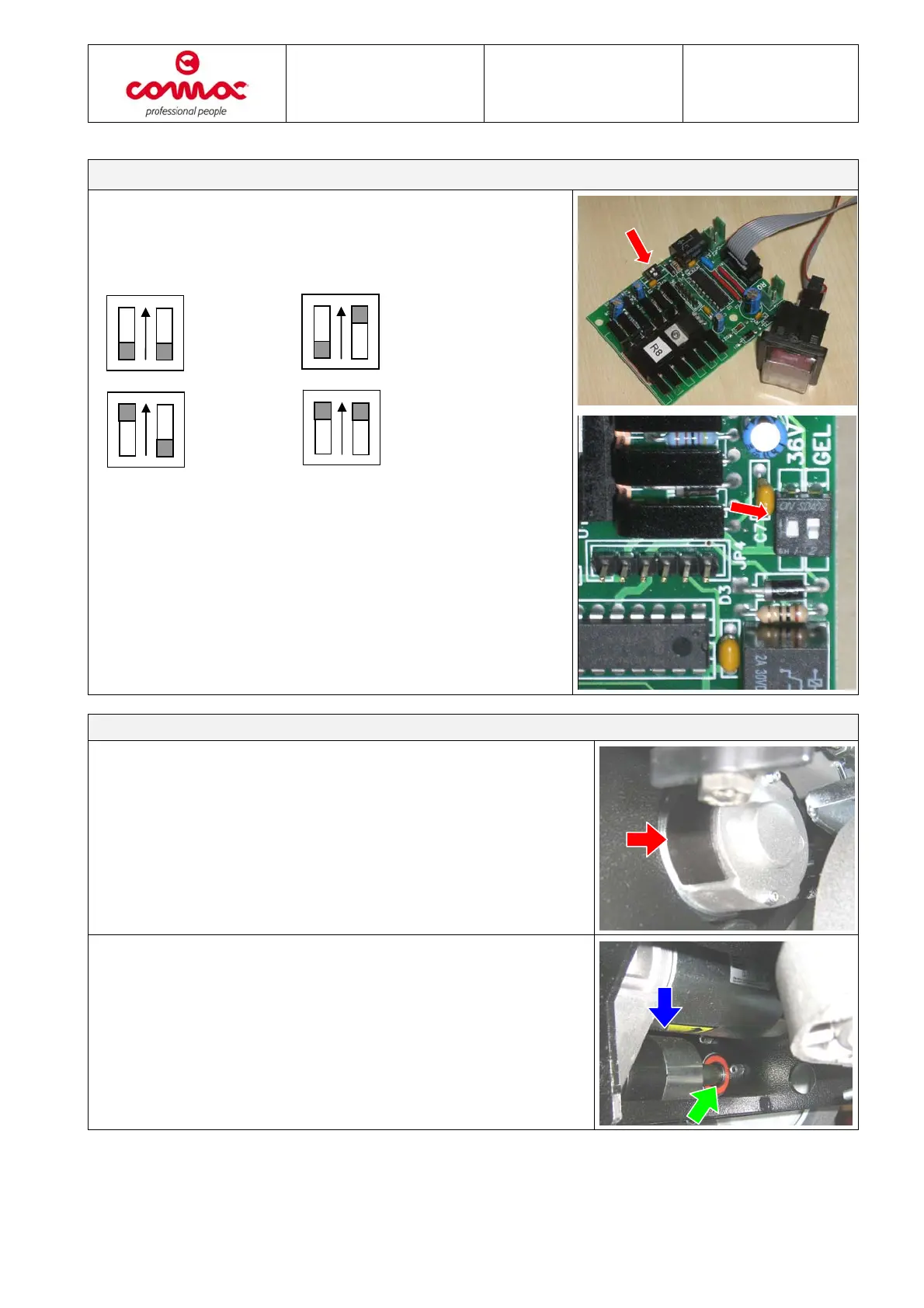

Adjustment battery check card
1. Check-up the right set-up of the battery check card. The
adjustment can be performed by microswitches.
2. The possibles configurations are the following:
The right configuration is one of the two above depending on
the battery type.
Collaudo Motore Trazione
1. Check the carbon brush motor conditions under the plastic
lids.
2. Check the differential gear noiselessness and funtionality:
stop one wheel anf verify that the free wheel turn correctly.
3. Check the noiselessness and functionality of bears where
shafts turn.
24 V
Pb
24 V
Gel
36 V
Pb
36 V
Gel
