COMAC SIMPLA 55BT - Instrument Panel Components; Rear Components; Side Components

10
MACHINE PREPARATION

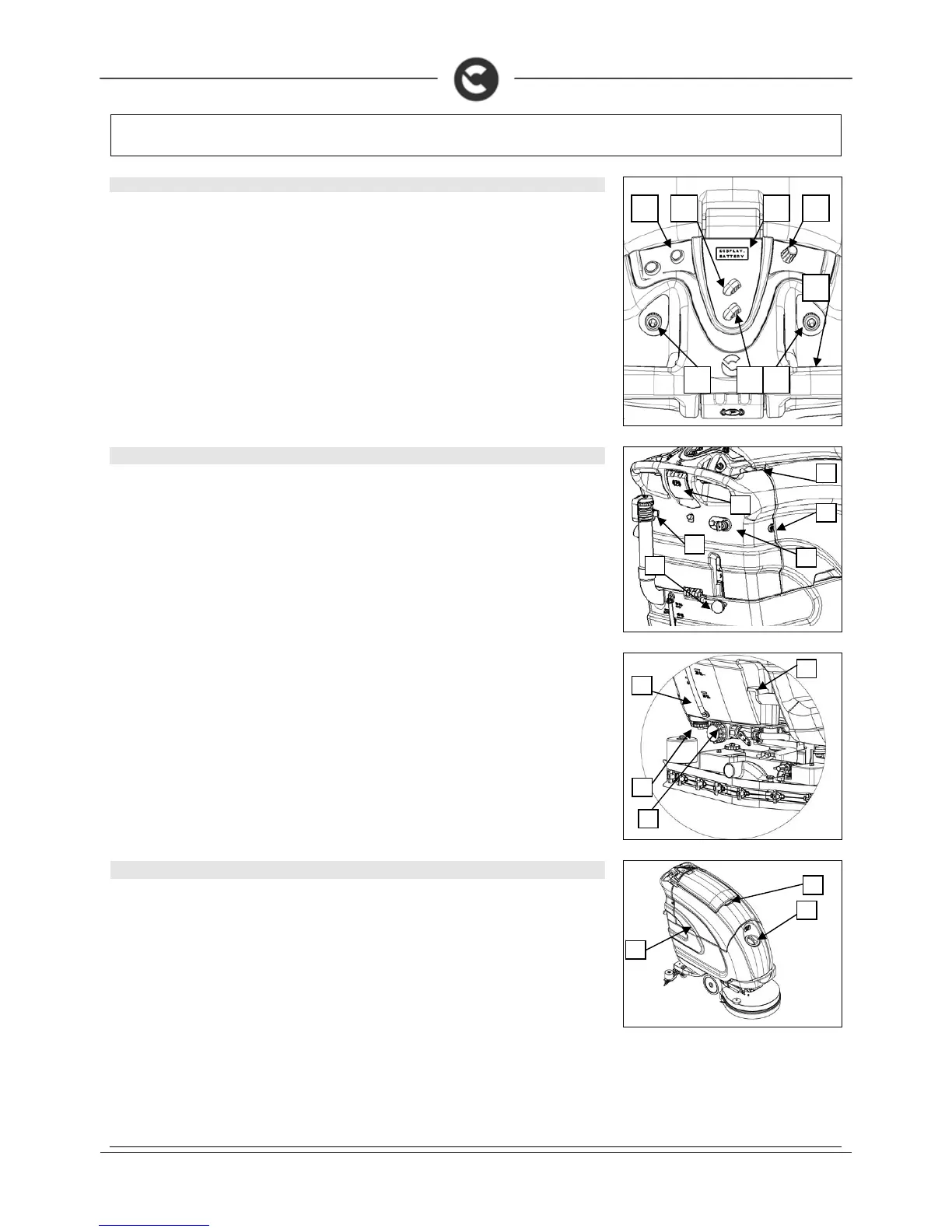

4. INSTRUMENT PANEL COMPONENTS
The instrument panel components are identified as follows:
1- levers to activate brushes/traction (located beneath the grip)
2- Water outlet regulation switch (CDS versions)
3- Detergent outlet regulation switch (CDS versions)
5- automatic squeegee command lever (automatic version)
6- Automatic base command lever (automatic version)
7- battery level / hour-counter display
8- command button for the monitor of the hour-counter battery level
9- speed level key
5. REAR COMPONENTS
The rear components are identified as follows:
1. Brush lifting pedal
2. Water level tube
3. Solution filter
4. Drainage tube with recovery tank cap
5. Tank closure hinges
6. Handlebar fastening screws
7. Squeegee lifting lever
8. Brake lever
9. Solution tank drainage cap
10. Key switch and circuit breakers
6. SIDE COMPONENTS
The side components are identified as follows:
1. Solution water filler cap
2. Recovery tank lifting handle
3. Suction unit lifting handle
