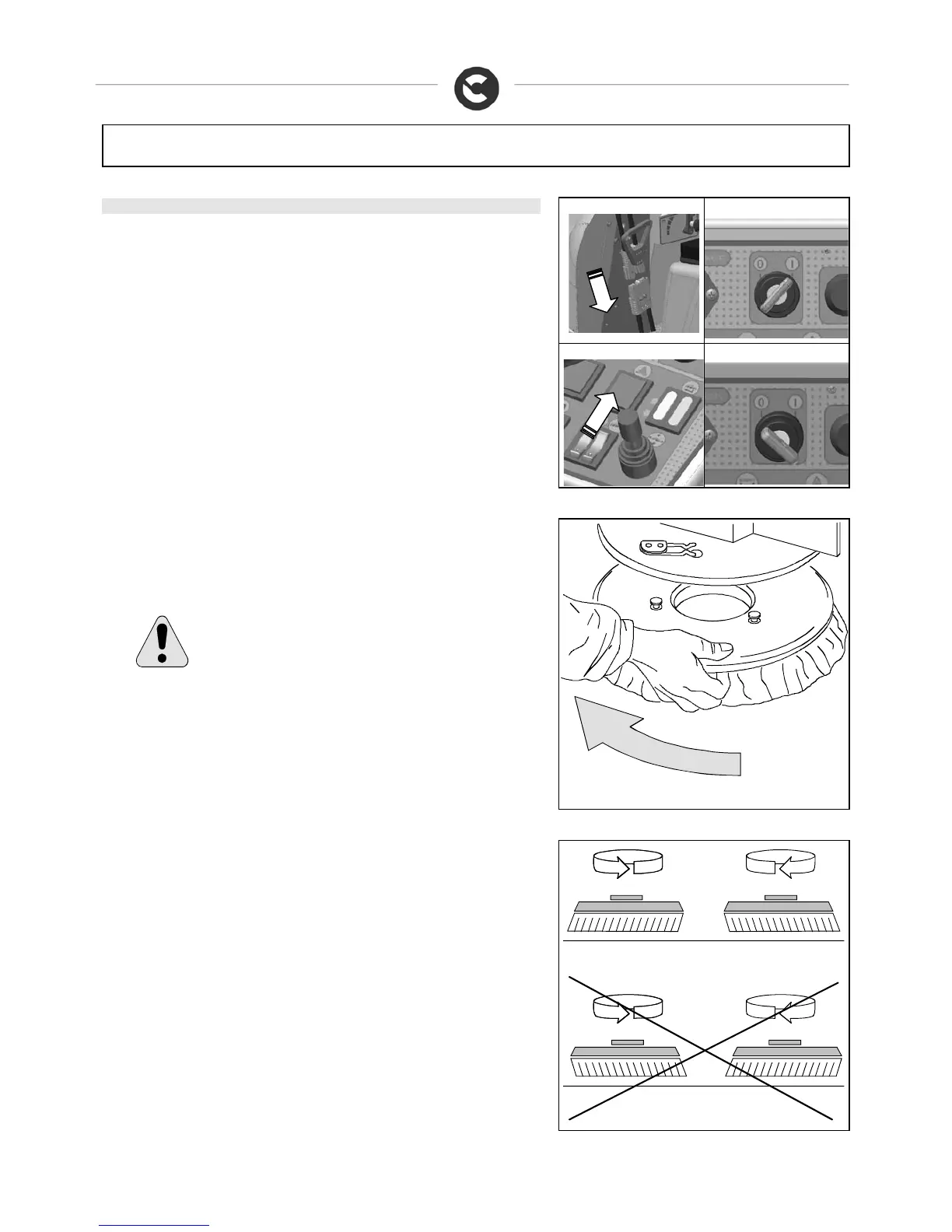

10. BRUSHES ASSEMBLY
1. Connect the battery connector
2. Turn the key into position ON
3. With the manipulator lift the brushes base
4. Turn the key into position OFF and take it off from the instrument board (to carry
out the operations of brushes assembly with connected current can cause damage
to the hands).
3
4
5. With the brushes base in lifted position, insert the brushes into the seat of the plate
under the base until the three buttons fit into the holes of the plate. Turn the brush
so that the buttons are pushed towards their retaining springs until the brush is
clamped in place. The figure shows the direction of rotation for the coupling of the
right brush. The left brush has to be in the oposite direction.
Questa operazione deve essere eseguita utilizzando guanti per
proteggersi le mani
6. It is recommended to invert daily the position of the right brush with the left one
and vice versa. If the brushes are not new and they show deformed bristles, it is
better to reassemble them in the same position (the right to the right side and the
left to the left side), to avoid that the different inclination of the bristles causes an
overload to the brushes motor and excessive vibrations.
