Still engine conditions
Engine speed (RPM) < Starting RPM (page 191) or
Oil pressure < Starting Oil Pressure (page 192) or
Binary input OIL PRESSURE (PAGE 534) is in logical 1 or
Generator voltage < 50 V (any phase)
Note: When the engine was running before and all above conditions are fulfilled, additional 2 s delay is
necessary to confirm “still engine”.
When any engine running conditions are appeared on still engine than the Wrn Stop Fail (page 663) is
activated with following delay:
for generator voltage from 10 V to < 50 % of nominal voltage, Wrn Stop Fail has delay 1 s
for generator voltage > 50 % of nominal voltage, Wrn Stop Fail has delay 200 ms
Oil pressure > Starting Oil Pressure (page 192), Wrn Stop Fail has delay 1 s
Binary input OIL PRESSURE (PAGE 534) is in logical 0, Wrn Stop Fail has delay 1 s
for detected RPM, there is no delay.
Stop engine conditions
If no engine running conditions are validated than the controller will wait extra 12 s before leaving the Machine
state Stop and than it will release the STOP SOLENOID (PAGE 598) output.

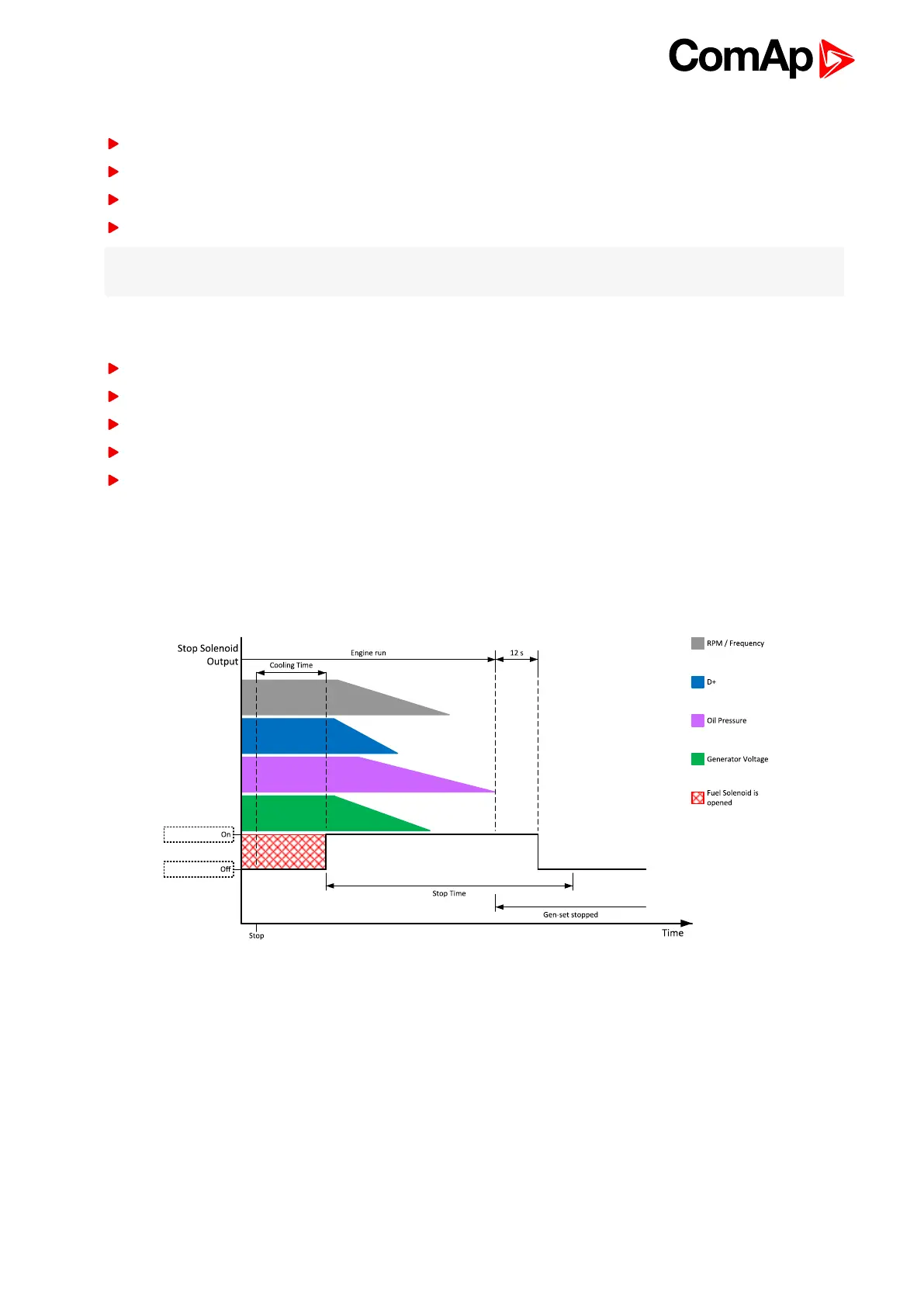

Image 5.30 Engine stops in Stop Time (page 203)
When the total time of stopping will exceed setpoint Stop Time (page 203) than the Wrn Stop Fail (page 663)
and binary outputs are activated. The controller will continuously try to stop the engine.
