ComAp InteliLite MRS16 - Terminal Diagram

InteliLite Global Guide
23
4.3 Terminal Diagram
① GENERATOR CURRENT
MEASUREMENT
② GENERATOR VOLTAGE
MEASUREMENT
③ BINARY INPUTS
T28 COM T35 N T43 BIN1
T29 L1 T36 L1 T44 BIN2
T30 L2 T37 L2 T45 BIN3
T31 L3 T38 L3 T46 BIN4
T47 BIN5
T48 BIN6
T49 BIN7

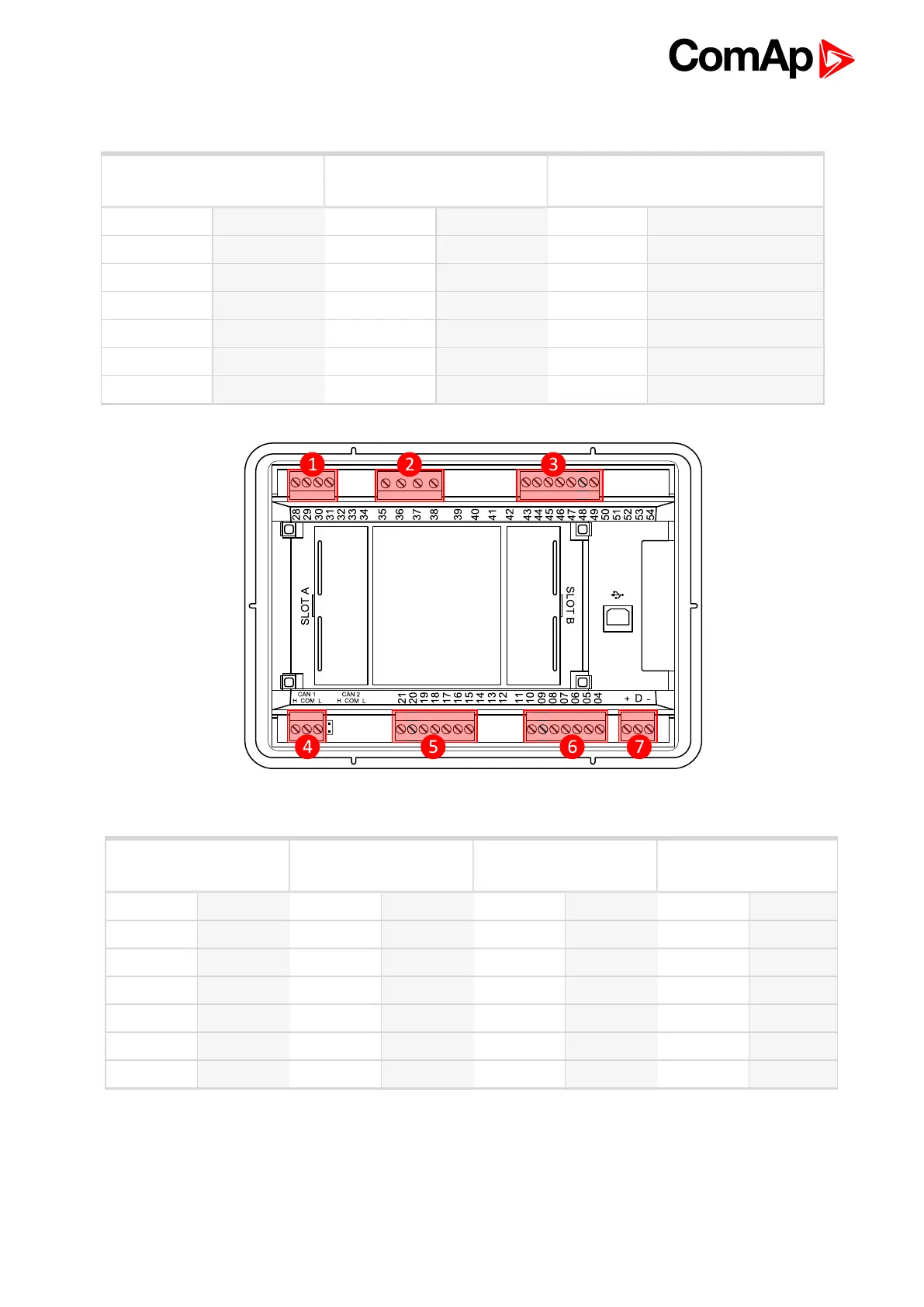

Image 4.1 Terminal diagram for InteliLite MRS16
④ CAN1 ⑤ ANALOG INPUTS ⑥ BINARY OUTPUTS ⑦ POWER SUPPLY,
D+
T25 L T15 RPM GND T04 BOUT1 T01 BATT -
T26 COM T16 RPM IN T05 BOUT2 T02 D+
T27 H T17 A COM T06 BOUT3 T03 BATT +
T18 A01 T07 BOUT4
T19 A02 T08 BOUT5
T20 A03 T09 BOUT6
T21 A04 T10 BOUT7
