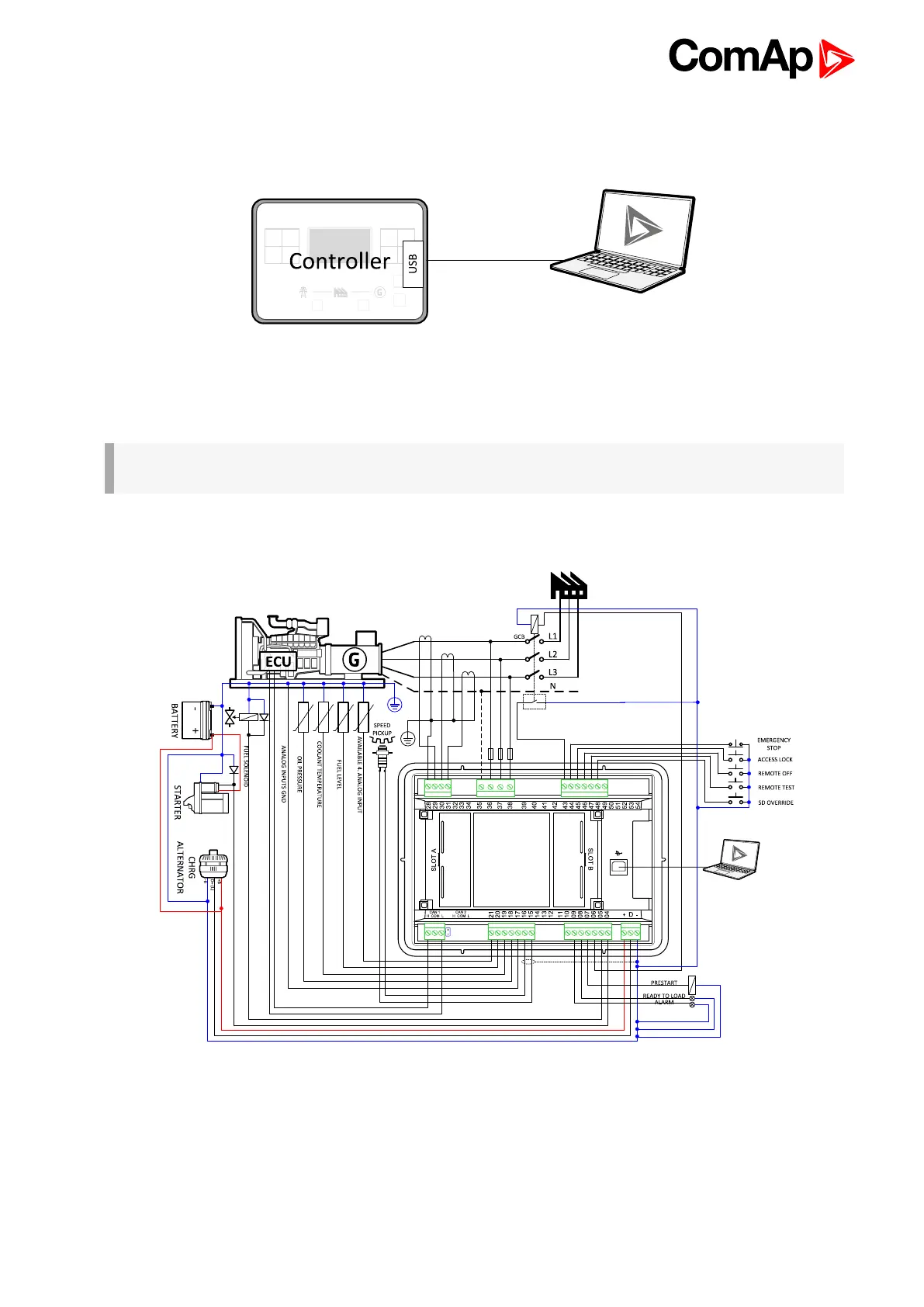

4.4.11 USB
This is required for computer connection. Use the shielded USB A-B cable.
Image 4.28 USB connection
Controller can by also power by USB (only for service purpose like a uploading firmware, change of
configuration etc.).
IMPORTANT: Power supply by USB is only for service purpose. Binary inputs and outputs are in
logical 0. Also plug-in modules are not working.
4.4.12 Example of MRS Wiring
