InteliLite Global Guide
35

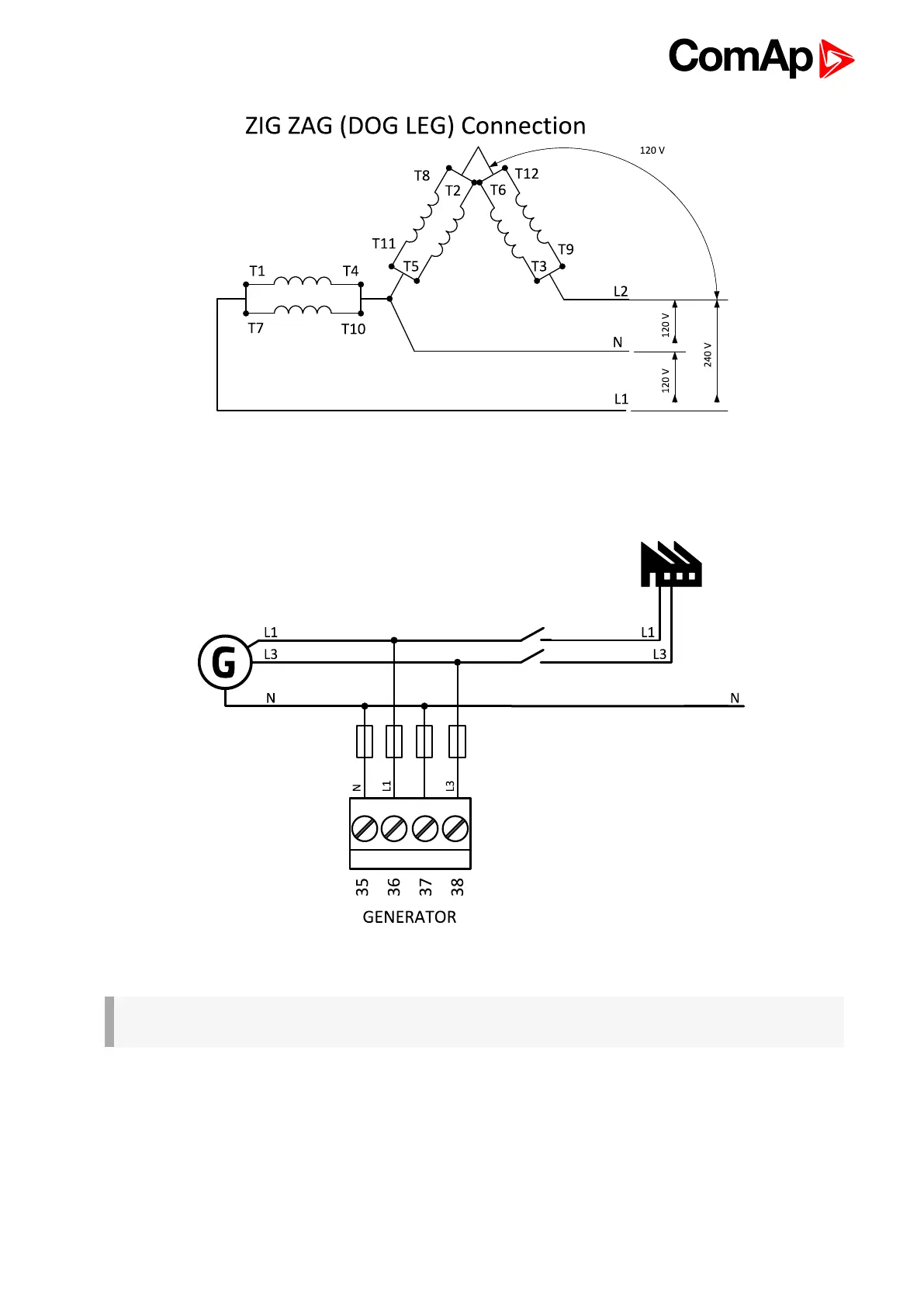

Image 4.12 Typical Split Phase generator wiring
ConnectionType: SplPhL1L3
Image 4.13 Split phase L1L3 application
IMPORTANT: The second phase of split phase connection is connected to the terminal, where is
usually connected the third phase.
