InteliLite Global Guide
43
0 - 30 V
V 0 2 4 6 8 10 12 14
Ω 94 105 118 131 147 163 182 202
V 16 18 20 22 24 26 28 30
Ω 226 252 282 317 358 405 463 533
0 - 70 V
V 0 2 4 6 8 10 12 14 16 18 20 22
Ω 97 102 108 114 120 126 133 140 147 154 162 170
V 24 26 28 30 32 34 36 38 40 42 44 46
Ω 179 188 198 208 219 231 243 256 269 284 300 316
V 48 50 52 54 56 58 60 62 64 66 68 70
Ω 334 354 375 398 422 449 479 511 547 587 631 681
Note: This is a conversion of voltage from voltage sensor to appropriate resistance value. Use resistance
values in InteliConfig to create your specific curve. These values should be used in "Ohm" column.
Current sensors
Sensor’s output
range (mA)
R (Ω)
0-20 100

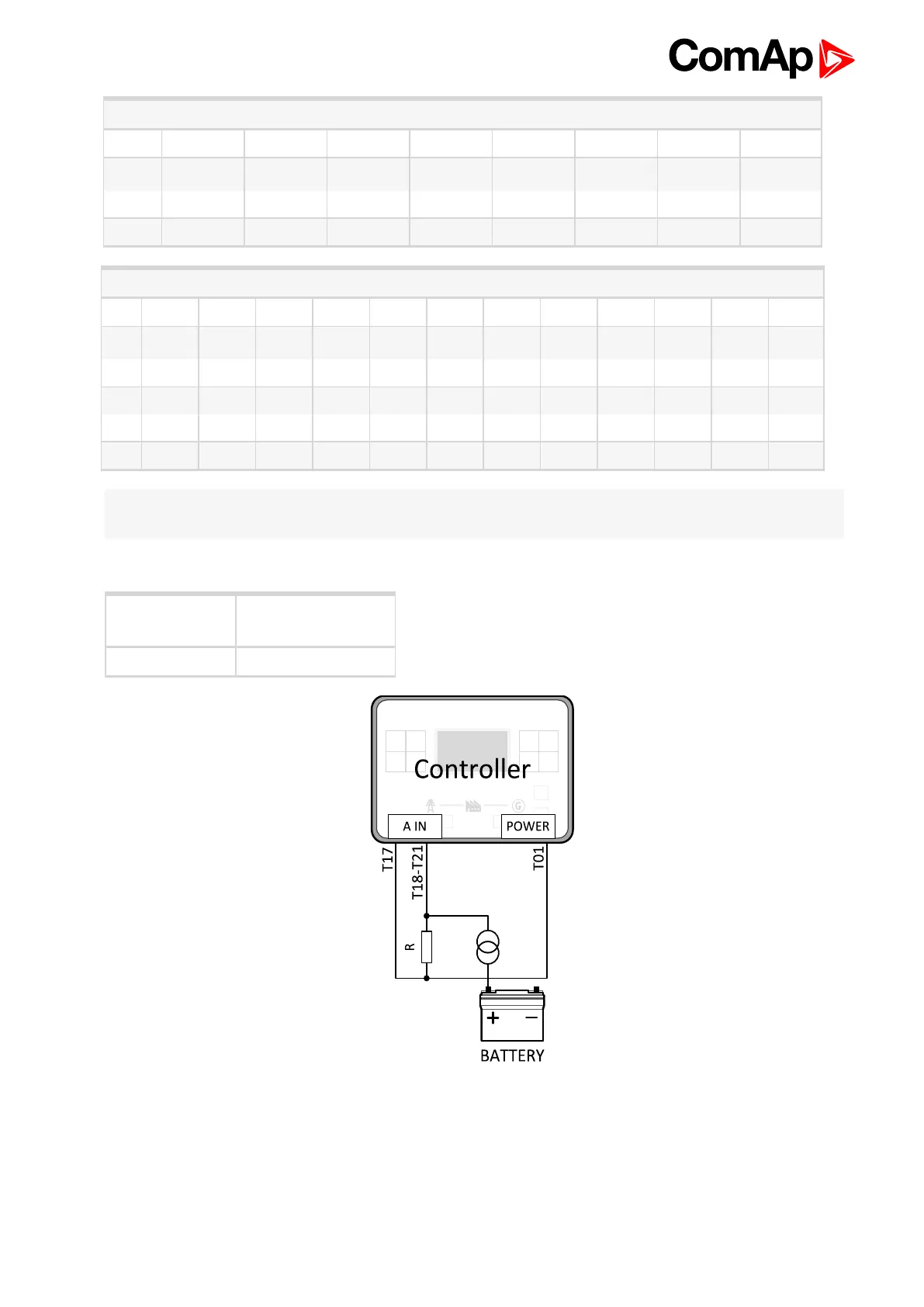

Image 4.22 Wiring of analog input with current sensor
