Related FW 1.9.0 Related applications AMF, MRS
Comm object 1376
Description
This output is closed, when Binary Input 3 is active and open when Binary Input 3 is inactive. When Binary
Input 3 is used for BIN protection function then this output is closed when BIN protection alarm is in
Alarmlist.
Note: When LBI 3 is used like protection, then state of this LBO is connected with this protection e.g.
when LBI is inactive but alarm of protection is not confirm in alarmlist, LBO is still active.

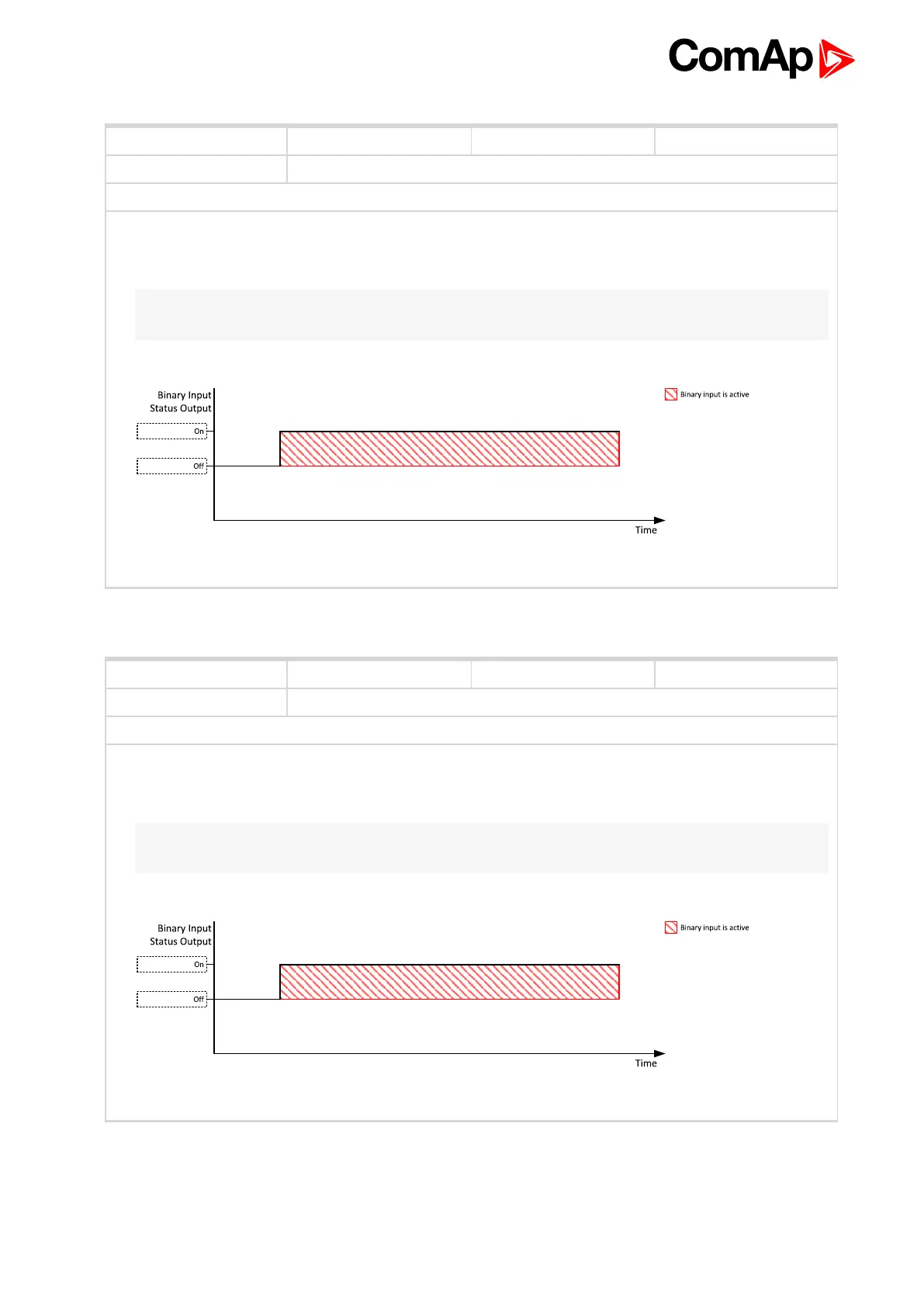

Image 8.155 Binary Input 3 Status
BIN 3 Status
6 back to Logical binary outputs alphabetically
Related FW 1.9.0 Related applications AMF, MRS
Comm object 1377
Description
This output is closed, when Binary Input 4 is active and open when Binary Input 4 is inactive. When Binary
Input 4 is used for BIN protection function then this output is closed when BIN protection alarm is in
Alarmlist.
Note: When LBI 4 is used like protection, then state of this LBO is connected with this protection e.g.
when LBI is inactive but alarm of protection is not confirm in alarmlist, LBO is still active.
Image 8.156 Binary Input 4 Status
BIN 4 Status
6 back to Logical binary outputs alphabetically
