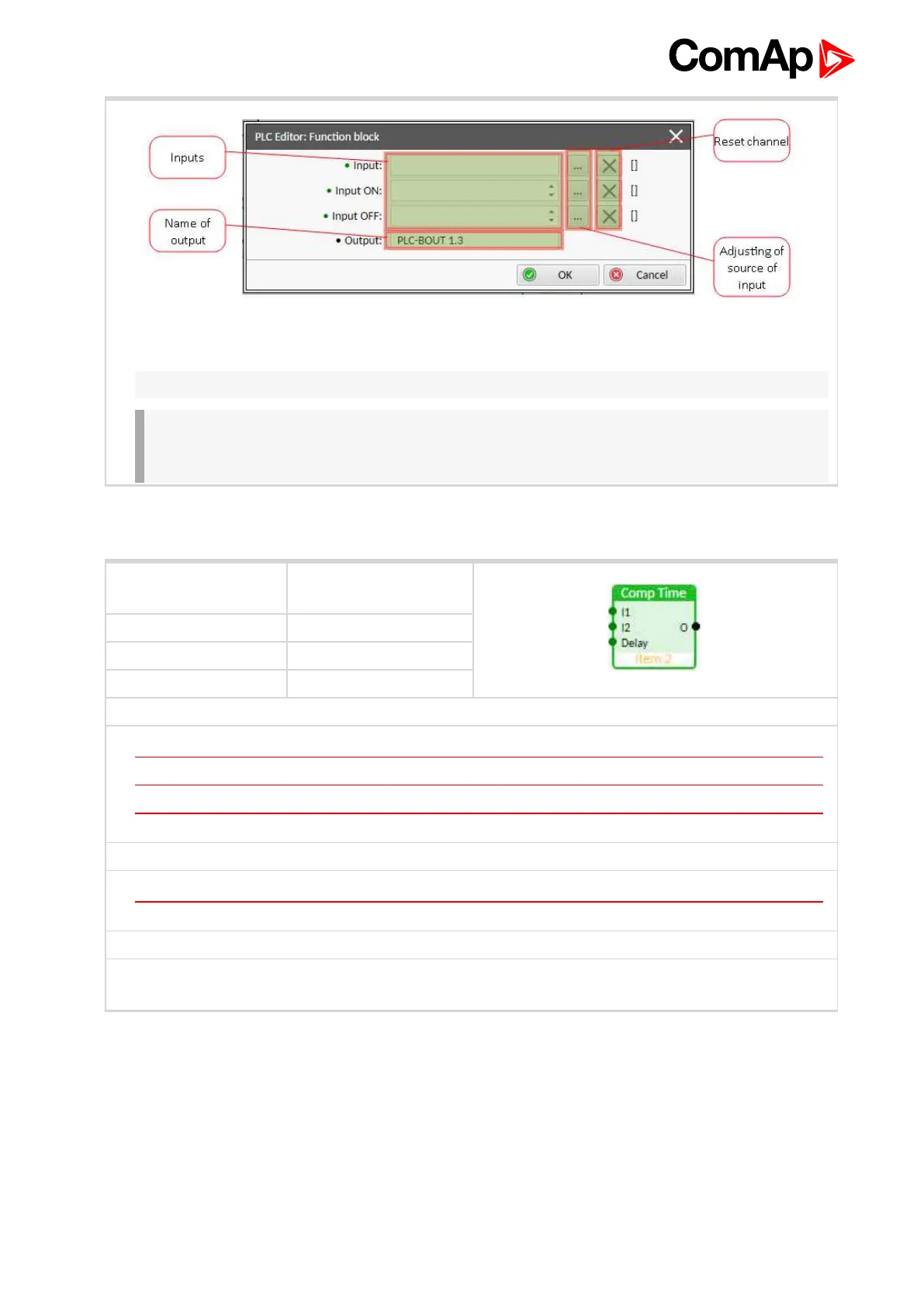

Image 9.4 Configuration of Comp Hyst block
Note: Level On and Level Off can be constants or values from controller.
IMPORTANT: In case that values on inputs have different decimal numbers than the values
are converted and the name of block is red. It is strongly recommended to use values with
the same decimal numbers.
6 back to List of PLC blocks
PLC group Comparison of analog
inputs
Related FW 1.9.0
Related applications AMF, MRS
Comm object 4
Inputs
Input Type Negation Range Function
Input 1 Analog No Any Compared value
Input 2 Analog No Same as Input 1 Comparative level
Delay Analog No 0.0..3000,0 [s] Comparative delay
Outputs
Output Type Negation Range Function
Output Binary No 0/1 Comparator output
Description
The block works as an analog switch. It compares the input value with the comparative level. The output will
switch on if the input is equal or higher than the comparative level for time longer than the delay.
Comparator With Delay
