InteliLite Global Guide
693

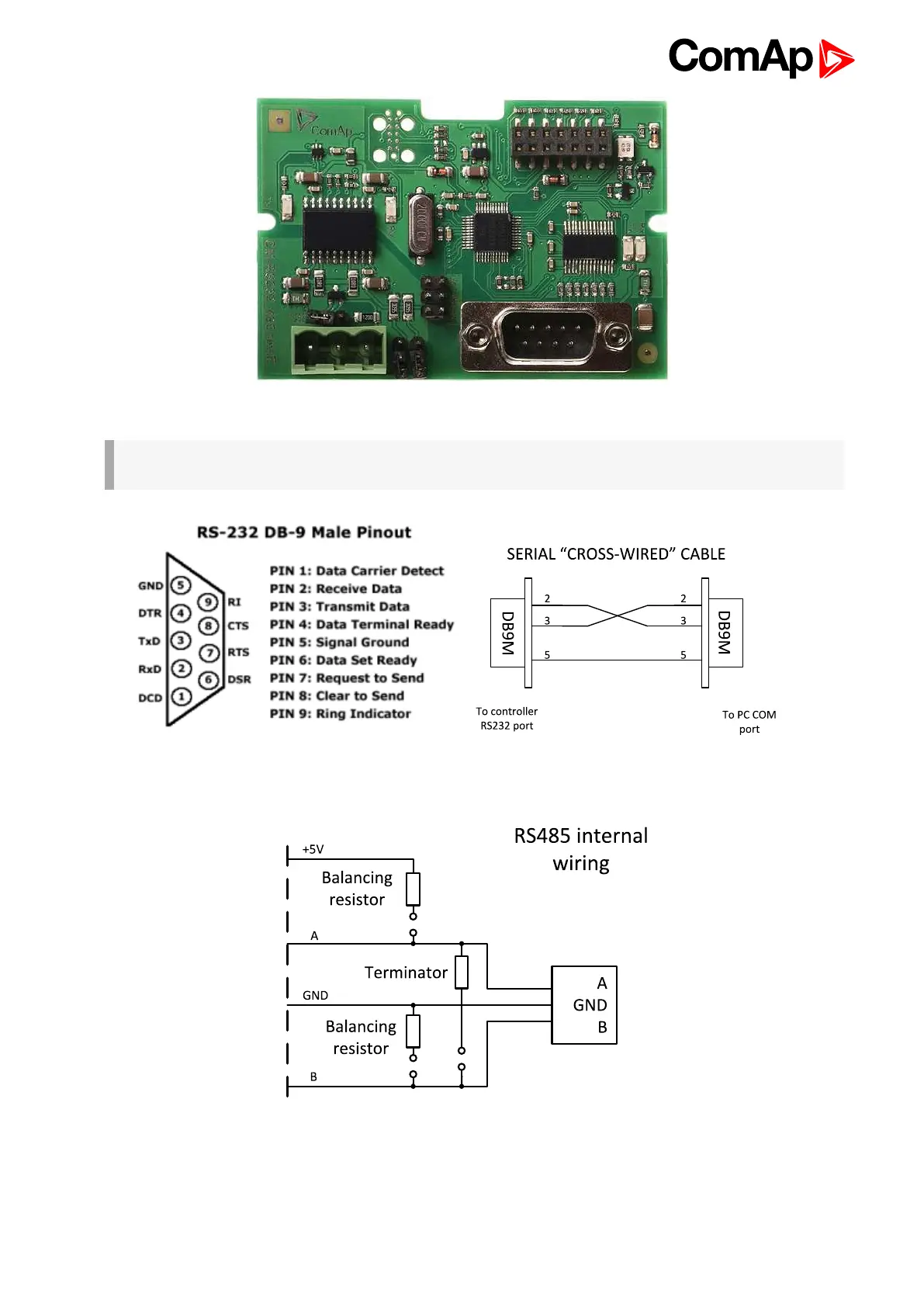

Image 9.14 CM-RS232-485 interface
IMPORTANT: Any manipulation with plug-in module shall be done with disconnected power
supply to controller.
Image 9.15 Pinout of RS-232 line
Image 9.16 Pinout of RS-485 line
