InteliLite Global Guide
709

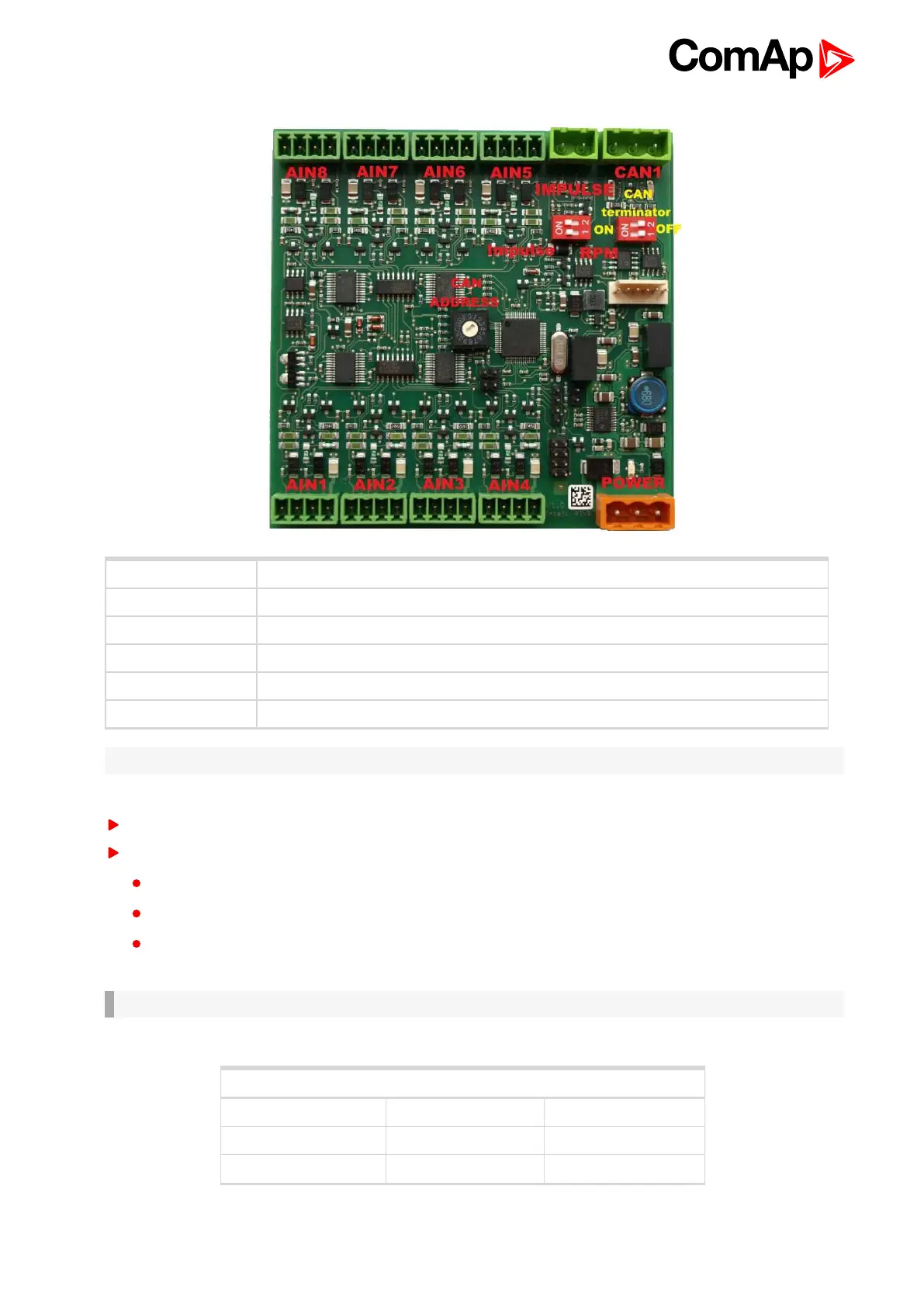

Terminals
Analog input 8 analog Inputs
CAN CAN1 line
Power Power supply
CAN LED Tx, Rx Indication transmitted or received data
Status LED LED indication of correct function
CAN terminator Terminating CAN resistor (active in position “ON” - switch both switches)
Note: Impulse input is not supported.
Analog inputs
8 channels
can be configured as:
resistor three wire input
current input
voltage input
All inputs can be configured to any logical function or protection.
IMPORTANT: Impulse input is not supported in controller.
Supported sensors
Sensors
User curves NI100 [°F] (fix) 0-5V
PT100 [°C] (fix) NI1000 [°F] (fix) 0-10V
PT1000 [°C] (fix) 4-20mA passive
