IS-NT-Async-SPI, SW Version 1.2, ©ComAp – February 2011
IS-NT-Async-SPI-1.2.PDF
70
20,0 No action 2000 1000 400 200 100 40
50,0 No action No action 2500 1000 500 250 100

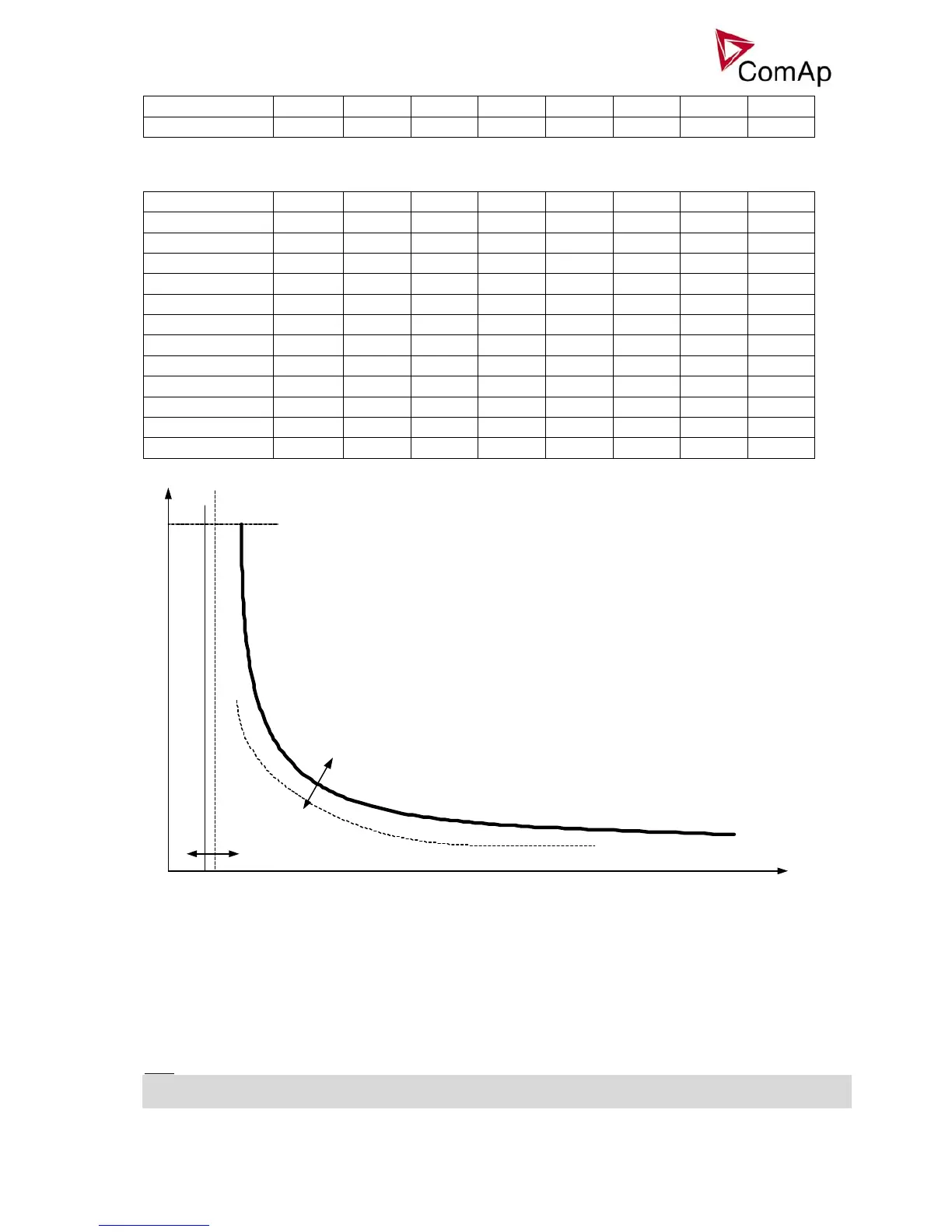

Following example shows reaction times for OverldStrtEval = 110% in dependence on generator power and
setpoint 2PovrldStEvDel value:
Pgen [%] <=110 111 112 115 120 150 200
2POvrldStEvDel [s]
0,1 No action 11 5,5 2,2 1,1 0,275 0,123
0,2 No action 22 11 4,4 2,2 0,55 0,245
0,5 No action 55 27,5 11 5,5 1,375 0,612
1,0 No action 110 55 22 11 2,75 1,223
1,5 No action 165 82,5 33 16,5 4,125 1,834
2,0 No action 220 110 44 22 5,5 2,445
2,5 No action 275 137,5 55 27,5 6,875 3,056
5,0 No action 550 275 110 55 13,75 6,112
10,0 No action 1100 550 220 110 27,5 12,223
20,0 No action 2200 1100 440 220 55 24,445
50,0 No action No action 2750 1100 550 137,5 61,112
Pgen
Nominal power
2POvrldStEvDel
Maximal Reaction time
Reaction time
OverldStrtEval
Min Power PtM [ % ] (FV)
Minimum Power in Parallel to the Mains is the minimal value of the gen-set power in parallel to the mains.
Gen-set is never loaded below this level (even if the active load control loop requests a lower level). There is
no indication or alarm when Min Power PtM level is reached.
Step: 1 % of Nomin power
Range: 0 – 100 % of Nomin power
Force value possibility: Yes
Hint:
If the setpoint Base load is lower than setpoint Gener protect: Min power PtM, the gen-set requested load is
set to Gener protect: Min power PtM.
