Comelit Vandalcom series User Manual

3
Description
Vandalcom series digital call module made using double 2.5 mm 316 stainless steel plate, complete with 12-button backlit
keypad plus 16-character alphanumerical display for showing call codes and interactive user messages (engaged, etc.). Also
functions as an electronic key code device with a possible 1000 different 6-digit codes. For use in Building kit, SBTOP, SB1
audio, SB2 audio and ViP systems.
1.
2.
MR1
MR2

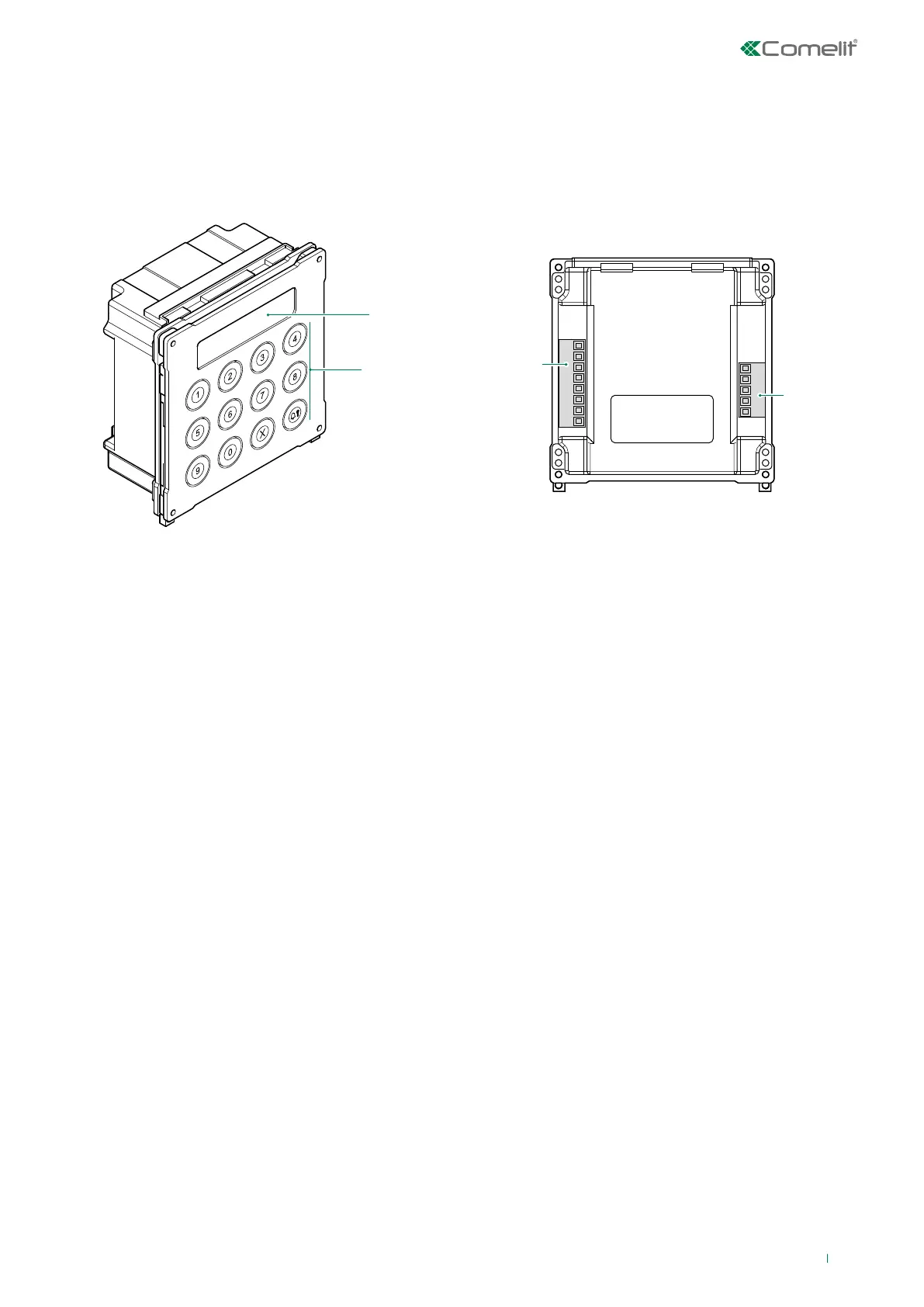

1. LCD screen
2. Alphanumeric keys
Terminal block for MR1 connection
V+ V- DC power supply
12~ 12~ AC power supply
S serial port
- reference negative
PR programming input
- reference negative
Terminal block for MR2 connection
D+ RS485 connection
D- RS485 connection
- reference negative
RX RS232 connection
TX RS232 connection

Comelit Vandalcom series Specifications

General

Brand	Comelit
Model	Vandalcom series
Category	Intercom System
Language	English
