5.5 Connections

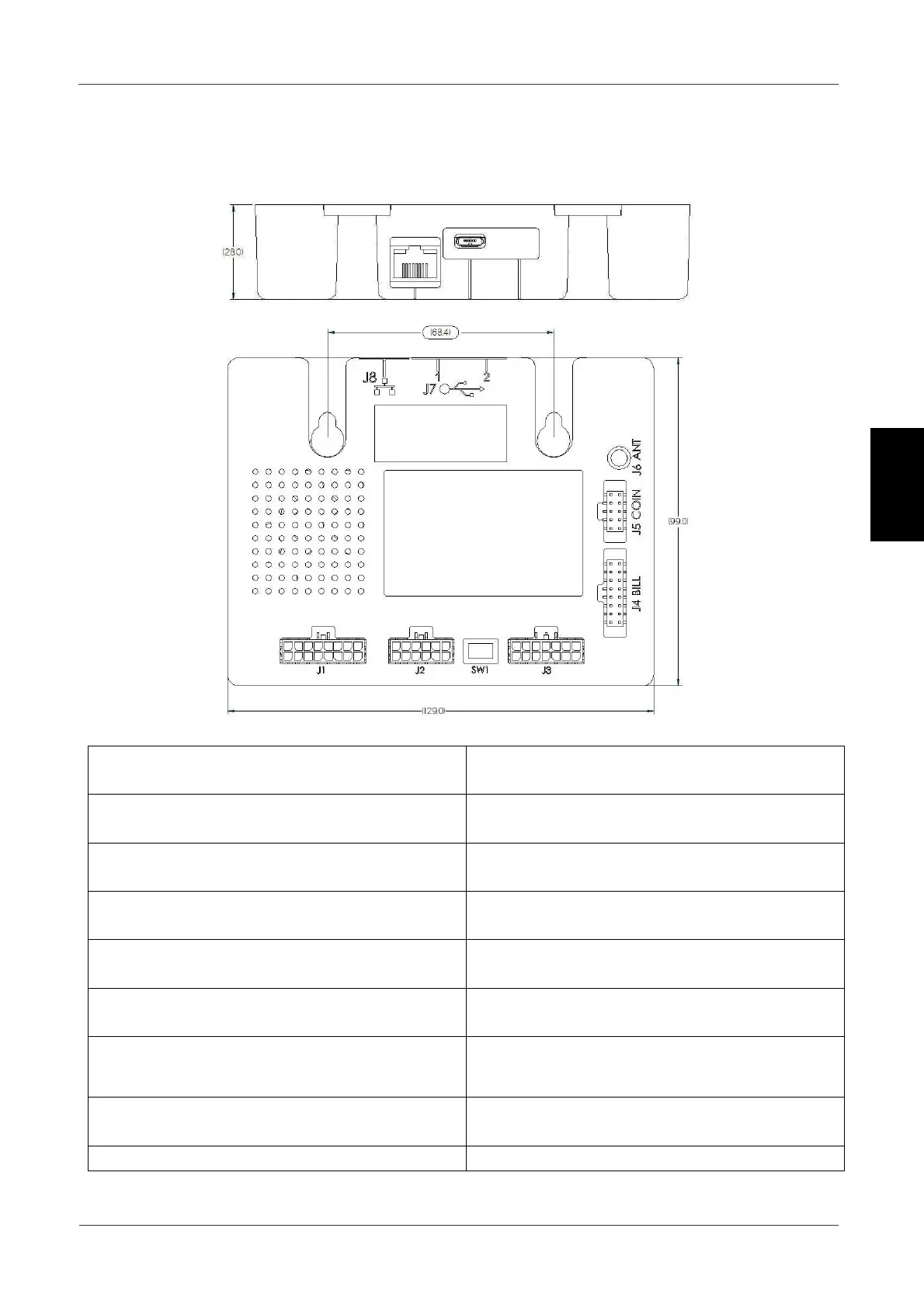

5.5.1 World Key and World Key Move CPU connections
J1 = microfit 3mm 16 poles Connection of VMC and payment devices
power supply
J2 = microfit 3mm 12 poles Connection RS232 – I2C, +5Vdc,
+12Vdc (KPM, KPD boards and display)
SW1 Line end resistances switch, RS485, Can
Bus
J3 = microfit 3mm 14 poles Connection of industrial devices, RS485,
CAN BUS, CCTALK
J4 = strip 2.54mm 16 poles Connection of banknote reader 12Vdc
2.3A ± 10%
J5 = strip 2.54mm 10poles Connection of coin validator
12 Vdc 0.5 A±10%
J6 = MCX 50 Ohm Connection of Moon, Sky, Galaxy reading
heads coaxial cable
J7 = Micro USB OTG Connection to USB Host devices (PC) or
(mass filing peripheral) device
J8 = Ethernet 10/100 RJ45 connection to Ethernet network
