1 Led indicator
2
CN3
USB connector (optional)
3
J1
Virtual Dip Switch connector
4
CN1
separator parallel connector (ccTalk)
5
ccTalk connector
6
Door opening device
7
Coin inlet (version G)
4.5 Equipment identification

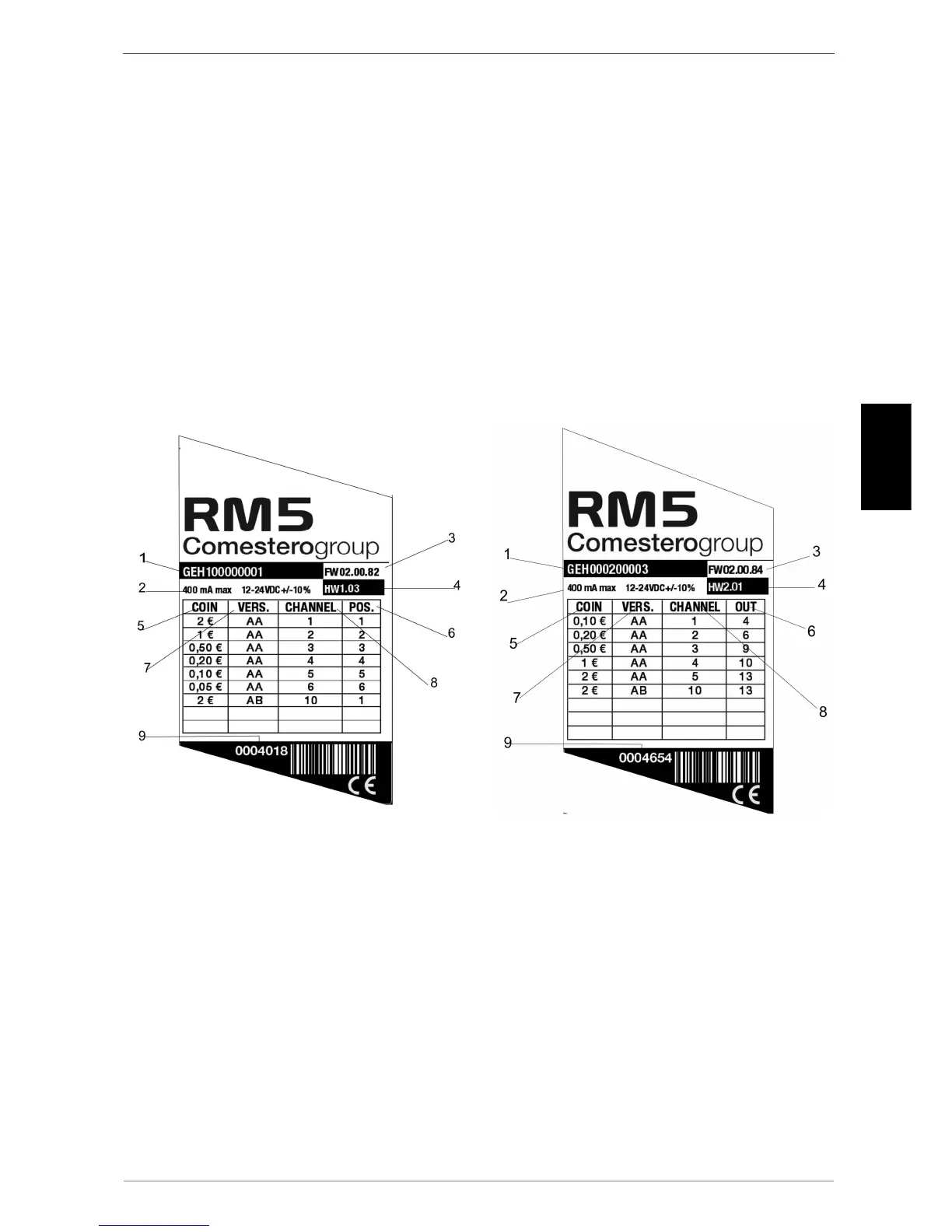

The figure shows the label affixed on the coin mechanism, which contains the main
equipment operation and identification information.
For an easy identification of the coin validator i.e., its configuration (operation mode)
and calibration (type of accepted coins), please find below a graphic representation
of the labels affixed on the various models.
ccTalk version (A) Validator version (B)
Fig. 4
1
Coin mechanism code
2 Power supply
3 Firmware version
4 Hardware version
5 Accepted coins
6
(ccTalk version)
Coin position inside the events buffer (ccTalk)
(A)
6
(Validator version)
Outlet duct
(B)
7 Calibration version
8 Channel onto which the coin is calibrated
9 Serial number
