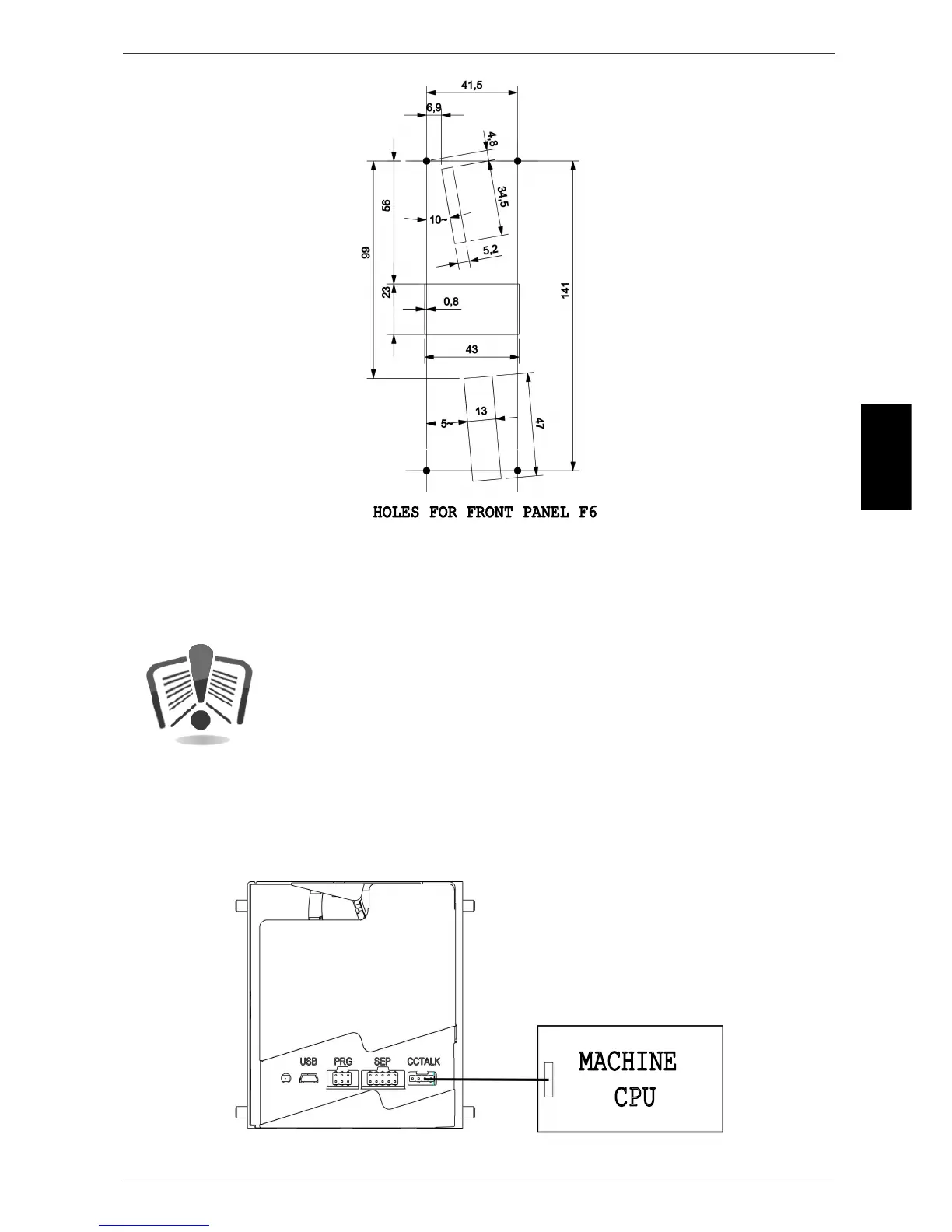

Fig. 8
5.2 Connections
The following paragraphs provide the necessary information for all
RM5 HD connections by means of the connectors with which it is
equipped.
RM5 HD is available in 3 versions. ccTalk (Giochi Italia and Full),
Validator and totalizer.
Follow carefully the instructions below to ensure a correct
connection for these three versions.
A. Connection of the cc Talk version (Giochi Italia and Full)
Connect the ccTalk (Giochi Italia and full) version of the RM5 HD coin mechanism to
the machine CPU by means of the (CN2) ccTalk connector as shown below.
Fig. 9
