Comestero RM5 HD - Connection of the Parallel Validator Version with Separator

19
EN

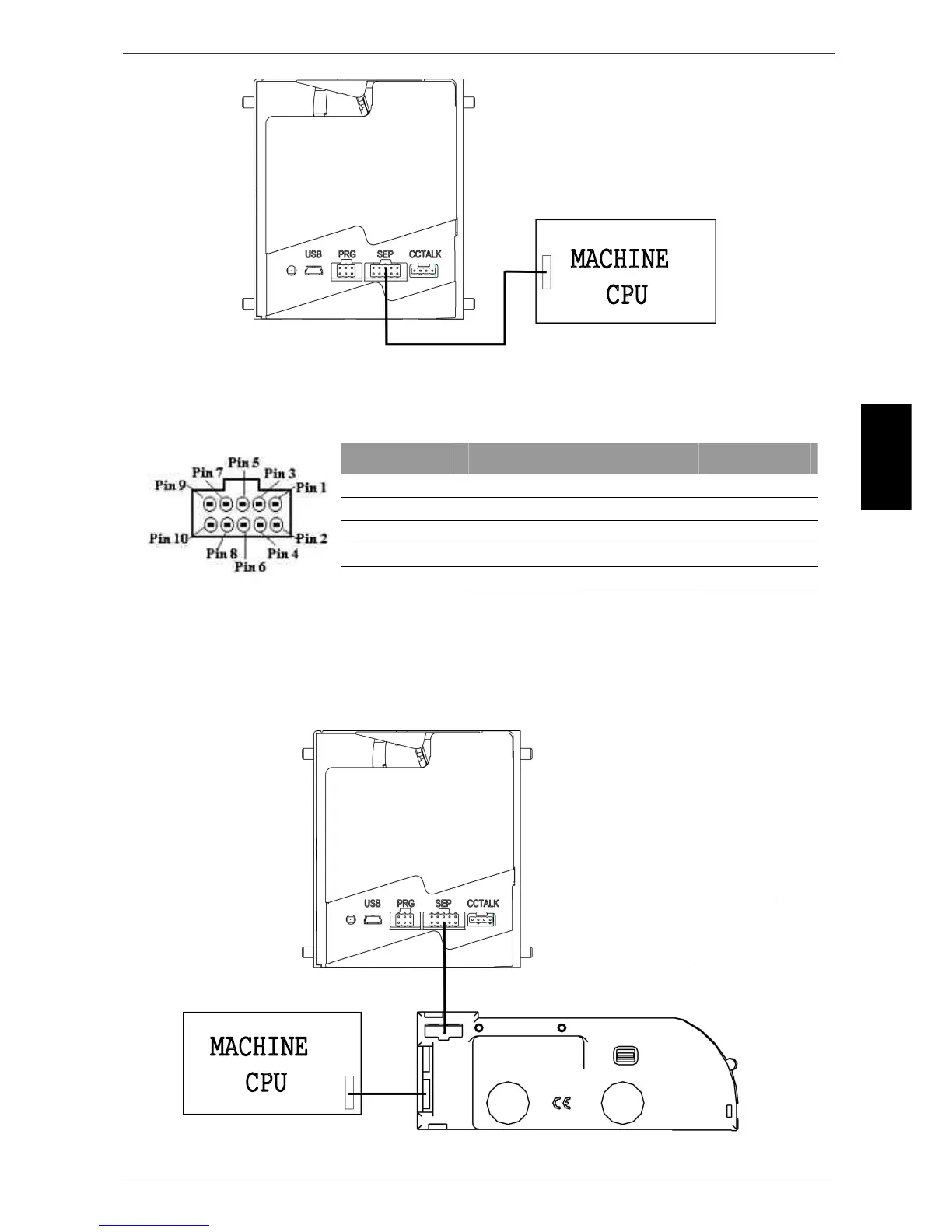

Fig. 11
Below is the pin numbering for the interested connector:
Pin number
Meaning Pin number
Meaning
1 Gnd. 6 Inhibition
2 +Vcc 7 CH1
3 CH 5 8 CH 2
4 CH 6 9 CH 3
5 CH 7 10 CH 4
D. Connection of the parallel validator version with separator
In presence of a separator, connect the RM5 HD coin mechanism to the machine
CPU by means of (CAN) “SEP” connector, then connect the separator to the machine
CPU.
Fig. 12
