RM5 HD – Operating Manual
22

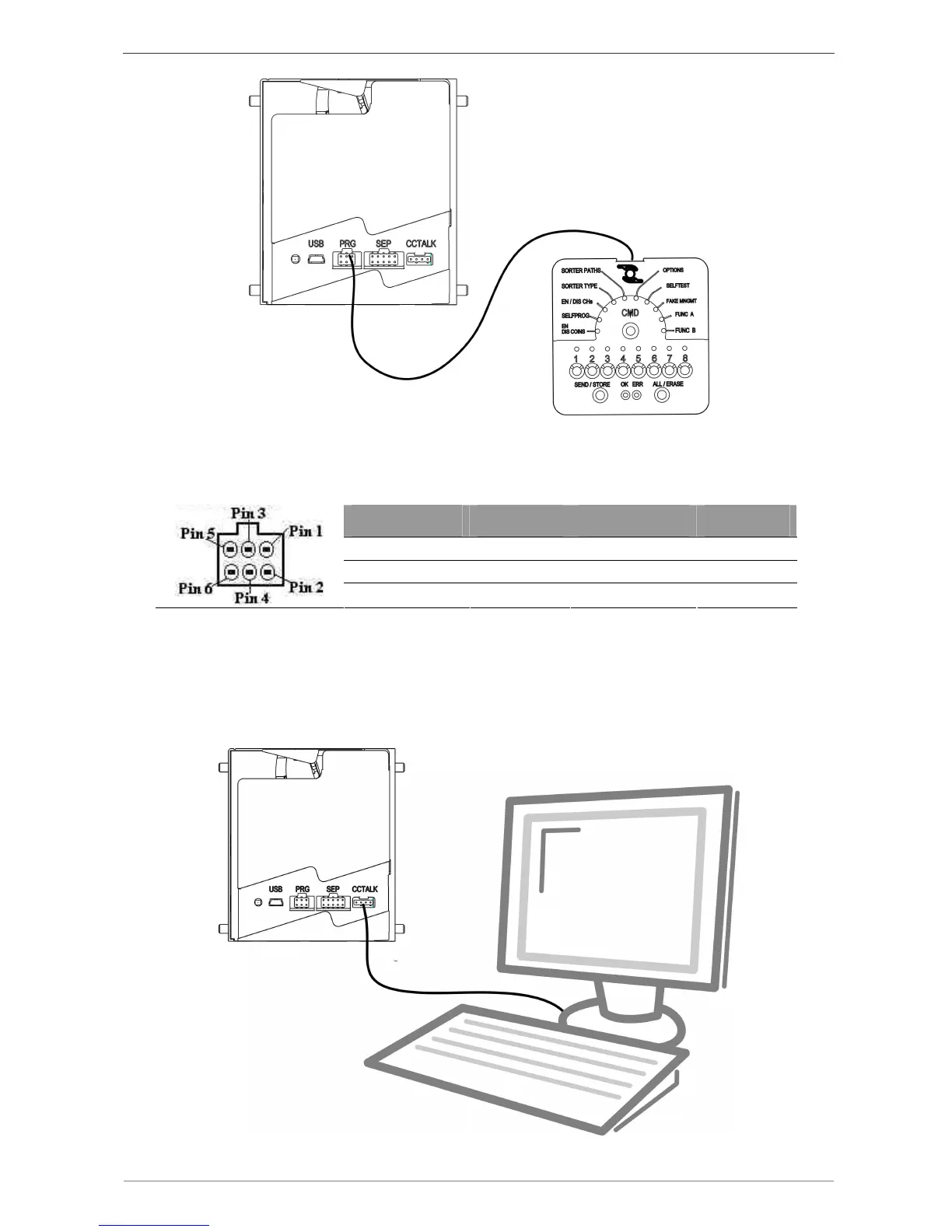

Fig. 15
Below is the pin numbering for the interested connector :
Pin number Meaning Pin number Meaning
1 Gnd 4 RX
2 + 5 Vdc 5 N.U.
3 TX 6 N.U.
H. Connection to a PC
RM5 HD can be connected to a PC by means of a (CN2) ccTalk connector. This
connection allows configuring RM5 HD in all its functions by means of the Multiconfig
programme (see Chapter 6).
Fig. 16
