RM5 HD – Operating Manual
18
Below is the pin numbering for the interested connector:
Pin number Meaning
1 +V
2 N.V. (not used)
3 0 V
4 Date

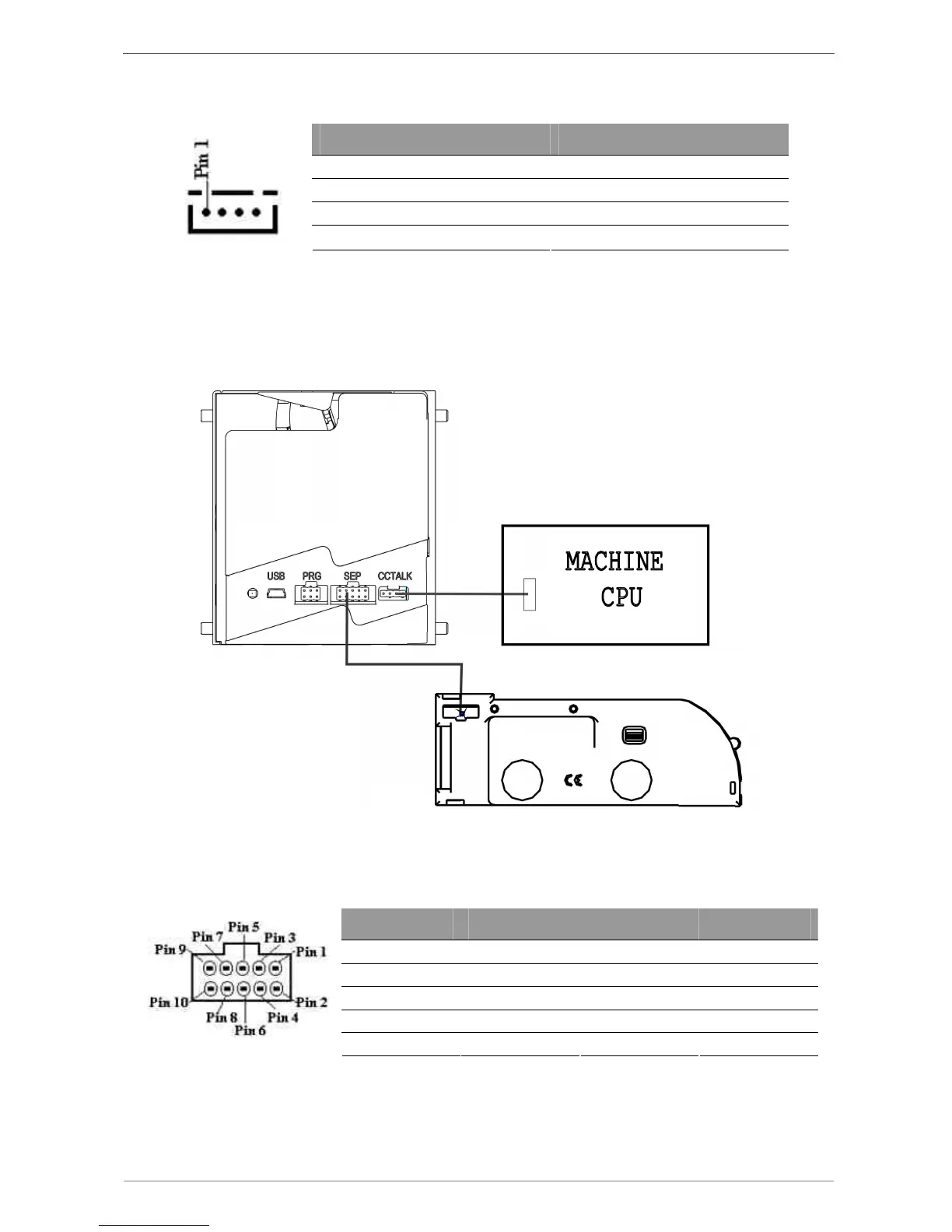

B. Connection of the cc Talk version with separator (Game Italy and Full)
In presence of a separator, connect the RM5 HD coin mechanism to the machine
CPU by means of the (CN2) ccTalk connector and to the separator by means of (CN1)
“SEP” connector, as shown below.
Fig. 10
Below is the pin numbering for the interested connector:
Pin number
Meaning
1 Gnd. 6 Inhibition
2 +12-24Vdc 7 -
3 B1 8 -
4 B2 9 -
5 B3 10 -
C. Connection of the parallel validator version
Connect the parallel validator version of the RM5 HD coin mechanism to the machine
CPU by means of the (CN1) “SEP” connector as shown below.
