RM5 HD – Operating Manual
20
Below is the pin numbering for the interested connector :
Pin number
Meaning
1 Gnd. 6 Inhibition
2 +Vcc 7 CH 1
3 B 1 The·warra
nty·is·void·and·null·if·the·purchaser·is·insolvent·in·paying·the·established·
4 B 2 9 CH 3
5 B 3 10 CH 4
E. Connection of the Totalizer version

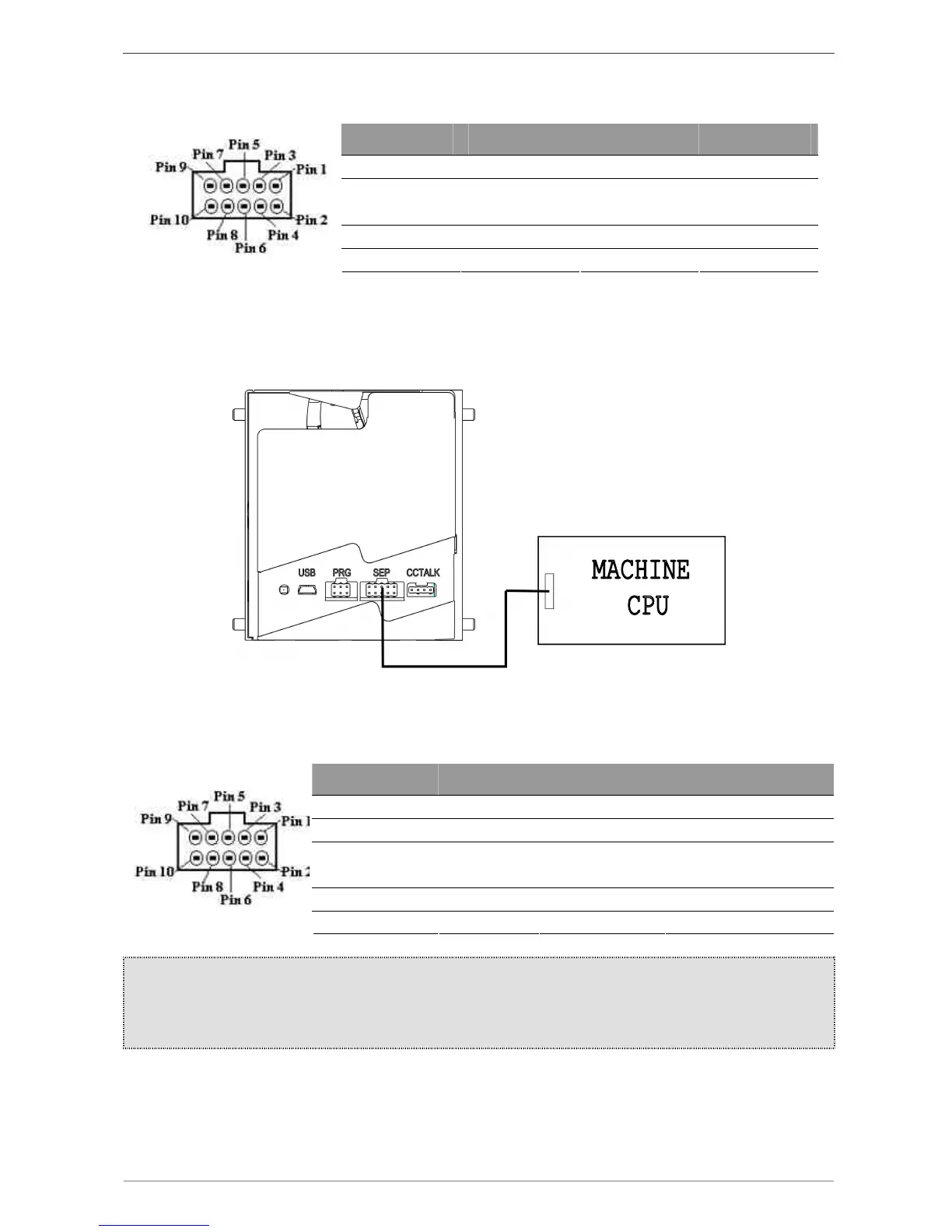

Connect the totalizer version of the RM5 HD coin mechanism to the machine CPU by
means of the (CN1) “SEP” connector as shown below.
Fig. 13
Below is the pin numbering for the interested connector :
Pin number Meaning Pin number Meaning
1 Gnd 6 Inhibition
2 +Vcc 7 -
3 - 8
CM coin counter
(default)
4 - 9 CR credit (default)
5 - 10 -
Note:
Both the coin counter and the credit can be redirected to any pin chosen by the user from 7
to 10.
Standard factory settings are those set as Default.
F. Connection of the Totalizer version with separator
In presence of a separator, connect the RM5 HD coin mechanism to the machine
CPU by means of (CN1) “SEP” connector, then connect the separator to the machine
CPU.
