5. Installation
5.1 Installation
A. Mechanical configurations
RM5 HD is available in two versions.
• Version A, optimised for Euro, accepts coins with a maximum diameter of 27 mm.
and a maximum thickness of 2,4 mm.
• Version B, accepts coins with a maximum diameter of 31,5 mm and a maximum
thickness of 3,4 mm.
Each of these two versions is available in four different models in order to meet any
installation requirement.
Model Coin inlet Coin refusal
F Upper or front Front
V Upper Front
B Upper or front Lower/front
G Upper Lower/rear

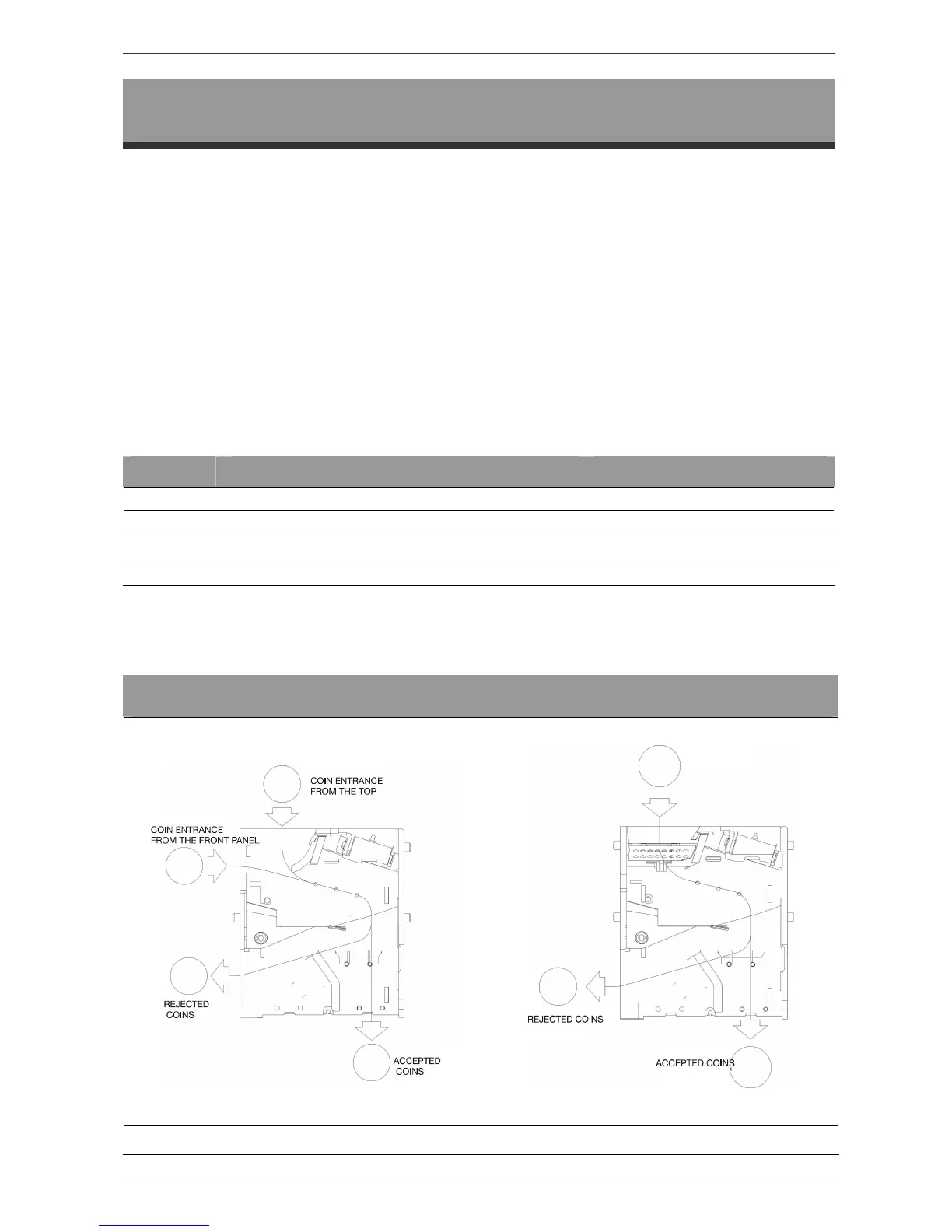

The figures in the page that follows show the different coin travel paths in the four
models.
Available coin validator versions
COIN ENTRANCE
Version F Version V
