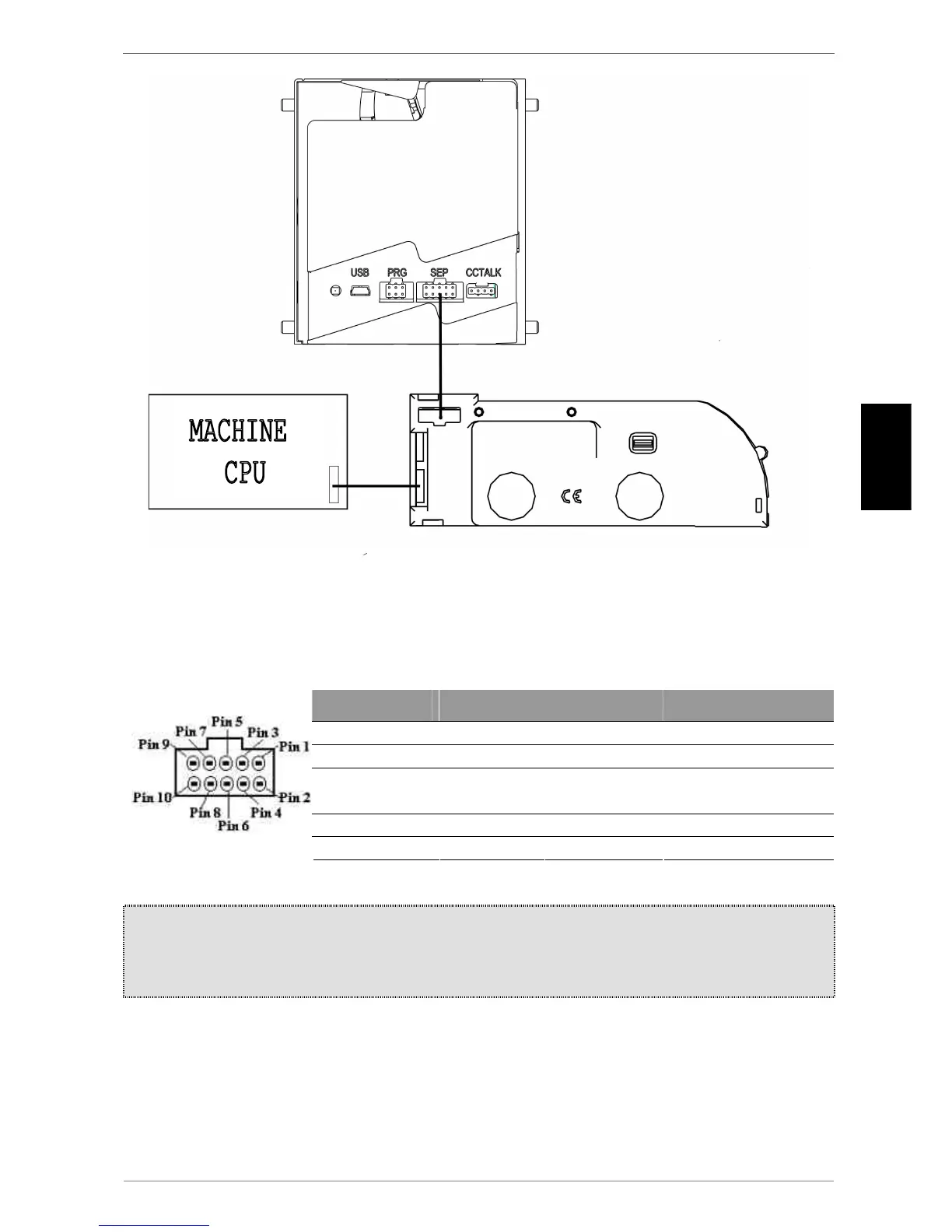

Fig. 14
Below is the pin numbering for the interested connector :
Pin number Meaning Pin number
Meaning
1 Gnd 6 Inhibition
2 +Vcc 7 -
3 - 8
CM coin counter
(default)
4 - 9 CR credit (default)
5 - 10 -
Note:
Both the coin counter and the credit can be redirected to any pin chosen by the user from 7
to 10.
Standard factory settings are those set as Default.
G. Connection of the Virtual Dip Switch
Each RM5 HD electronic coin mechanism, whatever its configuration, has an
implemented serial output for the connection of the Virtual Dip Switch, which allows a
basic configuration of the coin mechanism (see Chapter 6).
