Commax DRC-481L - Wiring Method Selection; Choosing 4-wire or 8-wire Common Method

- 26-
12. Wiring Method Selection
✽ P - Building (Management) PIN - E - 6 - E - 4 - E: 4-wire Common Method (12-wire common)
✽ P - Building (Management) PIN - E - 6 - E - 8 - E: 8-wire Common Method
✽ Video images from the Main Entrance cannot be viewed in the Household when the
8-wire Common Method has been selected.

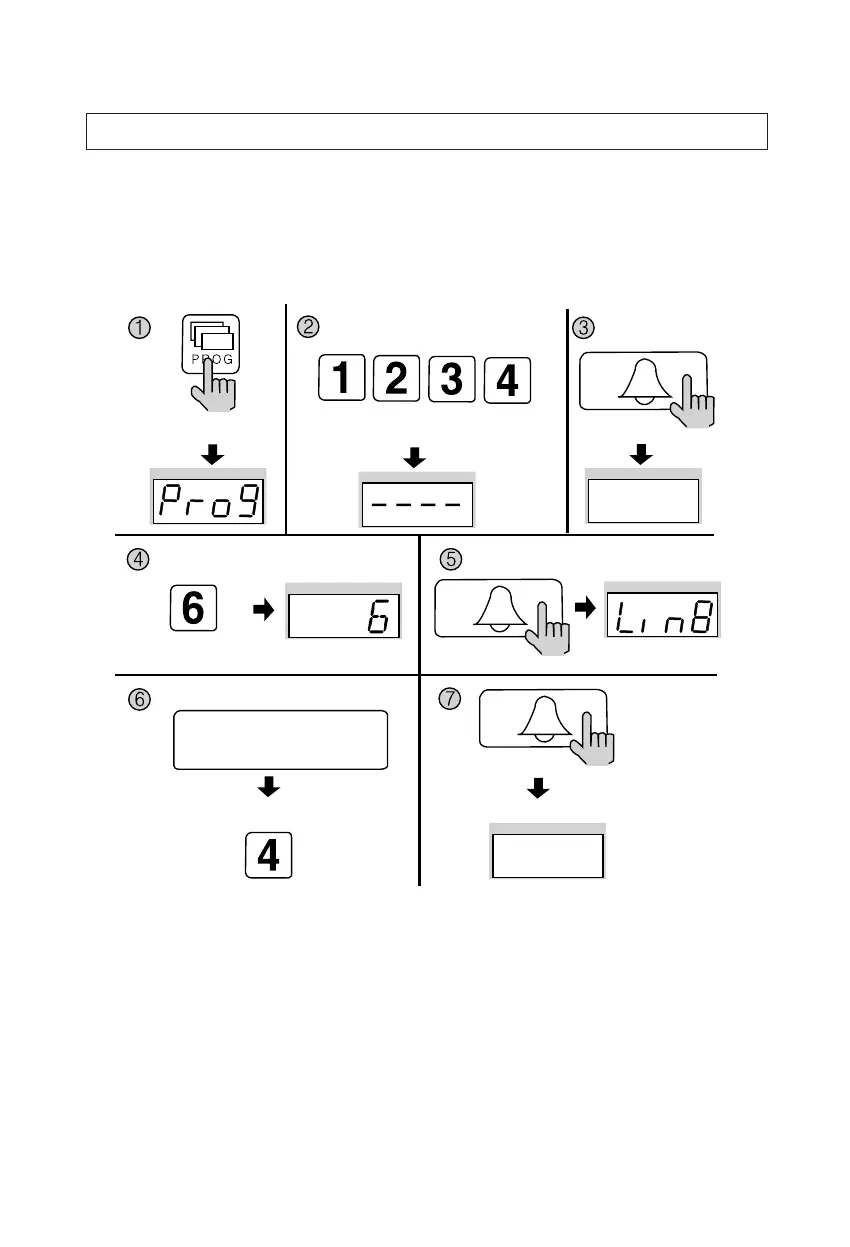

① Press the Program button (P). (‘Prog’will appear)
② Enter the Building (Management) PIN.
③ Press the Call button (E).
④ Press number 6 (Wiring Method Selection).
⑤ Press the Call button (E). (Previous selection is displayed)
⑥ Select a wiring method.
✽ 4: 4-wire Common Method (12-wire common)
✽ 8: 8-wire Common Method
⑦ Press the Call button (E). (Wiring method updated)
Press the Program button (P).
Enter the Building (Management) PIN.
ex) Building PIN
Press the
Call button (E).
The current capacity
is displayed.
Press the
Call button (E).
Press the
Call button (E).
Press the Program Number (6).
Select a wiring method
4: 4-wire Common Method
(12-wire common)
8: 8-wire Common Method
Wiring method updated
ex) Wiring method selected 4- wire commom method
