Commax DRC-481L - Security Interface Adaptor Wiring (ADT-482)

- 45-

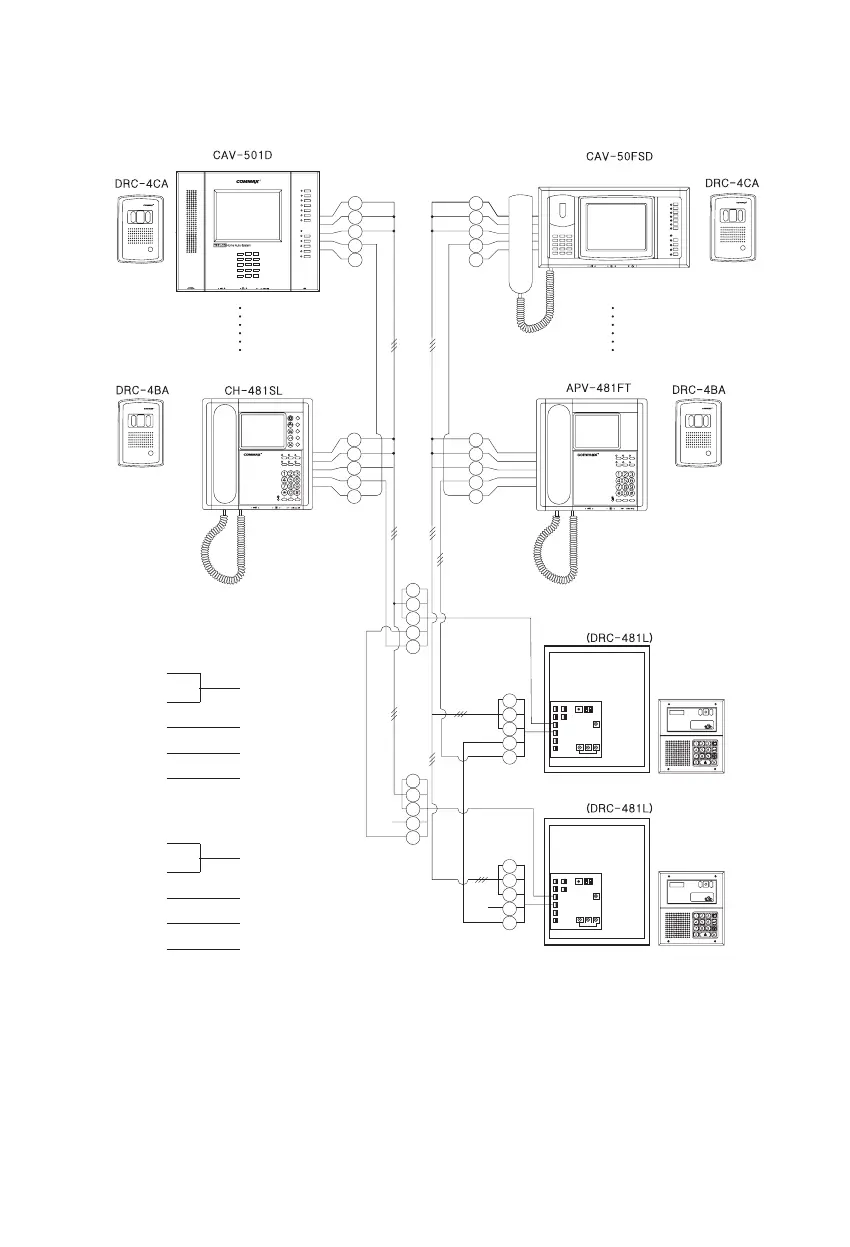

13) Main Entrance Interphone Wiring
※ NOTE
1. Main Entrance System
•Bk
•Br
•R
•Or
•Y
CALL
GND
VD/IN
VD/OUT
2. Household Videophone
•Bk
•Br
•R
•Or
•Y
CALL
GND
VD/IN
VD/OUT
3. If the Guardhouse Interphone (CDS-481L) has been installed, Number 7 (Data) and 8 (GND)
connected to it must be connected to the Household Interphone.
4. Use coaxial cables (3C2V or 5C2V) for Video Out.
Bk
Br
R
Or
Y
Bk
Br
R
Or
Y
Bk
Br
R
Or
Y
Bk
Br
R
Or
Y
Bk
Br
R
Or
Y
Bk
Br
R
Or
Y
Bk
Br
R
Or
Y
Bk
Br
R
Or
Y
Bk: Black
Br: Brown
R: Red
Or: Orange
Y: Yellow
G: Green
B: Blue
Pu: Purple
G: Gray
W: White
Camera 1
Camera 2
