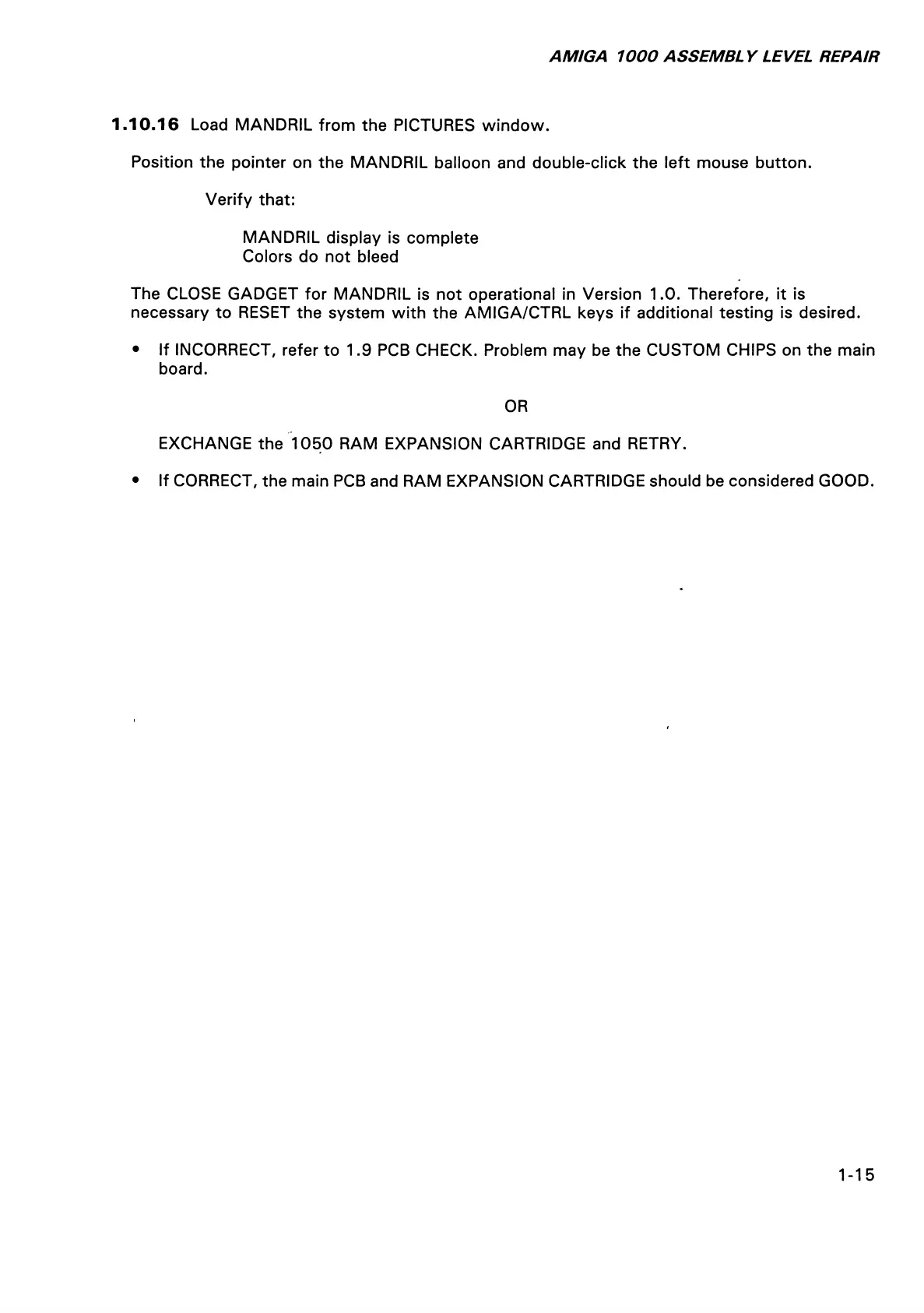

AMIGA 1000 ASSEMBLY LEVEL REPAIR
1.10.16 Load MANDRIL from the PICTURES window.
Position the pointer on the MANDRIL balloon and double-click the left mouse button.
Verify that:
MANDRIL display is complete
Colors do not bleed
The CLOSE GADGET for MANDRIL is not operational in Version 1.0. Therefore, it is
necessary to RESET the system with the AMIGA/CTRL keys if additional testing is desired.
• If INCORRECT, refer to 1.9 PCB CHECK. Problem may be the CUSTOM CHIPS on the main
board.
OR
EXCHANGE the 1050 RAM EXPANSION CARTRIDGE and RETRY.
• If CORRECT, the main PCB and RAM EXPANSION CARTRIDGE should be considered GOOD.
