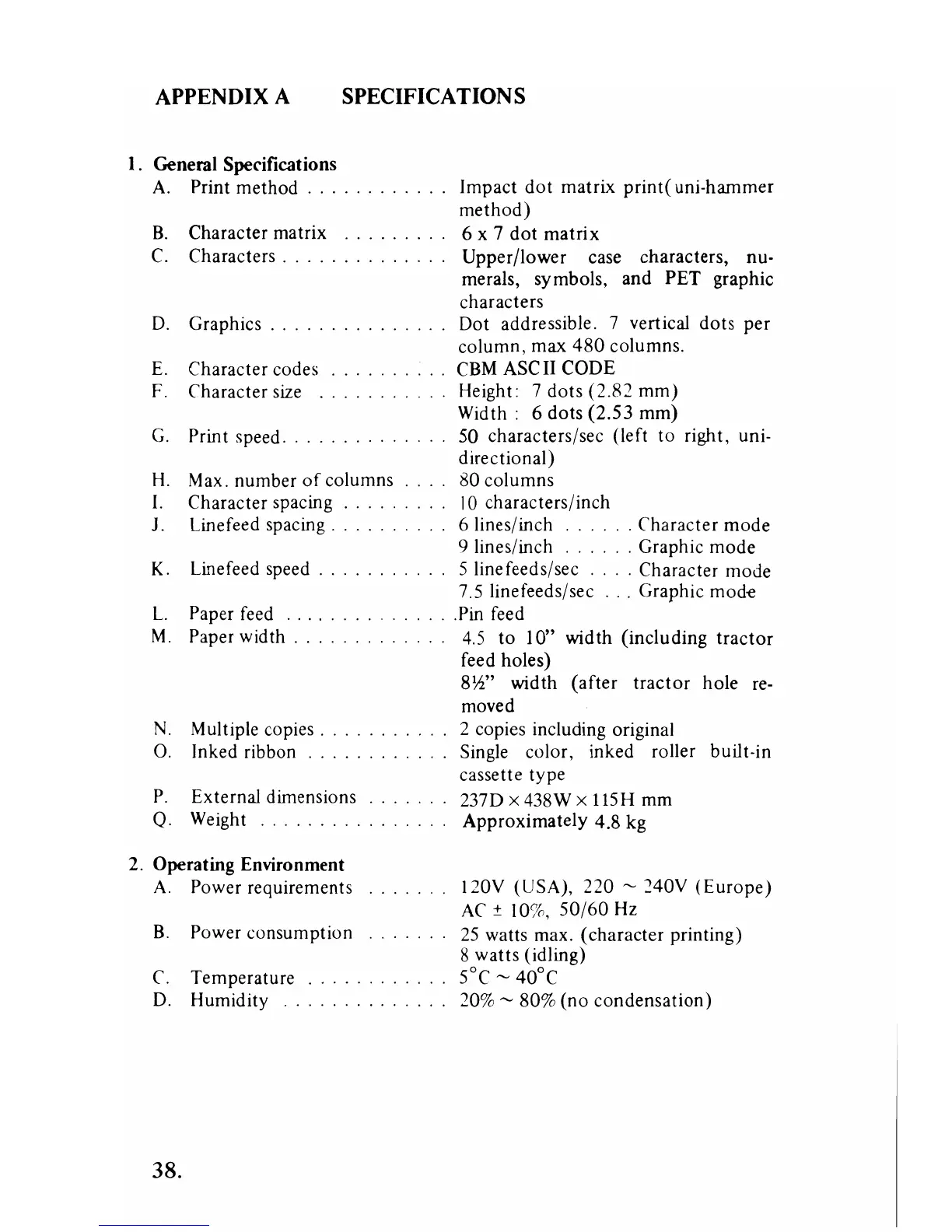

APPENDIX A
SPECIFICATIONS
1. General Spedfications
A.
Print method . . . . . . . . . . . . Impact
dot
matrix print( uni·hammer
method)
B.
Character matrix
.........
6 x 7
dot
matrix
C.
Characters..............
Upper/lower case characters,
nu·
merals, symbols, and PET graphic
characters
O.
Graphics...............
Dot addressible. 7 vertical dots per
column, max
480
columns.
E.
Character codes . . . . . . . . . .
CBM
ASC II CODE
F. Character size
...........
Height: 7 dots (2.82
mm)
Width:
6 dots
(2.53
mm)
G.
Print speed. . . . . . . . . . . . . . 50 characters/sec (left
to
right, uni·
directional)
H.
Max. number
of
columns
....
80 columns
1.
Character spacing . . . . . . .
..
10
characters/inch
J. Linefeed spacing
..........
6 lines/inch
......
Character
mode
9 lines/inch
......
Graphic mode
K.
Linefeed
speed.
. . . . . . . . . . 5 line feeds/sec
....
Character mode
7.5 linefeeds/sec
...
Graphic
mod-e
L. Paper feed
...............
Pin feed
M.
Paper
width.
. . . . . . . . . .
..
4.5
to
10"
width (including
tractor
feed holes)
872"
width (after
tractor
hole
re-
moved
N.
Multiple copies
...........
2 copies including original
O.
Inked ribbon . . . . . . . . . . . . Single color, inked roller built·in
cassette type
P.
External dimensions . . . . . . .
2370
x 438W x 115H mm
Q. Weight
................
Approximately 4.8 kg
2. Operating Environment
A. Power requirements
B.
Power consumption
C.
Temperature
...........
.
O.
Humidity
.............
.
38.
nov (USA), 220 - 240V
(Europe)
AC
±
10%,
50/60
Hz
25
watts max. (character printing)
8 watts (idling)
5°C - 40°C
20% - 80%
(no
condensation)
