Community R-Series Installation/Operation Manual for Models R.5 and R.25 — Page 31
Cable
70V/100V Selector Switch
Version
Black White Pos. 1 Pos. 2 Pos. 3 Pos. 4
8 ohm Models Negative Positive N/A
“T” Models 70V Negative Positive 200W 100W 50W 25W
“T” Models 100V Negative Positive N/A 200W 100W 50W

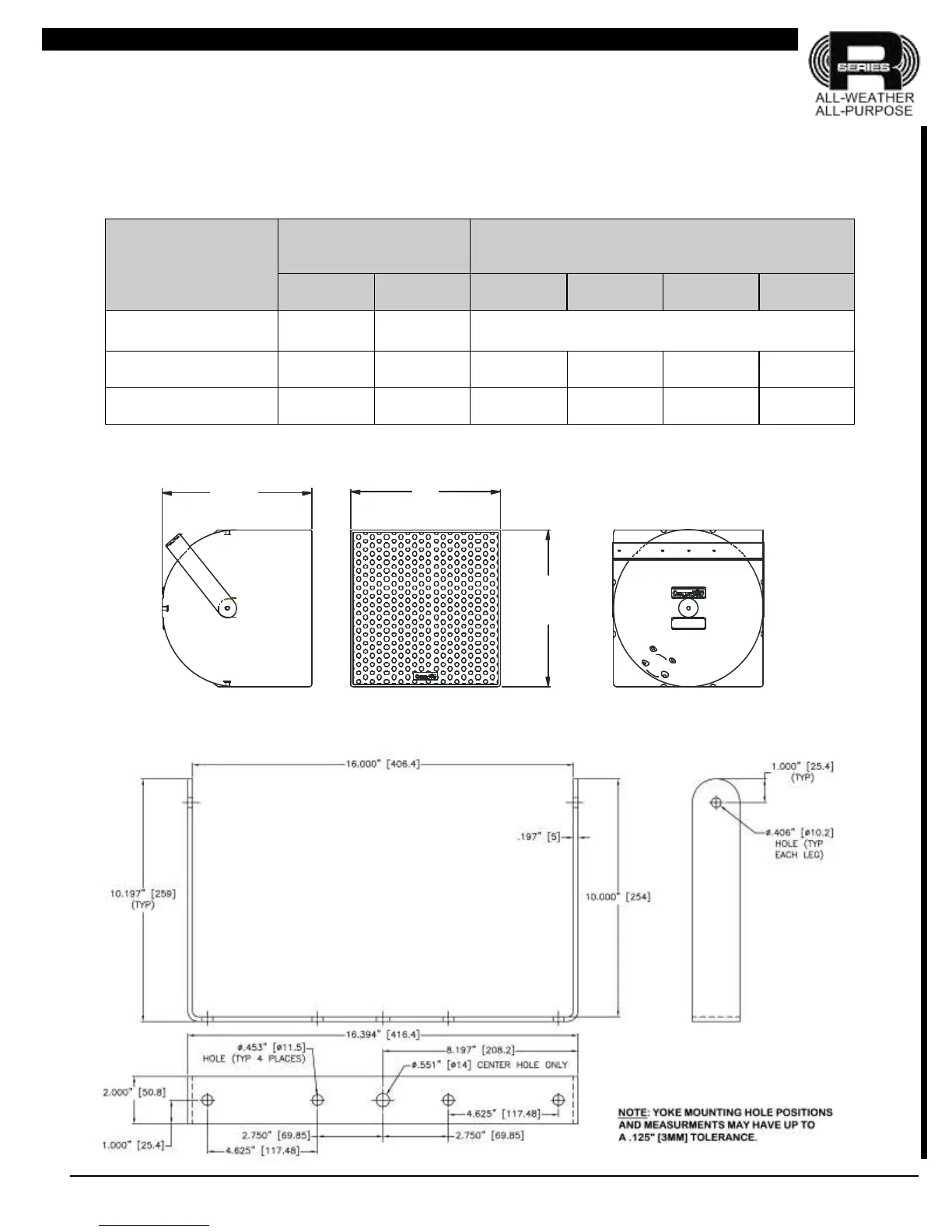

R.5COAX Input Connection Guide
16"
(406.4mm)
16"
(406.4mm)
15.94"
(404.88mm)
SIDE VIEW FRONT VIEW REAR VIEW
R.5COAX Dimensions
R.5COAX SPECIFICATIONS*
R.5COAX Yoke Mounting Bracket (included)
