Community R-Series Installation/Operation Manual for Models R.5 and R.25 — Page 8
NO. FEATURE DESCRIPTION
1
Mounting/Rigging
Points
Five integral M8 (8mm) threaded mounting points on the sides and the back of
the R.25 mate with the yoke bracket.
2 Grille
22-gauge perforated stainless steel grille backed by a foam sheet and stainless
steel mesh (100 x 100 wires/sq in).
3 Input Cable
Attached 16 Gauge SJOW cable, approximately 12 feet (4m) long, rated for
outdoor use. On 8-ohm versions the white conductor is positive (+) and the
black is negative (-). See “Specifications” for T-Version connection guide.
4 Mounting Yoke
R.5 and R.25 models include an attached Mounting Yoke. R.5 models include a
Multi-Angle Aiming Strap. R.25 models do not include this strap.
5 Pole Socket
R.25 models have a 1-3/8" pole mount socket on the bottom. Remove the
plastic plug to use the pole mount socket.
6
Input Tap
Selection Switch
Input tap selection switch concealed behind plug cap with 5mm Allen Wrench
fitting. Plug cap not to be confused with adjacent black rubber cap on mounting/
rigging point. Rotary switch operated with a flat-head #1 common screw driver
and “clicks” for each tap.
R.25 QUICK START - FEATURES
F E AT U R E S O F T HE R . 2 5

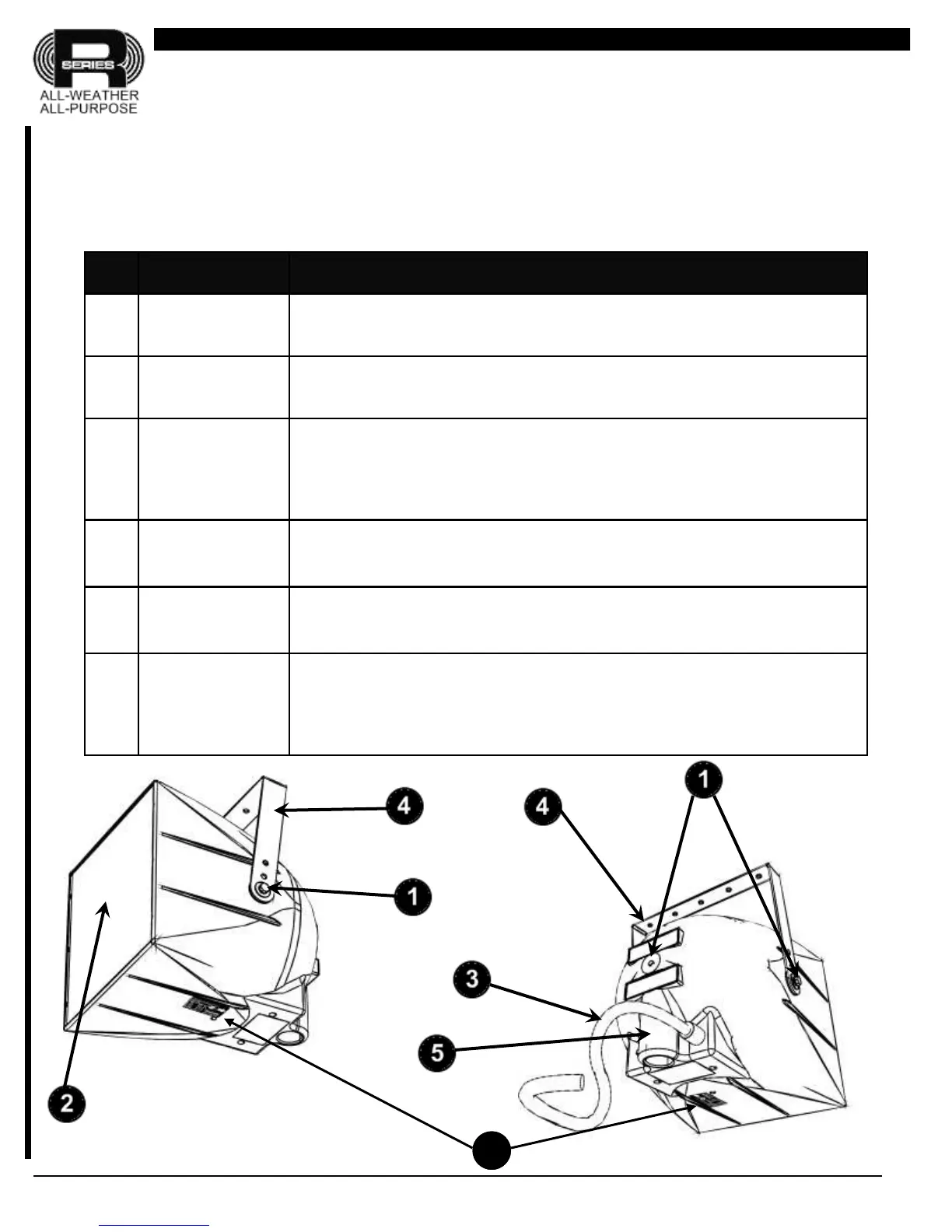

Figure 1: Physical Features of Typical R.25 Models
6
