Community R-Series Installation/Operation Manual for Models R.5 and R.25 — Page 9
F E AT U R E S O F T HE R . 5

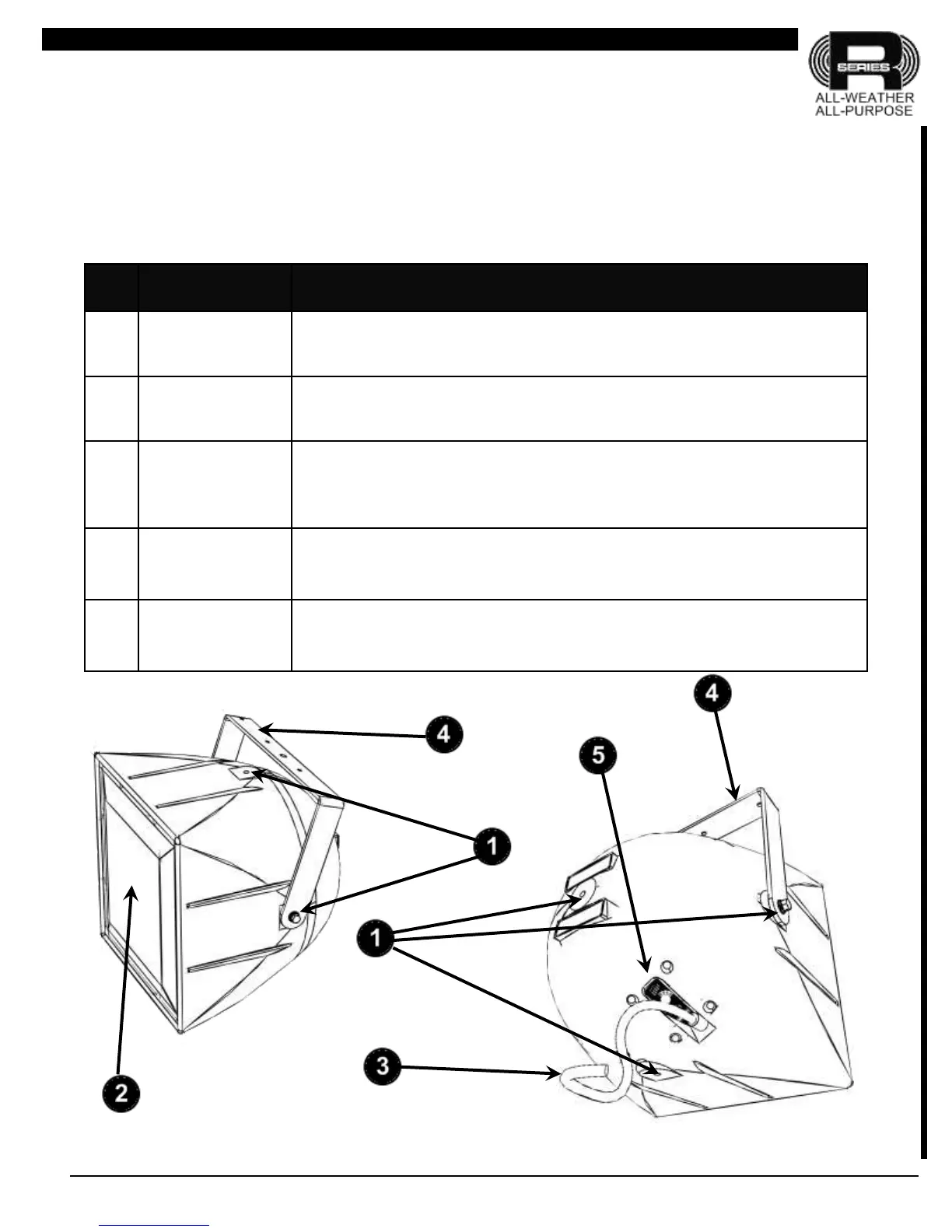

Figure 2: Physical Features of Typical R.5 Models
(R.5Z, R.5HP, R.5COAX and R.5SUB models)
NO. FEATURE DESCRIPTION
1
Mounting/Rigging
Points
Five integral 3/8-16 threaded mounting points on the sides and the back of the
R.5 mate with the yoke bracket or aiming strap.
2 Grille
20-gauge perforated stainless steel grille backed by a foam sheet and stainless
steel mesh (100 x 100 wires/sq in). (R.5HP models have a 14-gauge grille)
3 Input Cable
Attached 16-gauge SJOW cable, approximately 12 feet (4m) long, rated for
outdoor use. On 8-ohm versions the white conductor is positive (+) and the
black is negative (-). See “Specifications” for T-Version connection guide.
4 Mounting Yoke
R.5 and R.25 models include an attached Mounting Yoke. R.5 models include a
Multi-Angle Aiming Strap. R.25 models do not include this strap.
5
Input Tap
Selection Switch
Input tap selection switch concealed behind plastic hex screw (11mm, 7 /16”).
Rotary switch operated with a flat-head #7 screw driver.
R.5 QUICK START - FEATURES
Note: R.5 models do not include a pole mount socket.
