Community R.5 - R.5 Z Input Connection Guide; R.5 Z Dimensions; R.5 Z Yoke Mounting Bracket (included)

Community R-Series Installation/Operation Manual for Models R.5 and R.25 — Page 35
16"
(406.4mm)
16"
(406.4mm)
15.94"
(404.88mm)
SIDE VIEW FRONT VIEW REAR VIEW
R.5Z SPECIFICATIONS*
R.5Z Input Connection Guide

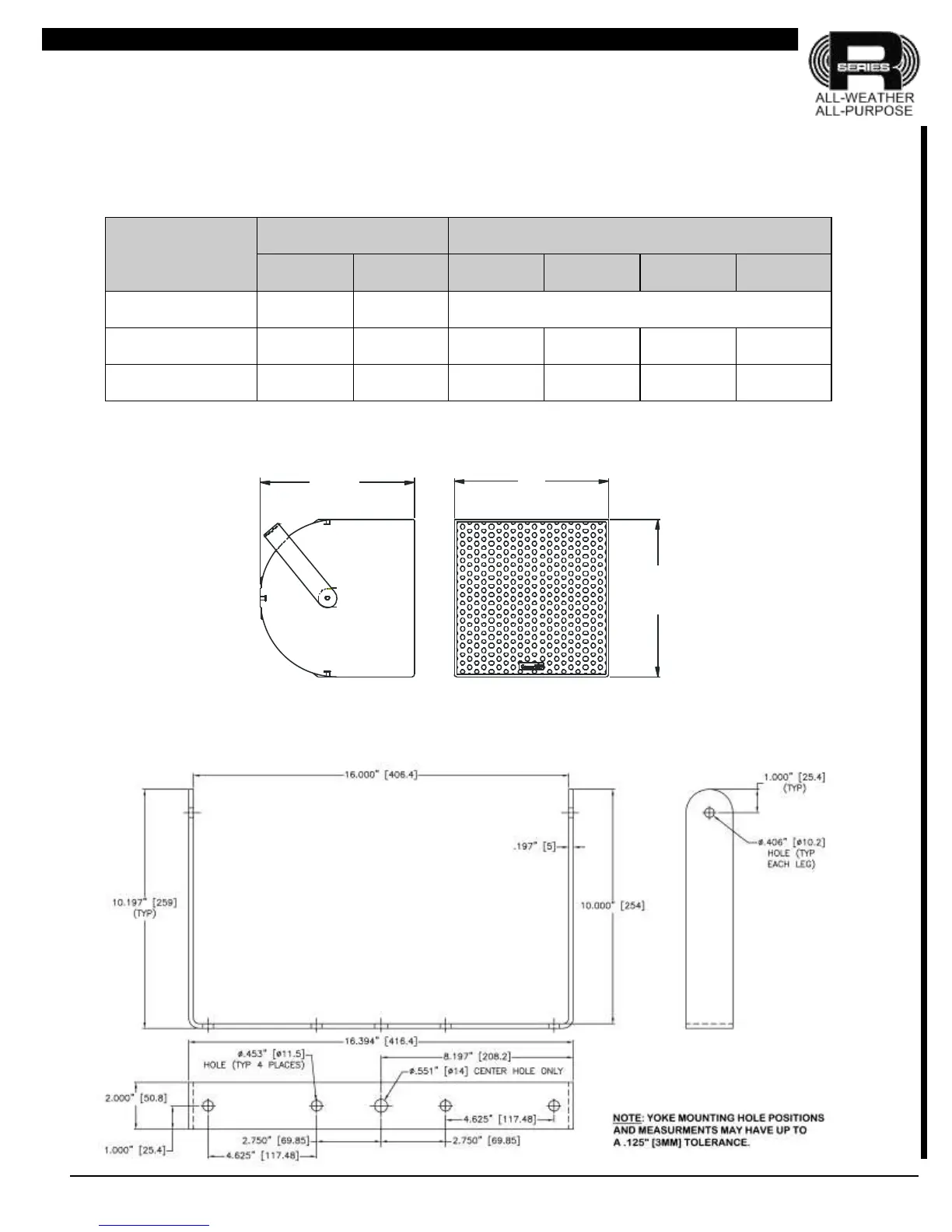

R.5Z Dimensions
R.5Z Yoke Mounting Bracket (included)
Cable 70V/100V Selector Switch
Version
Black White Pos. 1 Pos. 2 Pos. 3 Pos. 4
R.5-xxZ (8 ohm) Negative Positive N/A
R.5-xxTZ, 70V Negative Positive 200W 100W 50W 25W
R.5-xxTZ (100V) Negative Positive N/A 200W 100W 50W
