Community R.5 - R.5 SUB Input Connection Guide; R.5 SUB Dimensions; R.5 SUB Yoke Mounting Bracket (included)

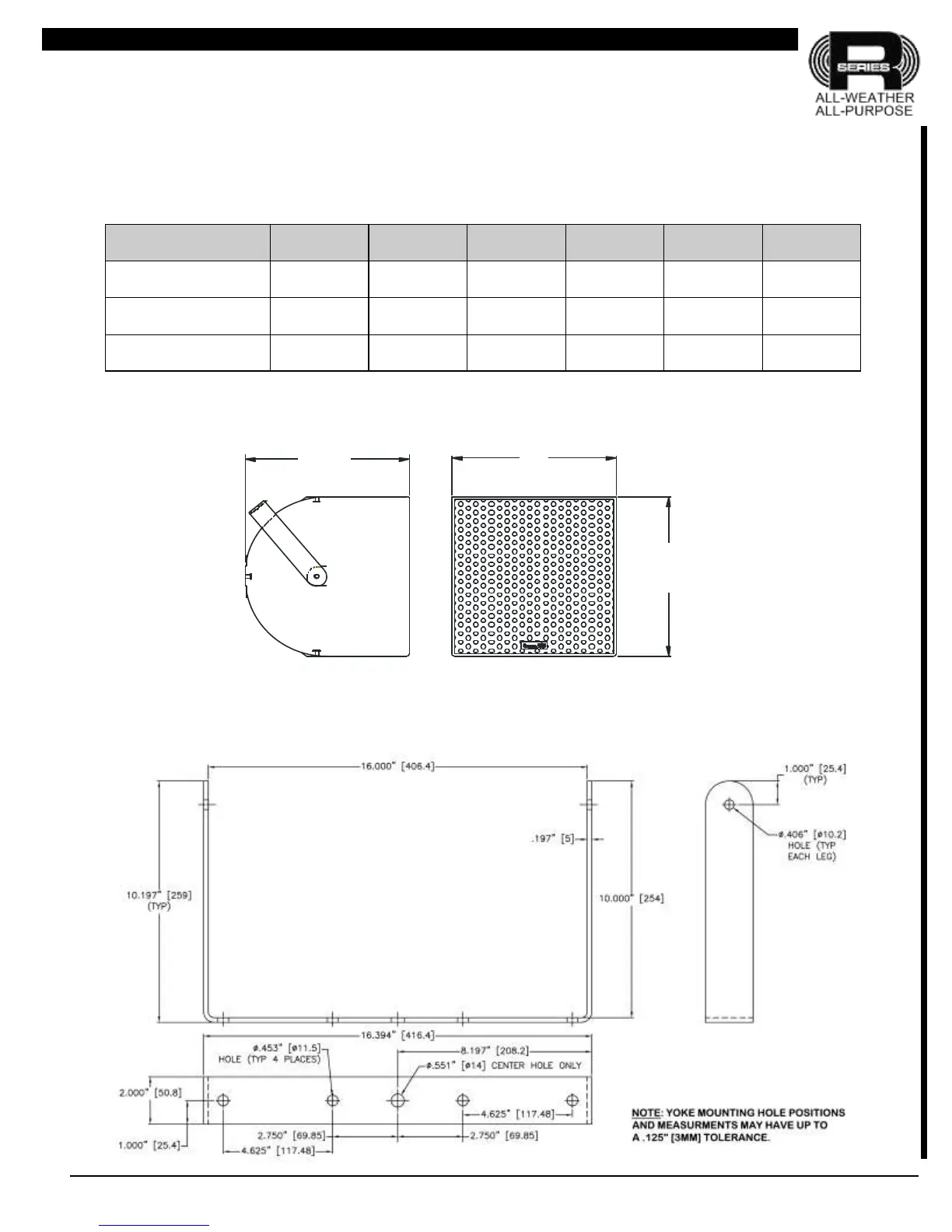

Community R-Series Installation/Operation Manual for Models R.5 and R.25 — Page 37
Version Black White Brown Orange Yellow Red
R.5SUB Negative Positive N/A N/A N/A N/A
R.5SUB-T 70V Negative N/A 200W 100W 50W 25W
R.5 SUB-T 100V Negative N/A N/A 200W 100W 50W
16"
(406.4mm)
16"
(406.4mm)
15.94"
(404.88mm)
SIDE VIEW FRONT VIEW REAR VIEW
R.5SUB SPECIFICATIONS*
R.5SUB Input Connection Guide
R.5SUB Dimensions
R.5SUB Yoke Mounting Bracket (included)
