4. Design and functioning
20

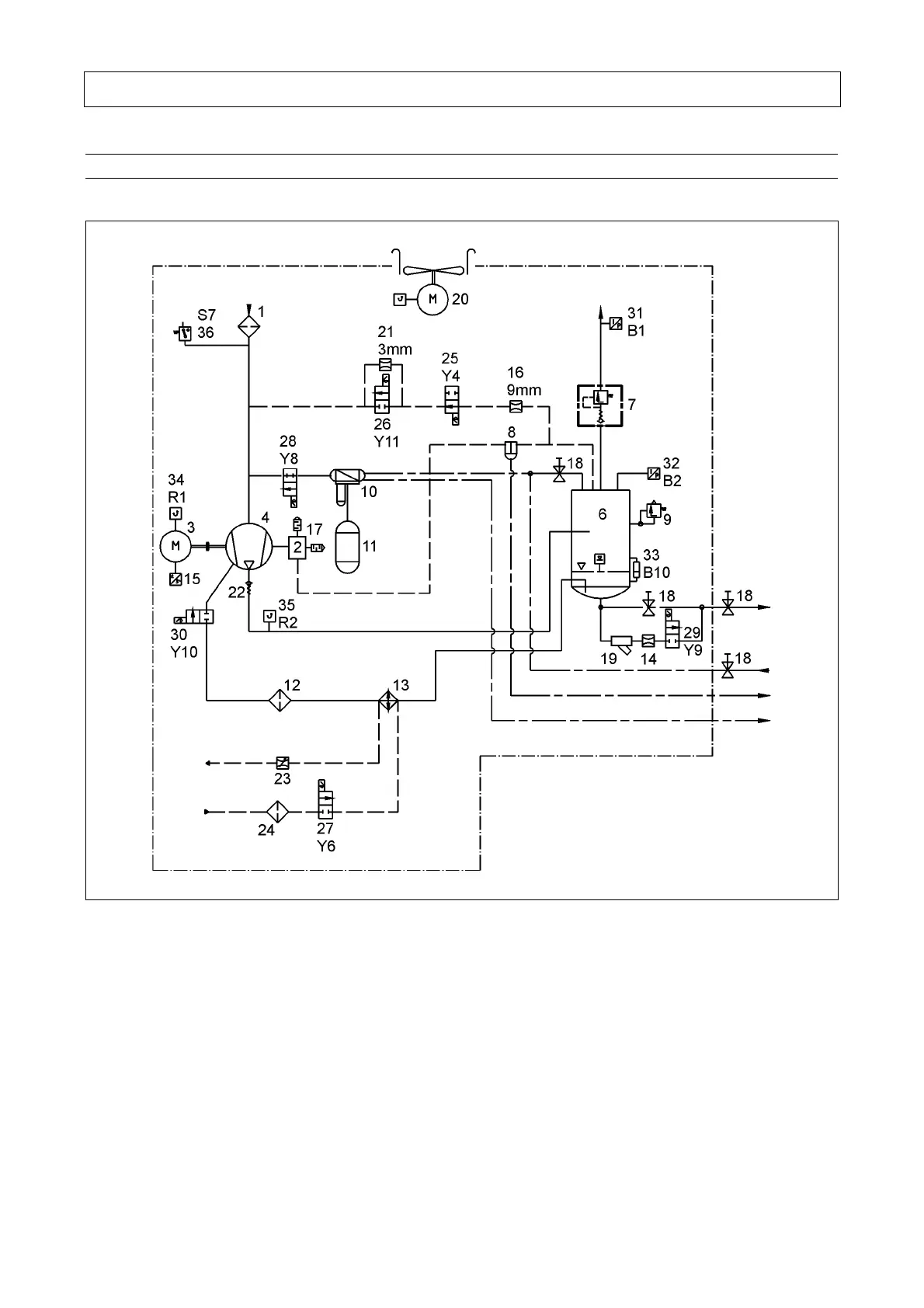

4.2 Schematic diagram
4.2.1 Schematic diagram - D110H RS
Fig. 5
1. Intake filter
2. Vacuum generator
3. Electric motor
4. Compressor block
6. Pressure reservoir
7. Pressure holding valve
8. Water cutter
9. Safety valve
10. Osmosis unit
11. Water reservoir
12. Water filter
13. Water cooler
14. Throttle
15. RS inverter
16. Blow-off line orifice
17. Silencer
18. Manual valve
19. Mud flap
20. Ventilator
21. Nozzle
22. Non-return valve
23. Choke valve, adjustable
24. Dirt trap
25. Blow-off valve (Y4)
26. Bypass valve (Y11)
27. Cooling-water solenoid valve (Y6)
28. Solenoid valve (water in) (Y8)
29. Solenoid valve (water out) (Y9)
30. Solenoid valve (water stop) (Y10)
31. Network pressure sensor (B1)
32. Final compression pressure
sensor (B2)
33. Water level sensor (B10)
34. Motor temperature (R1)
35. Compressor temperature (R2)
36. Differential pressure air filter (S7)
