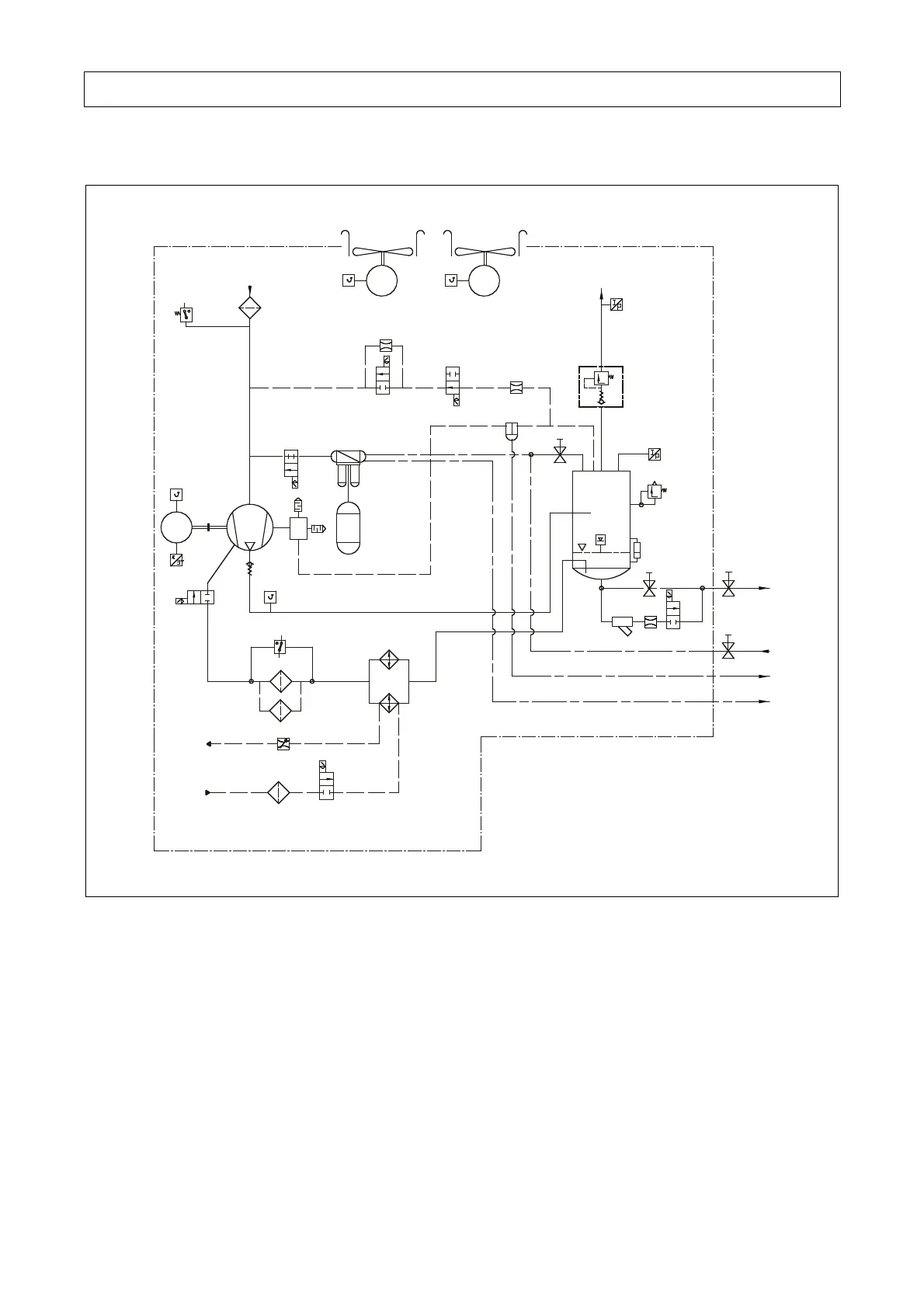

4.2.2 Schematic diagram - D50H RS - D75H RS
S7
36
1
20 21
5
M
M
Y11
26
Y8
28
Y4
25
R1
34
3
4
10
17
11
8
16
18
6
7
B1
31
B2
32
9
18 18
18
Y9
29
19
B10
33
13
12
23
24
Y6
27
15
Y10
30
22
R2
35
2
M
14
S17
37
Fig. 6
1. Intake filter
2. Vacuum generator
3. Electric motor
4. Compressor block
5. Nozzle
6. Pressure reservoir
7. Pressure holding valve
8. Water cutter
9. Safety valve
10. Osmosis unit
11. Water reservoir
12. Water filter
13. Water cooler
14. Throttle
15. RS inverter
16. Blow-off line orifice
17. Silencer
18. Manual valve
19. Mud flap
20. Ventilator 1 (all versions)
21. Ventilator 2 (only air-cooled
version)
22.Non-return valve
23. Choke valve, adjustable
24. Dirt trap
25. Blow-off valve (Y4)
26. Bypass valve (Y11)
27. Cooling-water solenoid valve (Y6)
28. Solenoid valve (water in) (Y8)
29. Solenoid valve (water out) (Y9)
30. Solenoid valve (water stop) (Y10)
31. Network pressure sensor (B1)
32. Final compression pressure
sensor (B2)
33. Water level sensor (B10)
34. Motor temperature (R1)
35. Compressor temperature (R2)
36. Differential pressure air filter (S7)
37. Differential pressure water filter
(S17)
