CompAir L07 User Manual

4. Design and functioning
20
4 Design and fun ctioning
4.1 Design of the unit
4.1.1 Design of the unit L07-L11

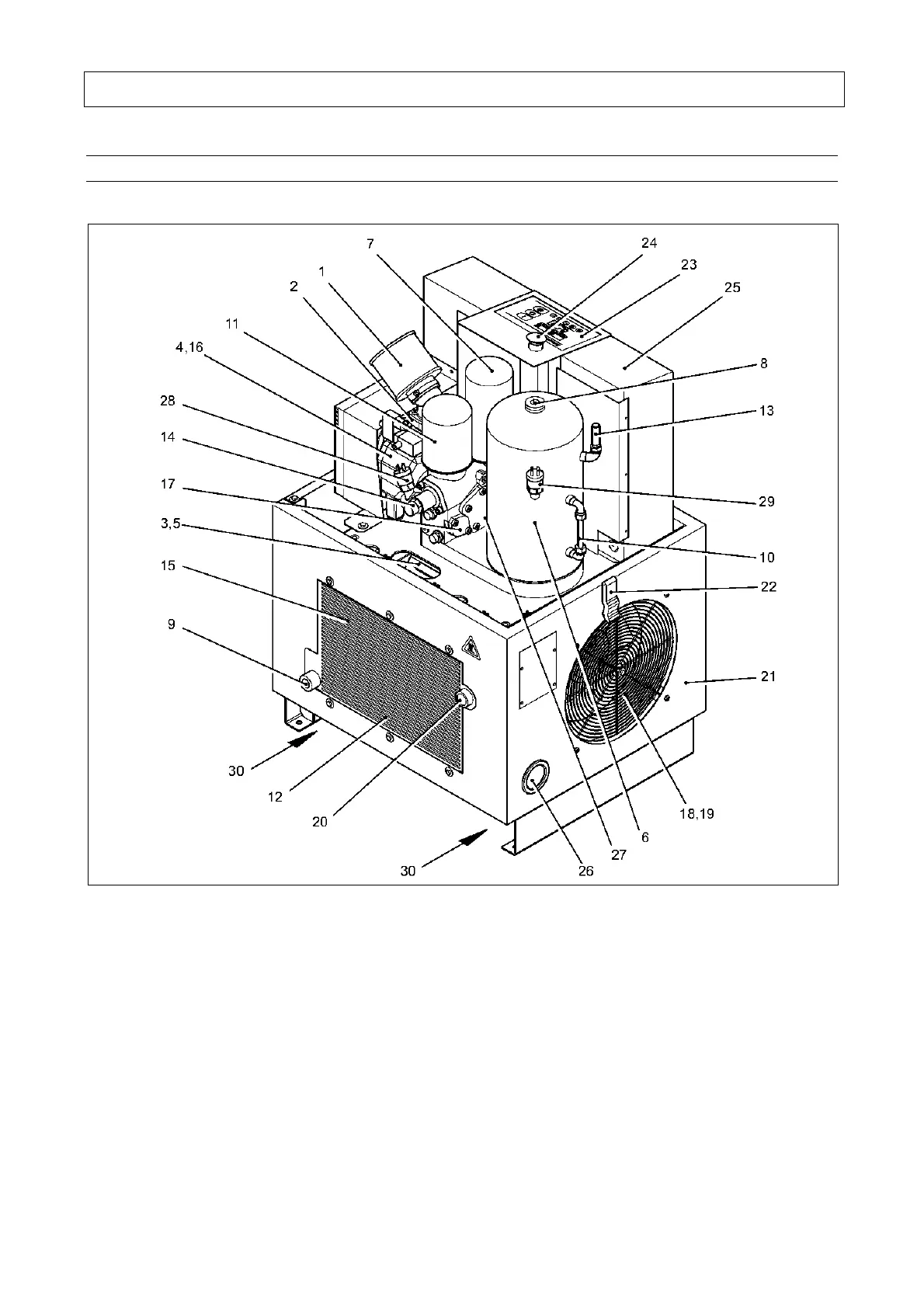

Fig. 3a L07-L11
1
Intake filter
2
Intake regulator
3
Electric motor
4
Screw compressor
5
Belt drive
6
Pressure reservoir
7
Oil fine separator
8
Oil filling port
9
Oil drain
10
Oil level indicator
11
Oil filter
12
Oil cooler
13
Safety valve
14
Pressure holding and check valve
15
Air cooler
16
Oil fine separator extractor
17
Oil temperature regulator
18
Cooling air ventilator
19
Cooling air inlet filter mat
20
Compressed air outlet
21
Base frame
22
Lock hood
23
Control keypad
24
EMERGENCY OFF push-button
25
Control cabinet
26
Supply cable gland
27
Final compression temperature
sensor
28
Network pressure sensor
29
Final compression pressure
sensor
30
Opening for lifting gear
