Compak E5 - Grind Adjustment System and Portafilter Detector

13
K09657H02 | PROC-CAL/002/03 USER MANUAL | V. 11/07/2023

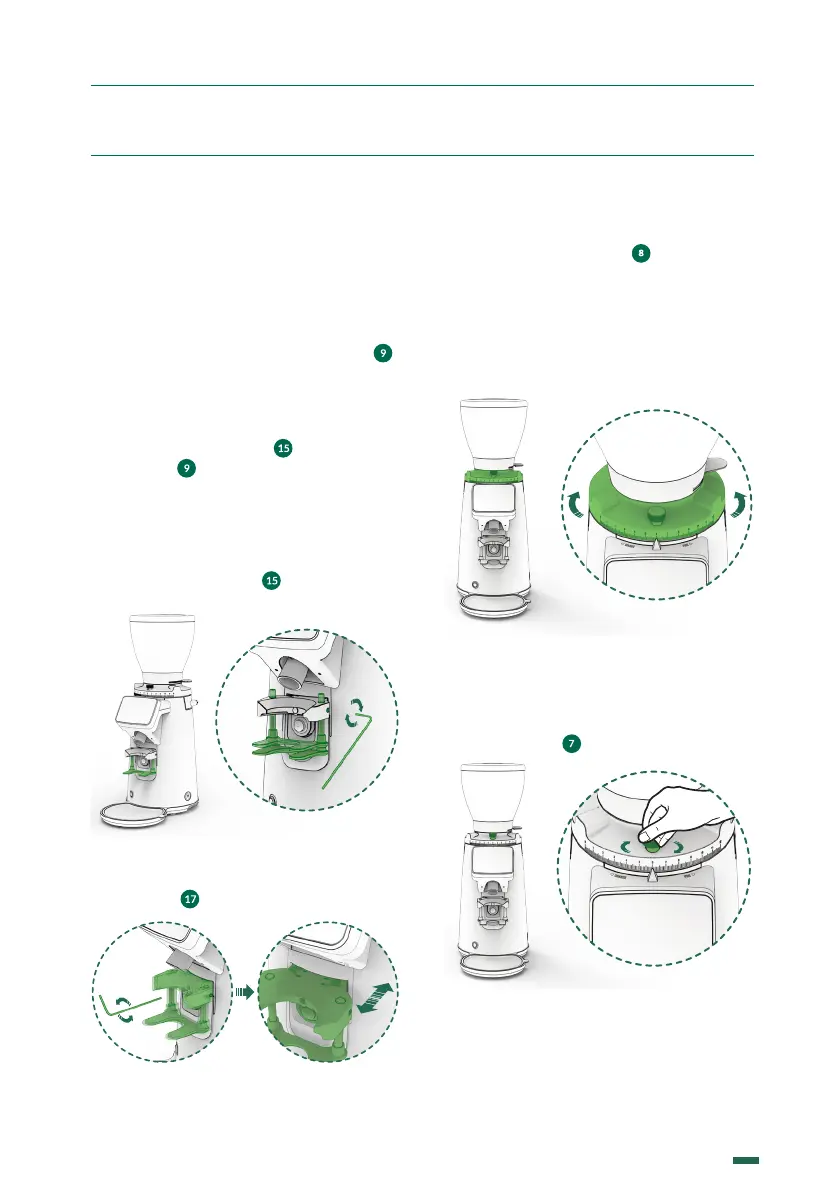

. ADJUSTMENT
.. GRIND ADJUSTMENT SYSTEM
Rotate the grind regulator ( ) until reaching
the grind level desired.
Rotating the grind regulator clockwise will
result in a coarser grind; turning the regulator
counterclockwise will result in a finer grind
(Fig. 8).
Fig. 8
Once you reach the desired grinding point,
you can lock the grinding regulator using the
regulator brake. ( ) (Fig. 9).
Fig. 9
.. ADJUSTING THE LOWER
PORTAFILTER SUPPORT
In order to ensure the proper distribution
of ground coee in the portafilter, while
supporting the portafilter in a hands-free
position during dosing, it is possible to adjust
the height of the lower portafilter support ( ),
also adjust forward and backwards the position
of the portafilter respect the coee exit chute.
To do this adjustment operation:
1. Loosen the screw ( ) on the lower
support ( ) by using the #3 Hex Allen
key included with your grinder.
2. Adjust the support to the desired
height using the portafilter as the point of
reference.
3. Tighten the screw ( ) with the #3 Hex
Allen key provided (Fig. 5).
Fig. 5
4. With the #3 Hex Allen key provided tighten
or untighten the screw located infront the
portafilter ( ) to find the right spot.
Fig. 6 Fig. 7
